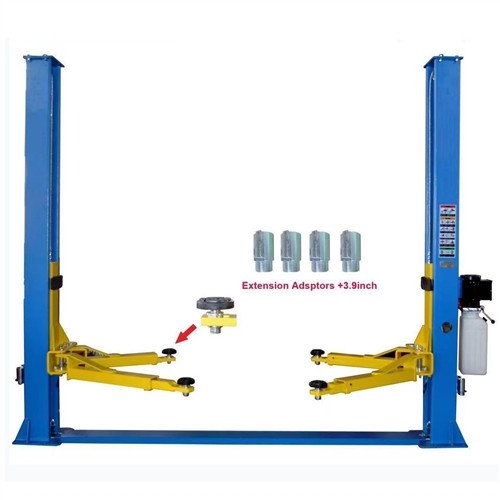

Katool KT-H105 Symmetric 2 Post Floor Plate Car Lift 10,000 Lbs – Blue

Model: KT-H105

Key Specifications

10000 lbs

Capacity

Sec

Rise Time

220VAC / 60HZ / 1PH / 2.2KW

Power

70.75”

Max Rise

🔧 Professional installation available — find a certified installer near you

$2099.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

140.4”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

5.9”

Depth @ 3000 PSI

Min. Ceiling

110.9”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

76

/100

The Verdict:

The Katool KT-H105 is a 10,000-lb baseplate two-post lift that punches well above its price — and at just 110.9 inches overall it fits low-ceiling garages that can’t take an overhead lift. It rises 70.8 inches for full stand-up undercarriage work, clears 98.4 inches of drive-through, and runs on a 220V single-phase, 2.2 kW power unit. Symmetric arms and a floor-level cross-member make it a genuinely practical home-shop lift. For a slightly different width and drive-through, compare the KT-H100; for a stronger 4 HP motor, the AK-H105.

  • Who Should Buy It:
  • Home and hobbyist shops that want a full 10,000-lb two-post on a budget
  • Garages with low ceilings (the 110.9″ height is a real advantage)
  • DIYers doing brakes, suspension, and exhaust who need full undercarriage access
  • Who Should Skip It:
  • Commercial shops that require ALI/third-party certification
  • Anyone who can’t run a 220V circuit to the lift
  • ⚠️ Lab Note:
At 110.9 inches overall it clears most residential garages, but still measure your ceiling against the lift plus the vehicle you’ll raise.

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

A 220V single-phase, 2.2 kW electric-hydraulic power unit drives both carriages via equalized cables run across the floor in the baseplate design — which is what keeps overall height down to 110.9 inches.

Safety Lock System

Automatic mechanical safety locks catch the carriages at intervals and hold the vehicle on steel stops rather than on hydraulic pressure.

Structural Integrity

Baseplate symmetric two-post rated 10,000 lb: 70.8-inch max lift, just 110.9-inch overall height, 110.2 inches inside the columns, 98.4-inch drive-through, 220V / 2.2 kW power unit.

The "Squeeze" Factor

This is the most critical section for the KT-H105.

DRIVE-THROUGH WIDTH 98.40"
CLEARANCE HEIGHT 111"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 7.2" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Low-ceiling friendly

At 110.9 inches the KT-H105 fits where overhead lifts won’t — still measure your ceiling. It anchors into at least four inches of reinforced, cured concrete on a 220V circuit. Compare two-post options in our best 2-post lifts guide.

KATOOL KT ($2,099) vs. Tuxedo Valor ($2,420)

Save $321.00 with the KATOOL

FeatureKATOOL KTTUXEDO VALOR
Lifting Capacity 10,000 lbs 9,000 lbs
Power 220VAC / 60HZ / 1PH / 2.2KW 220V

The Lab Take:

Both lifts are in a similar category. Your decision should come down to specific features that matter most for your use case.

The KATOOL offers a $321.00 savings while providing comparable specifications.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

10000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

140.4”

Measure from garage door to back wall

Overall Width

140.4”

Fits in standard single car bay

Drive-Through Width

98.4”

Restrictive – tight for wide vehicles

Max Rise Height

70.75”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

5.9” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

3000PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide

Customer Builds

Real installations from real garages

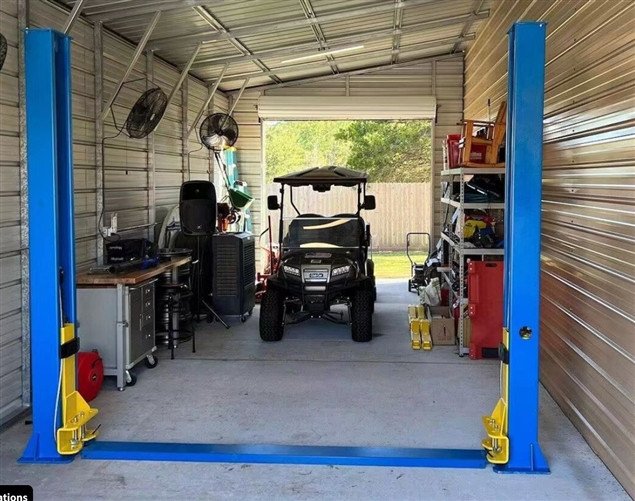

Customer Install #1

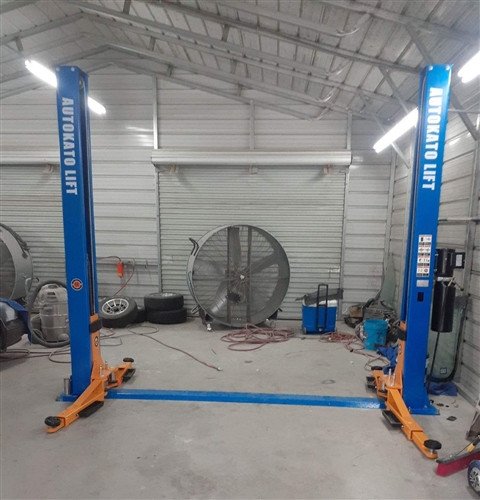

Customer Install #2

Customer Install #3
