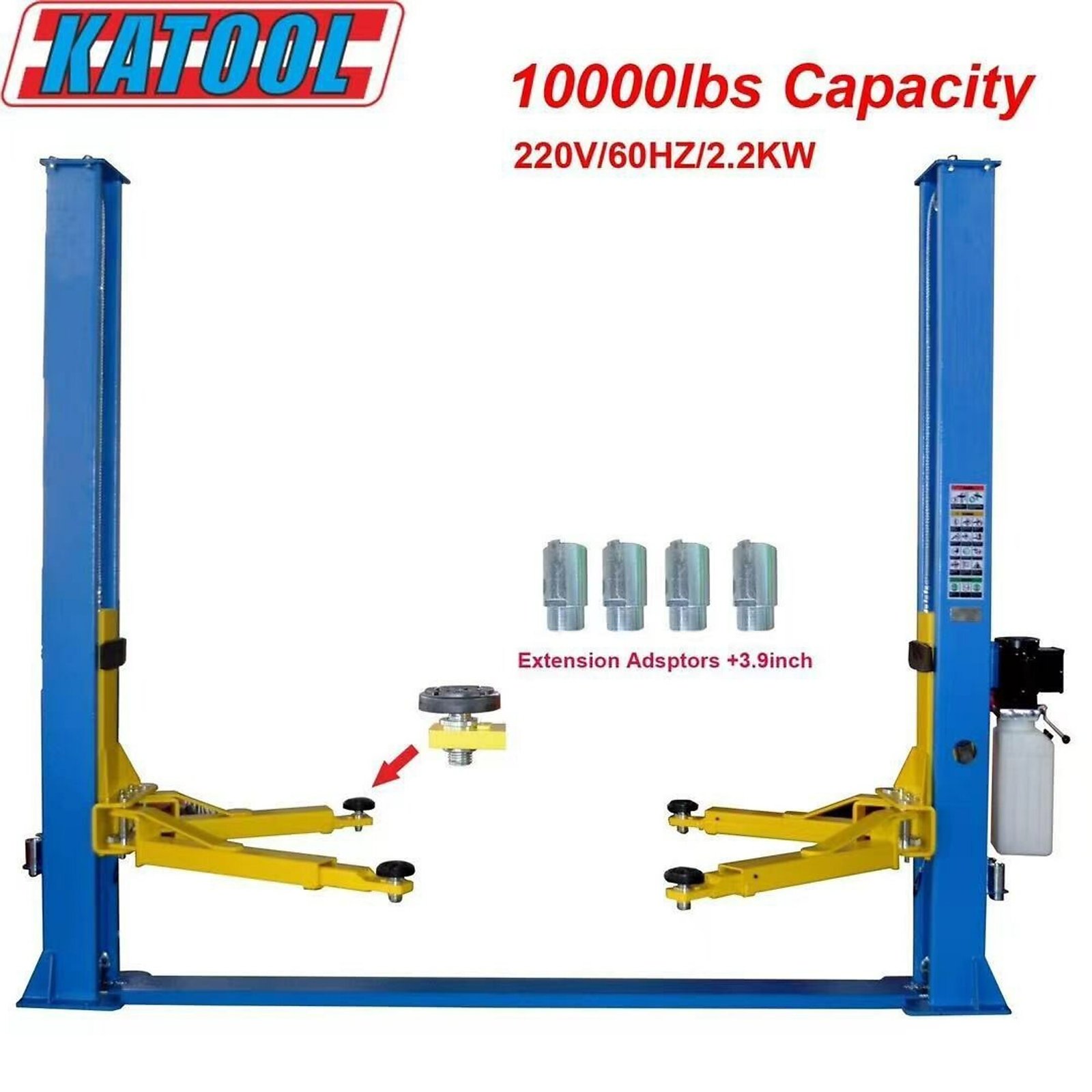

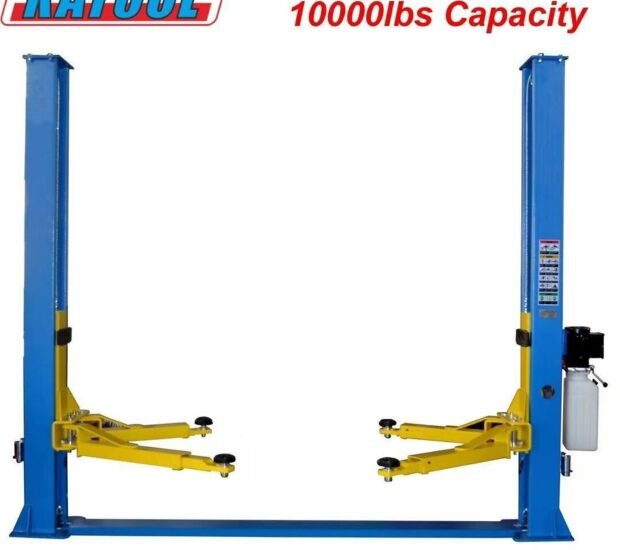

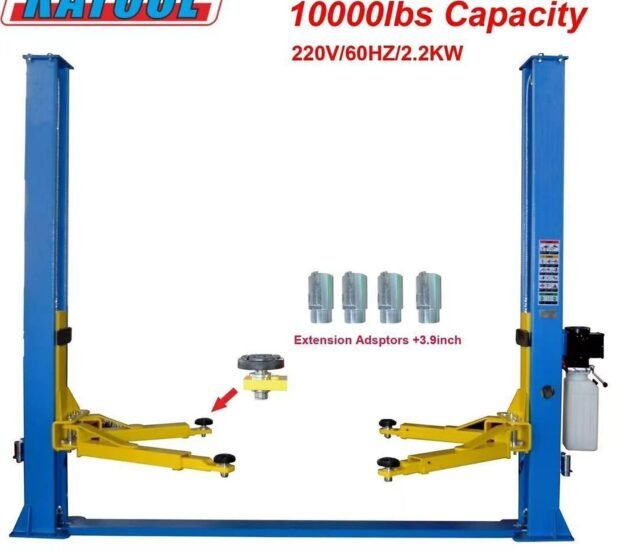

Katool 2-Post Vehicle Lift, 10,000-Lb. Capacity, 4 HP, Model# AK-H105
Model: AK-H105
Key Specifications
10000 lbs
Capacity
Sec
Rise Time
220V
Power
72”
Max Rise
$2699.00
– Ships in 2-3 Business Days
Fitment Check
140.4”
Narrow Bay Compatible
”
Standard Garage Depth
5.9”
Depth @ 3000 PSI
”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
76
/100
The Verdict:
The Katool AK-H105 is a 10,000-lb two-post with the strongest motor in Katool’s H-series — a 4 HP power unit for faster, more consistent lifting than the KT-H100. If you cycle the lift often, the extra motor pays off. It’s import-grade value, priced well under the shop brands. For a low-profile baseplate build, compare the KT-H105.
- Busy home shops that raise and lower the lift frequently
- Buyers who want the strongest Katool motor in a 10,000-lb two-post
- Value-focused DIYers
- Commercial shops requiring ALI certification
- Anyone without a suitable 220V circuit
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time
A 4 HP electric-hydraulic power unit — the strongest in Katool’s 10,000-lb two-post line — drives both carriages on equalized cables for quicker cycles.
Safety Lock System
Automatic mechanical safety locks catch the carriages at intervals and hold the vehicle on steel stops rather than on hydraulic pressure.
Structural Integrity
Two-post lift rated 10,000 lb with a 4 HP power unit, the step-up motor in Katool’s H-series two-post range.
Complete Technical Specifications

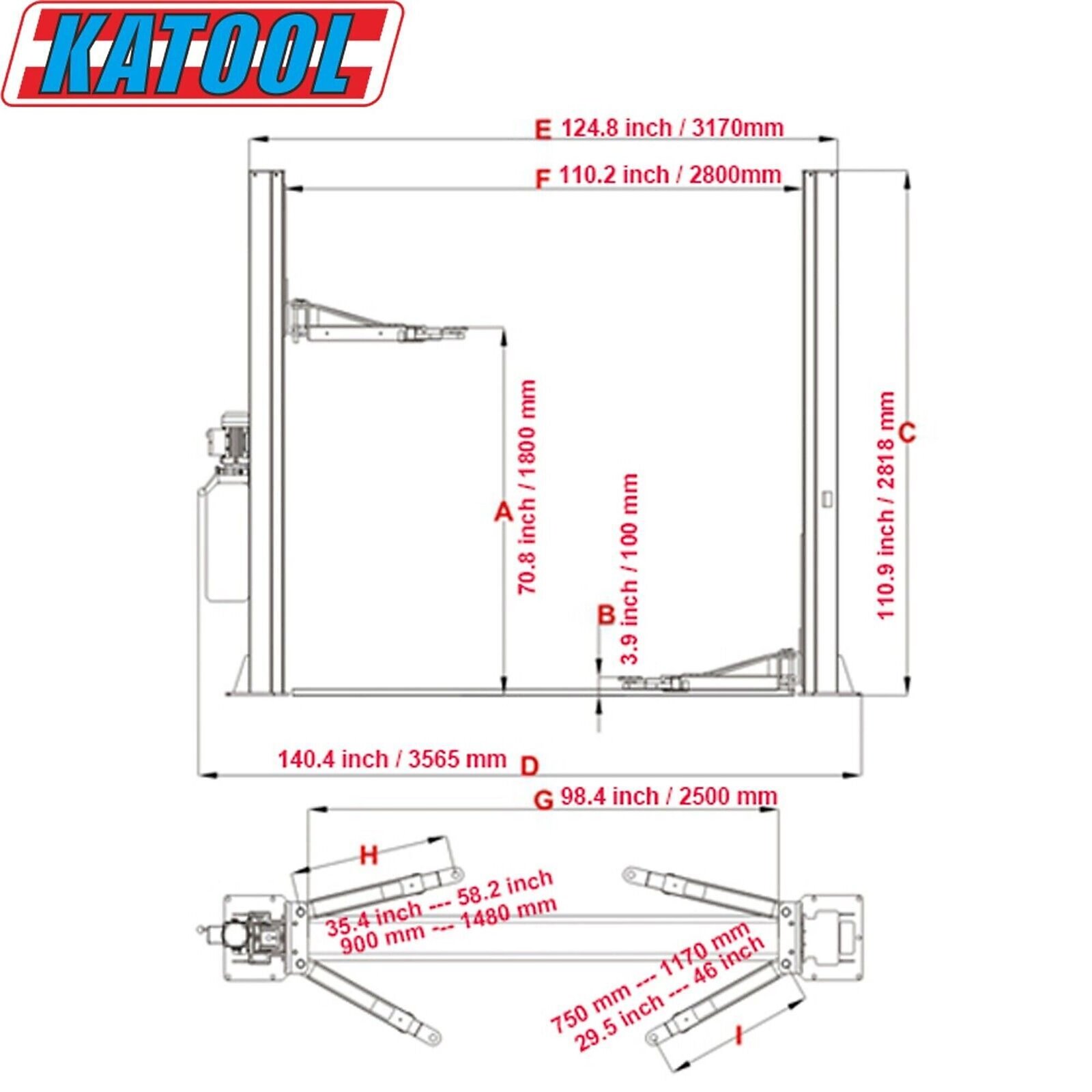

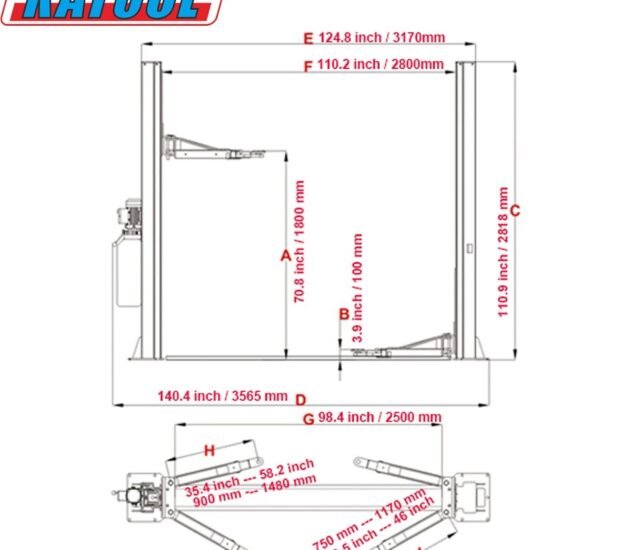

Specification | Value | Note |
|---|---|---|
Lifting Capacity | 10000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 140.4” | Measure from garage door to back wall |
Overall Width | 140.4” | Fits in standard single car bay |
Drive-Through Width | 98.4” | Restrictive – tight for wide vehicles |
Max Rise Height | 72” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 5.9” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
