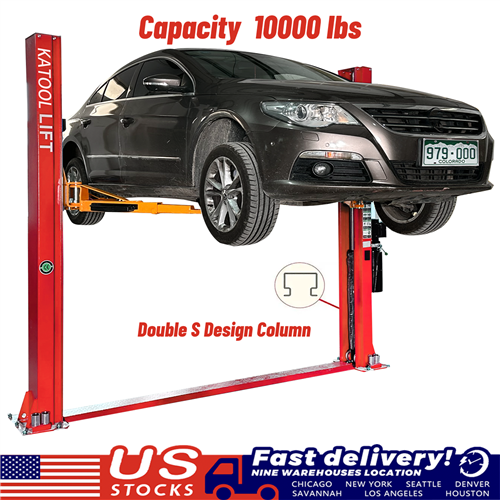

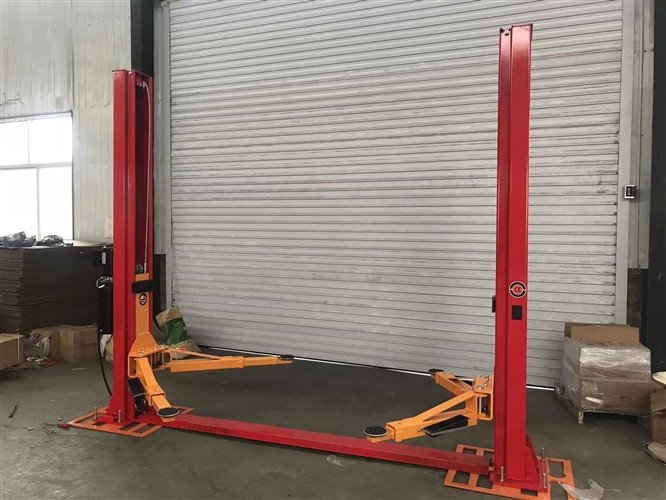

Katool 2-Post Vehicle Lift, 10,000-Lb. Capacity, 3 HP, Model# KT-H100

Model: KT-H100

Key Specifications

10000 lbs

Capacity

Sec

Rise Time

220V

Power

70.75”

Max Rise

🔧 Professional installation available — find a certified installer near you

$2599.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

142.25”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

5.9”

Depth @ 3000 PSI

Min. Ceiling

4.25”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

76

/100

The Verdict:

The Katool KT-H100 is a 10,000-lb low-profile two-post — like its KT-H105 sibling it stands just 110.25 inches overall, so it fits under a low ceiling, but it runs a slightly wider stance (142.25-inch overall width). It rises 70.75 inches on a 220V single-phase, 2.2 kW power unit and clears 94.5 inches of drive-through. Solid import-grade value for a home or budget shop. Want a stronger motor? The AK-H105 steps up to 4 HP.

  • Who Should Buy It:
  • Home shops that want a full 10,000-lb two-post at a low price
  • Low-ceiling garages (110.25″ overall)
  • DIYers who need real stand-up undercarriage access
  • Who Should Skip It:
  • Shops needing ALI/third-party certification
  • Garages without a 220V circuit
  • ⚠️ Lab Note:
The 142.25-inch overall width is a touch wider than the KT-H105 — confirm your bay has the side-to-side room.

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

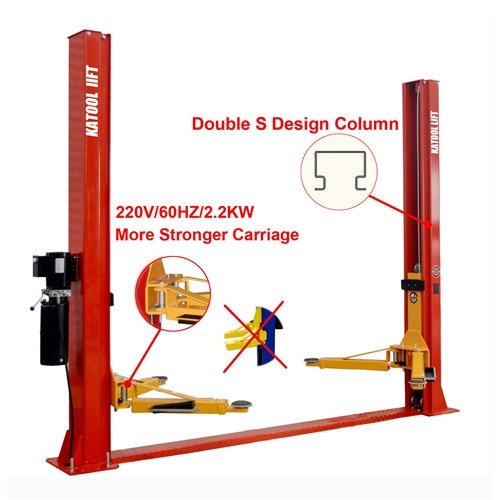

A 220V single-phase, 2.2 kW power unit drives both carriages on equalized cables in a low-profile layout that keeps overall height to 110.25 inches.

Safety Lock System

Automatic mechanical safety locks catch the carriages at intervals and hold the vehicle on steel stops rather than on hydraulic pressure.

Structural Integrity

Low-profile two-post rated 10,000 lb: 70.75-inch max lift, 110.25-inch overall height, 110.25 inches inside the columns, 94.5-inch drive-through, 220V / 2.2 kW.

The "Squeeze" Factor

This is the most critical section for the KT-H100.

DRIVE-THROUGH WIDTH 94.50"
CLEARANCE HEIGHT 4"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 5.2" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Before it arrives

At 110.25 inches it suits lower ceilings — still measure yours — and it anchors into at least four inches of cured concrete. See our best 2-post lifts guide.

KATOOL 2 ($2,599) vs. Tuxedo Valor ($2,625)

Save $26.00 with the KATOOL

FeatureKATOOL 2TUXEDO VALOR
Lifting Capacity 10,000 lbs 9,000 lbs
Power 220V 220V

The Lab Take:

Both lifts are in a similar category. Your decision should come down to specific features that matter most for your use case.

The KATOOL offers a $26.00 savings while providing comparable specifications.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

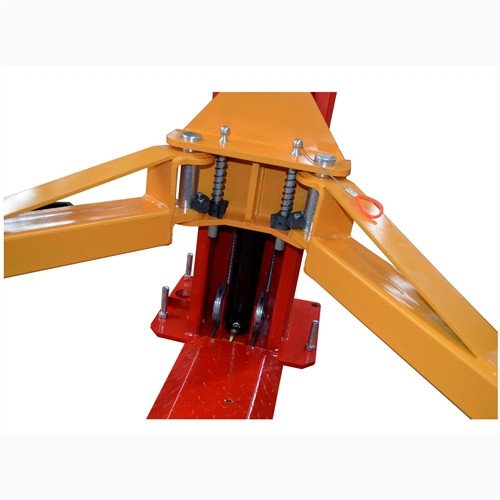

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

10000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

142.25”

Measure from garage door to back wall

Overall Width

142.25”

Fits in standard single car bay

Drive-Through Width

94.5”

Restrictive – tight for wide vehicles

Max Rise Height

70.75”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

5.9” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

3000PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide

Customer Builds

Real installations from real garages

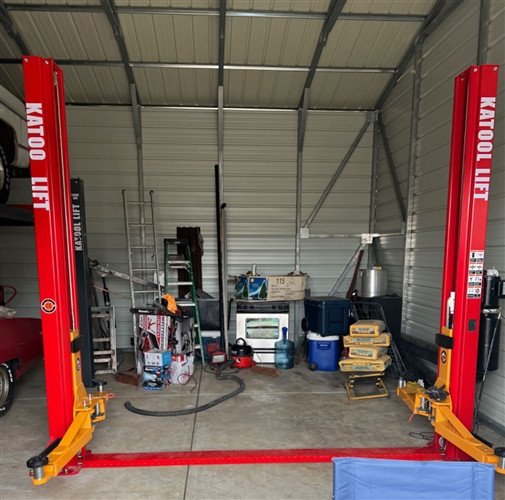

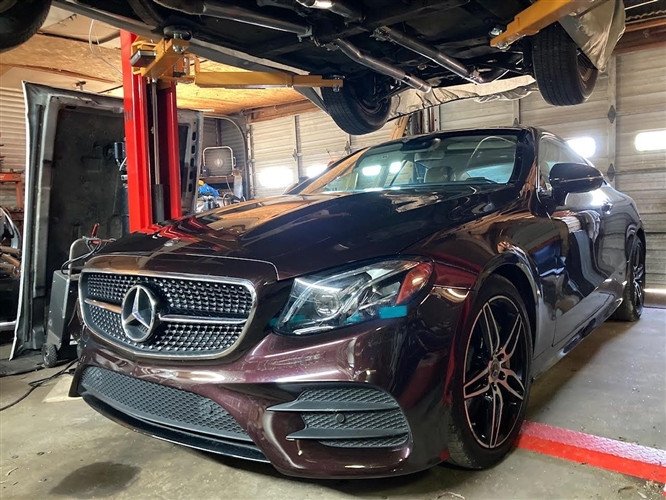

Customer Install #1

Customer Install #2

Customer Install #3
