KATOOL, Full Rise Scissor Lift Capacity 8000lb., Model# KT-X95
Model: KT-X95
Key Specifications
8000 lbs
Capacity
50 Sec
Rise Time
220V
Power
74.8”
Max Rise
$4999.99
– Ships in 2-3 Business Days
Fitment Check
83”
Narrow Bay Compatible
”
Standard Garage Depth
”
Depth @ 3000 PSI
”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
77
/100
The Verdict:
The Katool KT-X95 is an 8,000-lb full-rise scissor lift — it raises the whole vehicle to 72.3 inches for full stand-up undercarriage access, with no columns to work around, and folds away to free up the bay when stored. It reaches full height in under 50 seconds. A space-saving alternative to a two-post at import-grade value. Need only mid-height for brakes and tires? The KT-X85 mid-rise costs less; for a 7,000-lb full-rise, the KT-X99.
- Shops short on floor space that still want full-rise access
- DIYers who want a lift that disappears into the floor when stored
- Alignment and undercarriage work (full 72-inch rise)
- Anyone who needs to remove wheels with the lift arms clear (a two-post suits that better)
- Buyers wanting ALI certification
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time
A 2.2 kW electric-hydraulic power unit raises the scissor mechanism to 72.3 inches in under 50 seconds, with a 24 V safety control circuit and synchronized platforms.
Safety Lock System
Automatic mechanical safety locks catch the carriages at intervals and hold the vehicle on steel stops rather than on hydraulic pressure.
Structural Integrity

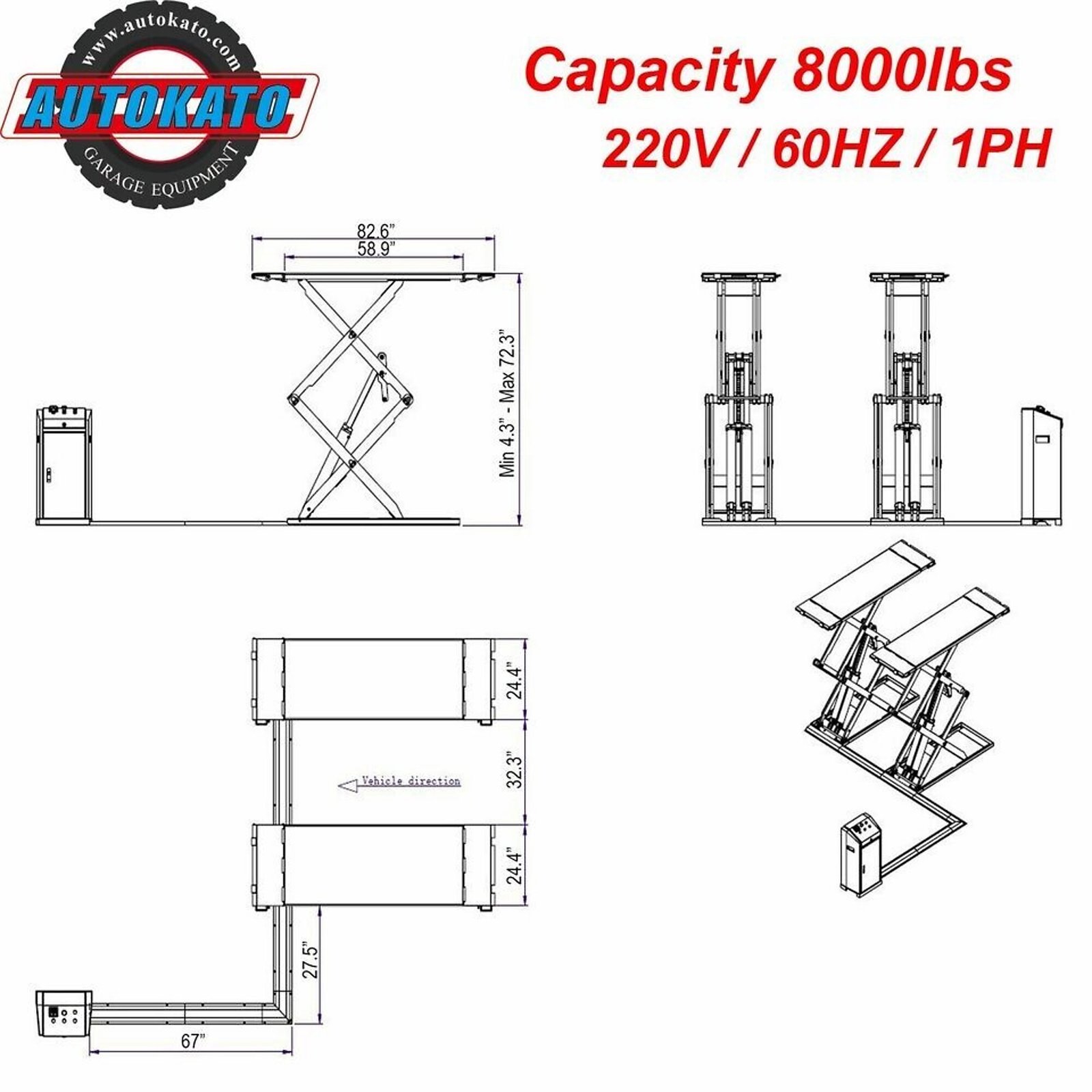

Full-rise scissor lift rated 8,000 lb: 72.3-inch max lift, 58.9-inch platforms, ≤50-second rise, 2.2 kW power unit with 24 V control — full undercarriage access in a space-saving footprint.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 8000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 83” | Measure from garage door to back wall |
Overall Width | 83” | Fits in standard single car bay |
Drive-Through Width | ” | Restrictive – tight for wide vehicles |
Max Rise Height | 74.8” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 50 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | ” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | PSI | Must be fully cured (28 days minimum) |
