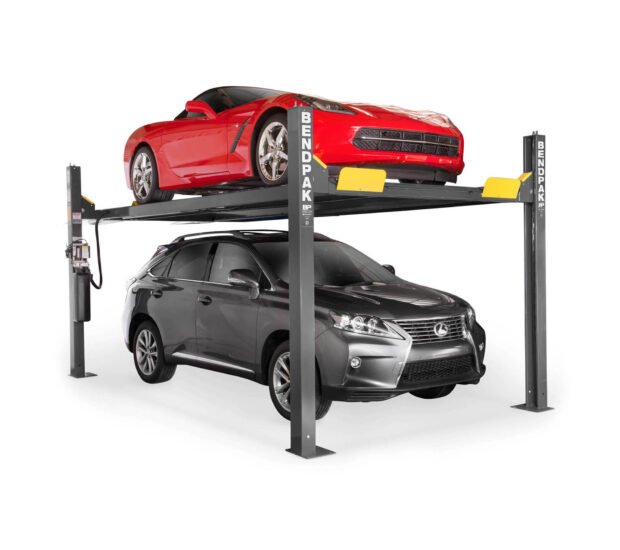

BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW
Model: HD-9XW
Key Specifications
9000 lbs
Capacity
50 Sec
Rise Time
220V
Power
70”
Max Rise
$6495.00
– Ships in 2-3 Business Days
Fitment Check
”
Narrow Bay Compatible
”
Standard Garage Depth
4.25”
Depth @ 3000 PSI
65”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
80
/100
The Verdict:
The BendPak HD-9XW is the extra-tall member of the HD-9 four-post family: standard floor width, but 82 inches of rise — enough to leave real headroom for a taller mechanic or a lifted truck underneath. Everything else carries over from the standard HD-9: 9,000 lb capacity, drive-on runways, 220V power. If you have the ceiling for it, the extra height is the single most useful upgrade over the base model; if you need length instead of height, look at the HD-9XL, and for the same height in a narrower bay see the HD-9STX.

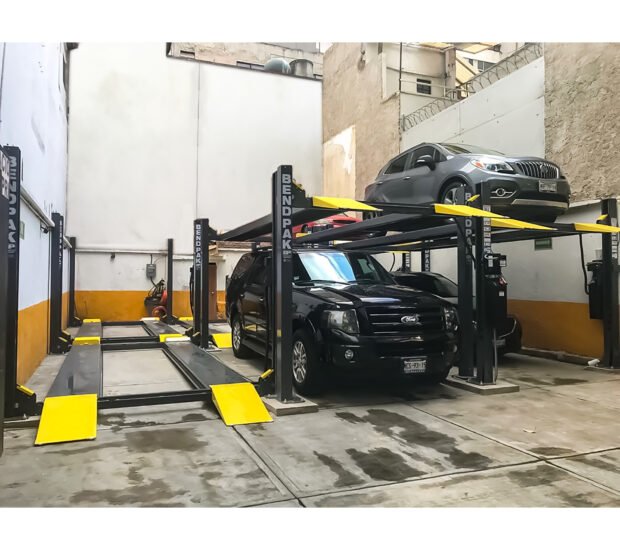

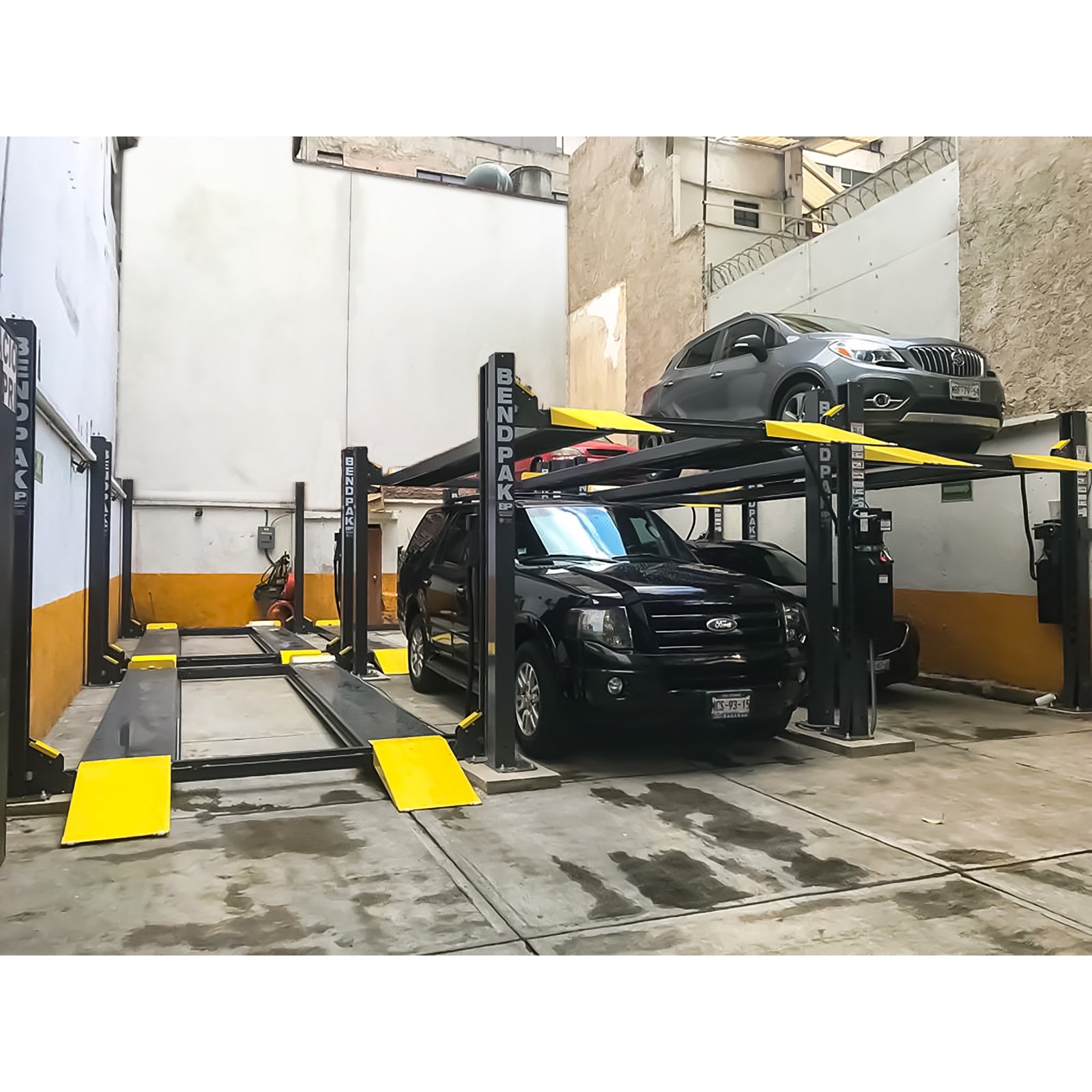

- Homeowners wanting to double their garage parking capacity
- Car collectors who need to stack vehicles for storage
- DIY enthusiasts who perform oil changes and basic maintenance
- Anyone who wants the safest, easiest-to-use lift type
- Owners of full-size trucks and SUVs
- Users who need to do wheel-off suspension work (unless you buy bridge jacks)
- Anyone without at least 4″ of cured concrete
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time
The extra-tall runways push the rise to 82 inches; the same 220V single-phase power unit lifts both sides in sync — the taller travel just pays out a bit more cable on the way up.

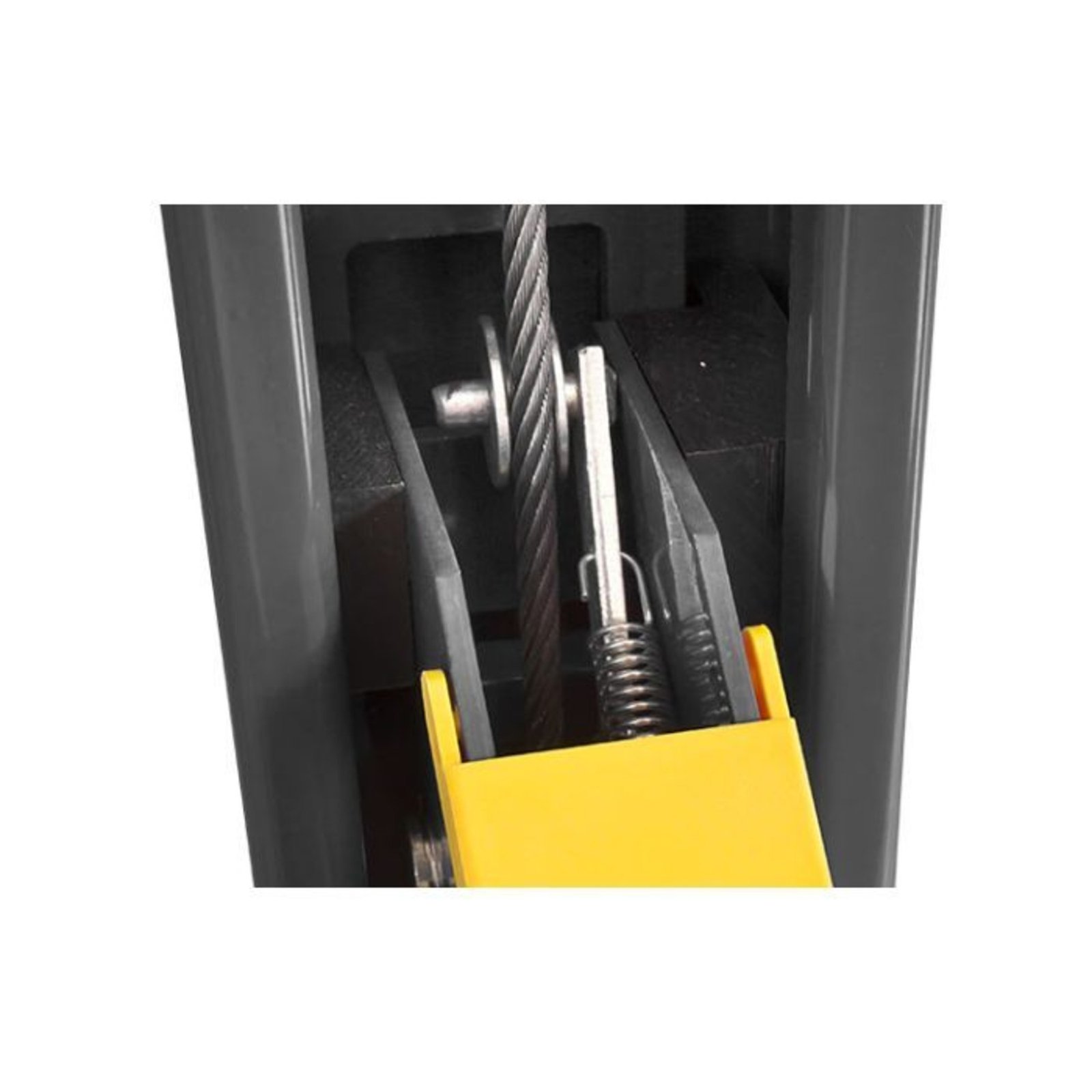

Safety Lock System

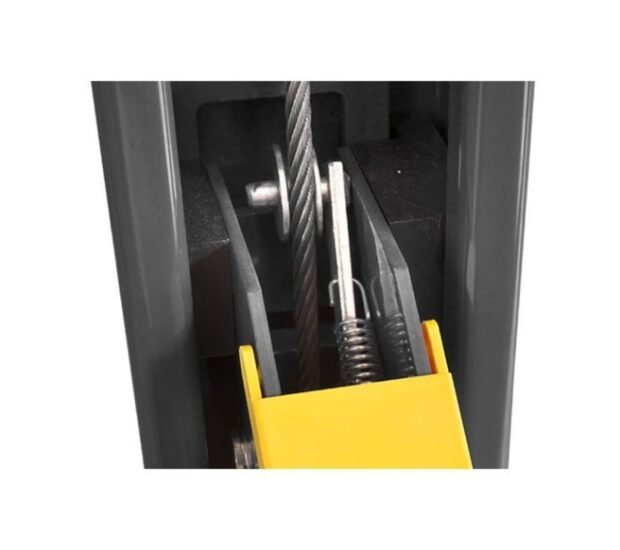

Lock positions run the full height of the taller columns, so you can set the vehicle at a genuine stand-up working height and rest it on mechanical stops.
Structural Integrity
Standard-width but extra-tall: 82 inches of rise and an 87-inch maximum lifting height across 224.5 inches of length — the same floor width as the base HD-9 with far more overhead room. 9,000 lb, CE-certified, 5-2-1 warranty.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 9000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | ” | Measure from garage door to back wall |
Overall Width | ” | Fits in standard single car bay |
Drive-Through Width | 100.25” | Restrictive – tight for wide vehicles |
Max Rise Height | 70” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 50 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4.25” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
