BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9
Model: HD-9
Key Specifications
9000 lbs
Capacity
50 Sec
Rise Time
220V
Power
70”
Max Rise
$6095.00
– Ships in 2-3 Business Days
Fitment Check
”
Narrow Bay Compatible
”
Standard Garage Depth
4.25”
Depth @ 3000 PSI
65”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
80
/100
The Verdict:

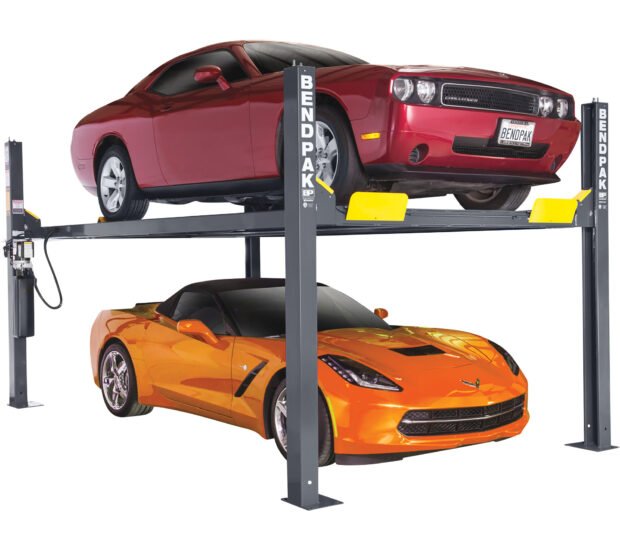

The BendPak HD-9 is the 9,000-lb four-post lift at the center of BendPak’s storage-and-service line — the baseline its wider, longer, and taller variants all build on. Four posts and two drive-on runways mean no arms to set and enough stability to store a vehicle for months. It rises 70 inches for service or a second parking space underneath, reaches full height in about 45 seconds on a 220V circuit, and clears 86.5 inches of drive-through. If your bay fits the standard footprint it’s the value pick; if you need more room, step up to the extra-tall HD-9XW, extended HD-9XL, or tall-and-narrow HD-9STX.
- Homeowners wanting to double their garage parking capacity
- Car collectors who need to stack vehicles for storage
- DIY enthusiasts who perform oil changes and basic maintenance
- Anyone who wants the safest, easiest-to-use lift type
- Owners of full-size trucks and SUVs
- Users who need to do wheel-off suspension work (unless you buy bridge jacks)
- Anyone without at least 4″ of cured concrete
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

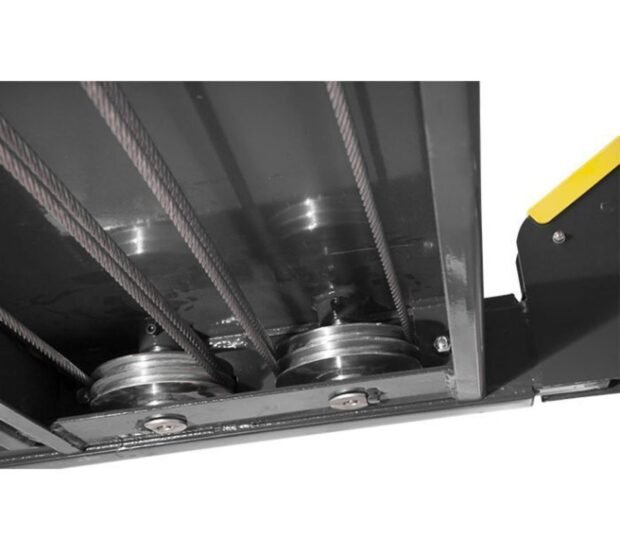

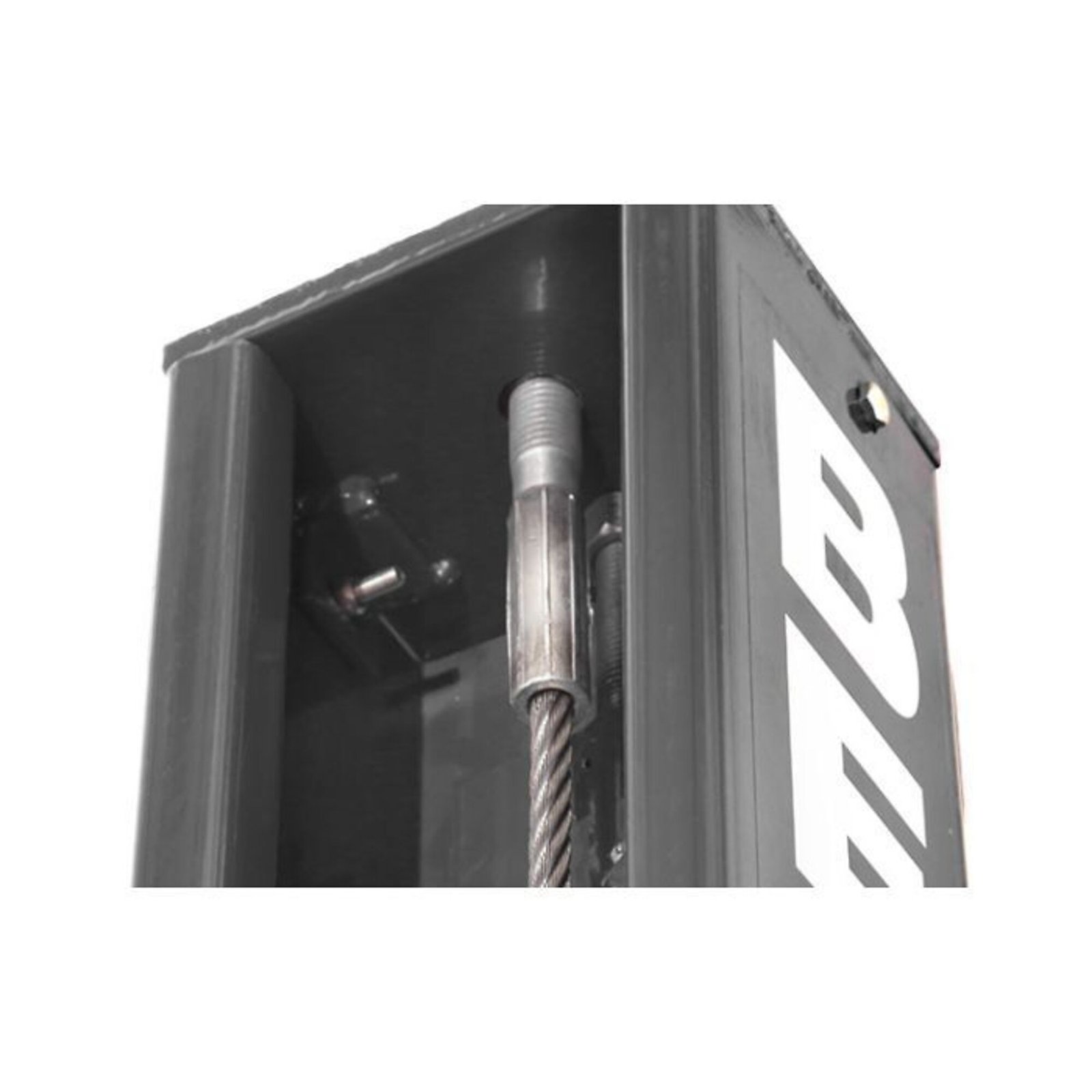

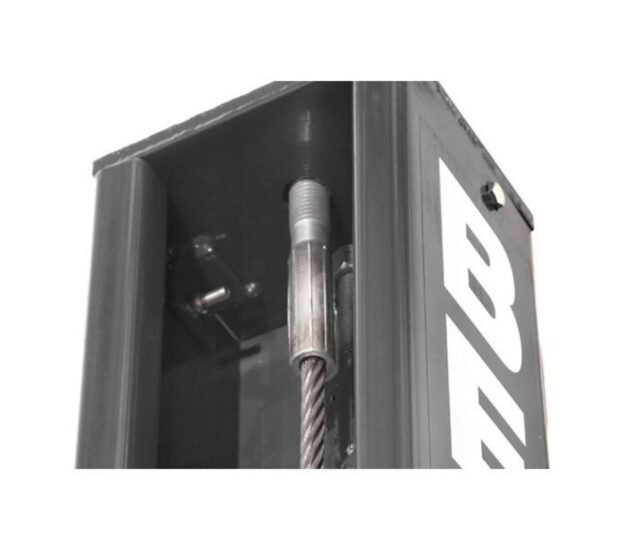

A 220V single-phase power unit raises both runways together to full height in about 45 seconds, with equalized cables keeping the four corners level through the travel.
Safety Lock System
Multiple mechanical lock positions hold the runways on steel stops at height, and because the load rides on the four columns rather than slab anchors, the HD-9 can sit loaded for long-term storage.
Structural Integrity
Standard service/storage/parking footprint: 9,000 lb, 70-inch rise, 88-inch columns, 200.5 inches long, 19-inch runways and 86.5-inch drive-through. CE-certified and backed by BendPak’s 5-2-1 warranty.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 9000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | ” | Measure from garage door to back wall |
Overall Width | ” | Fits in standard single car bay |
Drive-Through Width | 100.25” | Restrictive – tight for wide vehicles |
Max Rise Height | 70” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 50 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4.25” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
