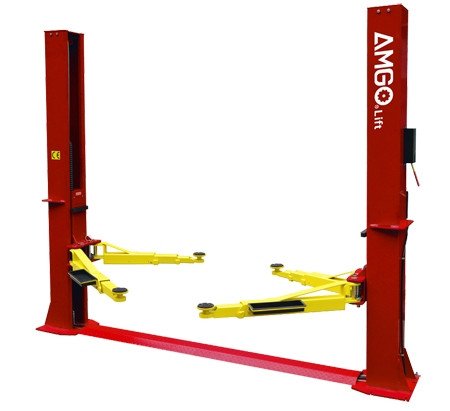

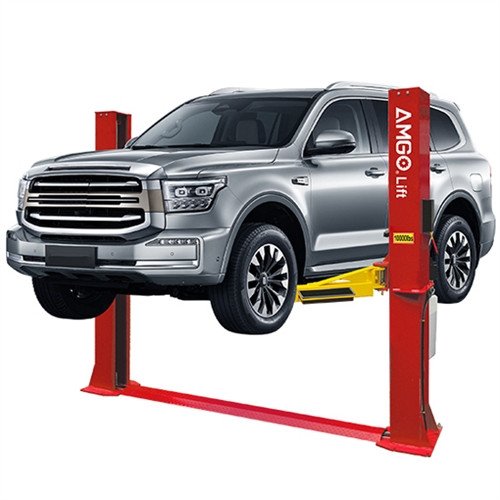

AMGO® Hydraulics BP-10 Super-Symmetric Floor Base-Plate 2 Post Lift 10,000 Lbs
Model: BP-10
Key Specifications
10000 lbs
Capacity
62 Sec
Rise Time
220V
Power
76”
Max Rise
$3955.00
– Ships in 2-3 Business Days
Fitment Check
139.12”
Narrow Bay Compatible
”
Standard Garage Depth
4”
Depth @ 3000 PSI
111.88”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
78
/100
The Verdict:
The AMGO BP-10 is a 10,000-lb baseplate two-post — and at just 111⅞ inches overall it fits low-ceiling garages that can’t take an overhead lift. Four 3-stage super-symmetric arms handle a wide range of vehicles, and it rises 76–78 inches (higher than most overhead lifts). Two installation widths let you set it for your bay. Prefer an overhead clear-floor design? Compare the OHX-10; want 9,000 lb for less, the BP-9.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Commercial shops servicing trucks and fleet vehicles
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

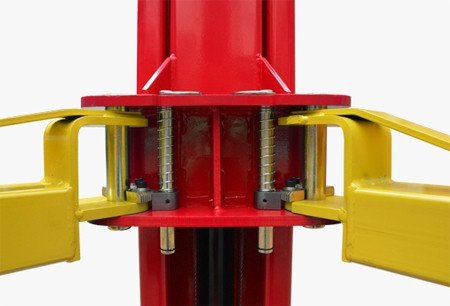

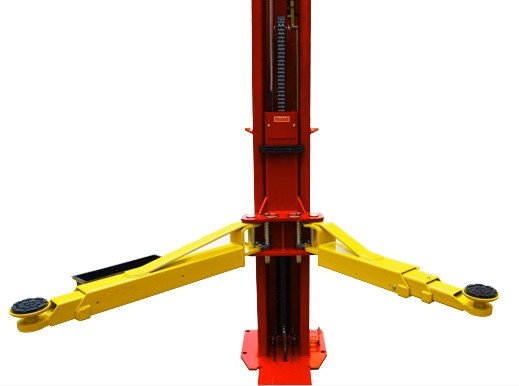

A power unit drives four 3-stage symmetric retractable arms; the baseplate routes the equalization across the floor, keeping overall height to just 111⅞ inches.
Safety Lock System

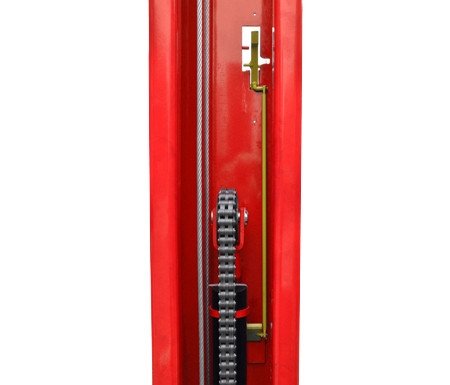

Automatic mechanical safety locks hold the vehicle on steel stops through the rise, backed by AMGO’s 5-3-2 warranty (5-year structure, 3-year hydraulics, 2-year electrical).
Structural Integrity
Baseplate Super-Symmetric two-post rated 10,000 lb, standing just 111⅞ inches overall for low ceilings, with 76–78 inches of rise and two installation widths.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 10000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 139.12” | Measure from garage door to back wall |
Overall Width | 139.12” | Fits in standard single car bay |
Drive-Through Width | 100” | Restrictive – tight for wide vehicles |
Max Rise Height | 76” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 62 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | PSI | Must be fully cured (28 days minimum) |
