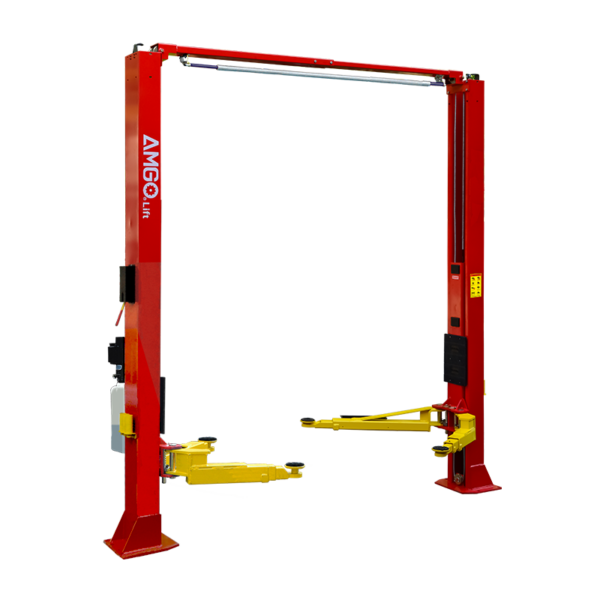

AMGO® Hydraulics OHX-10 Super-Asymmetric® 2 Post Lift 10,000 Lbs

Model: OHX-10

Key Specifications

10000 lbs

Capacity

57 Sec

Rise Time

220V

Power

71”

Max Rise

🔧 Professional installation available — find a certified installer near you

$3800.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

135”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

”

Depth @ 3000 PSI

Min. Ceiling

144”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

78

/100

The Verdict:

The AMGO OHX-10 is a 10,000-lb clearfloor two-post with AMGO’s Super-Asymmetric arms — set them symmetric to center the load or asymmetric so doors clear the columns. It rises 71–73 inches (up to 76 with extensions), clears nearly 100 inches of drive-through, and stands 144 inches overall. For the same lift extra-tall, see the OHX-10H; for third-party ALI certification, the OH-10 ALI.

  • Who Should Buy It:
  • Professional mechanics and shop owners
  • Serious DIYers who do suspension, brake, and exhaust work
  • Anyone who needs full undercarriage access
  • Users willing to drill anchor holes into concrete
  • Commercial shops servicing trucks and fleet vehicles
  • Who Should Skip It:
  • Anyone who cannot drill into their concrete floor
  • Users with concrete less than 4″ thick or with major cracks
  • People who want a simple, no-install solution
  • ⚠️ Lab Note:
This unit requires a 220V/230V connection. Most homes do not have this outlet in the garage. You may need an electrician to install a dedicated circuit.

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

A 2.0HP power unit drives the OHX-10’s Super-Asymmetric arms, with an overhead safety shut-off and a clear-floor layout that leaves the bay open between the columns.

Safety Lock System

Automatic mechanical safety locks hold the vehicle on steel stops through the rise, backed by AMGO’s 5-3-2 warranty (5-year structure, 3-year hydraulics, 2-year electrical).

Structural Integrity

Clearfloor Super-Asymmetric two-post rated 10,000 lb, 71–73⅜-inch rise (up to 76 with extensions), 144-inch overall height, 112¼ inches between columns, 99.8-inch drive-through.

The "Squeeze" Factor

This is the most critical section for the OHX-10.

DRIVE-THROUGH WIDTH 99.00"
CLEARANCE HEIGHT 144"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 7.5" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Before it arrives

Check your ceiling against the 144-inch overall height; anchor into at least four inches of cured concrete. Compare in our best 2-post lifts guide.

AMGO ® ($3,800) vs. Challenger VLE10 ($5,733)

Save $1,932.56 with the AMGO

FeatureAMGO ®CHALLENGER VLE10
Lifting Capacity 10,000 lbs 10,000 lbs
Power 220V 208V / 230V

The Lab Take:

The AMGO offers solid value and will handle most home garage needs. You will save $1,932.56 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the Challenger.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

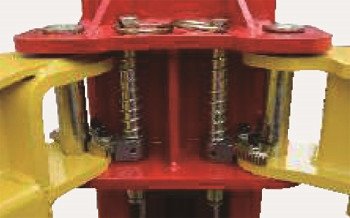

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

10000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

135”

Measure from garage door to back wall

Overall Width

135”

Fits in standard single car bay

Drive-Through Width

99”

Restrictive – tight for wide vehicles

Max Rise Height

71”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

57 Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide
