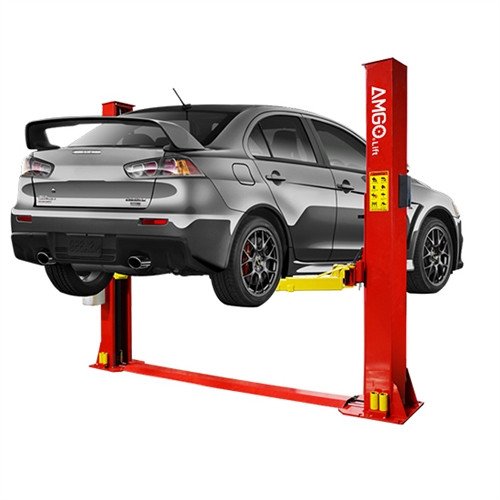

AMGO® Hydraulics BP-9 Floor Base-Plate 2 Post Lift 9,000 Lbs
Model: BP-9
Key Specifications
9000 lbs
Capacity
45 Sec
Rise Time
220V
Power
71”
Max Rise
$2335.00
– Ships in 2-3 Business Days
Fitment Check
131.88”
Narrow Bay Compatible
”
Standard Garage Depth
”
Depth @ 3000 PSI
108”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
75
/100
The Verdict:
The AMGO BP-9 is AMGO’s entry 9,000-lb baseplate two-post — one of the most affordable ways to put a real two-post under a low ceiling, since the baseplate design keeps overall height down. It anchors into the slab and runs the equalization across the floor rather than overhead. For a heavier build, the BP-9X; for 10,000 lb, the BP-10.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time
A power unit drives both carriages via equalized cables run across the floor, keeping the baseplate lift low for tight ceilings.

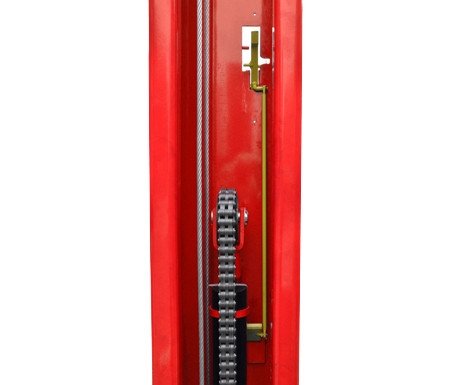

Safety Lock System
Automatic mechanical safety locks hold the vehicle on steel stops through the rise, backed by AMGO’s 5-3-2 warranty (5-year structure, 3-year hydraulics, 2-year electrical).
Structural Integrity
Entry baseplate two-post rated 9,000 lb, built low for low-ceiling garages, backed by AMGO’s 5-3-2 warranty.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 9000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 131.88” | Measure from garage door to back wall |
Overall Width | 131.88” | Fits in standard single car bay |
Drive-Through Width | 99” | Restrictive – tight for wide vehicles |
Max Rise Height | 71” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 45 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | ” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
