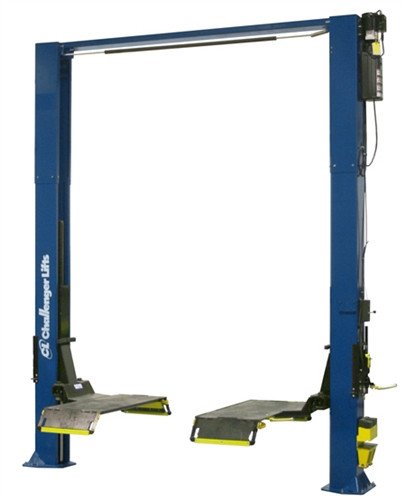

Challenger CL10A-XP9 Series ALI Adjustable 9K 2 Post Lift W/Drive-On Express Pad
Model: CL10A-XP9
Key Specifications
9000 lbs
Capacity
38 Sec
Rise Time
230V
Power
74”
Max Rise
$12566.11
– Ships in 2-3 Business Days
Fitment Check
14”
Narrow Bay Compatible
58”
Standard Garage Depth
4”
Depth @ 3000 PSI
74”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
78
/100
The Verdict:
The Challenger CL10A-XP9 is the base configuration in Challenger’s 9,000-lb drive-on express-pad two-post line — ALI/ETL certified, with a low-profile express pad that speeds vehicle spotting in busy bays and minimizes clearance issues on lowered cars. It rises 70 inches on a 208–230V single-phase motor. Compare it with the QuickCycle XP9-QC and dual-pendant XP9-DPC, or the Versymmetric CL10AV3.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

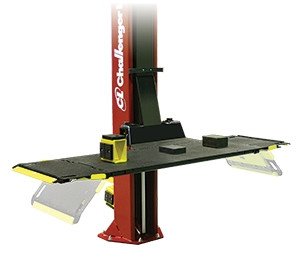

A 208–230V single-phase power unit drives the carriages; the low-profile drive-on express pad aids quick spotting in high-volume bays.
Safety Lock System
ALI/ETL certified to the ANSI safety standard, with automatic mechanical locks holding the vehicle on steel stops through the rise.
Structural Integrity
Drive-on express-pad two-post rated 9,000 lb, 70-inch rise, 140-inch overall height (143 with cylinder extended). ALI/ETL certified.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
|
Lifting Capacity |
9000 Ibs |
Good for: Light Duty Trucks, SUVs, Sedans |
|
Overall Length |
14” |
Measure from garage door to back wall |
|
Overall Width |
14” |
Fits in standard single car bay |
|
Drive-Through Width |
90” |
Restrictive – tight for wide vehicles |
|
Max Rise Height |
74” |
For car stacking calculations |
|
Motor |
” |
Requires 30 Amp Breaker – NOT 110V compatible |
|
Rise Time |
38 Sec |
Slower than 2-post lifts (30-40 sec) |
|
Concrete Req. |
4” Min Depth |
Standard Residential Slab is usually 4″ |
|
Concrete PSI |
3500PSI |
Must be fully cured (28 days minimum) |
