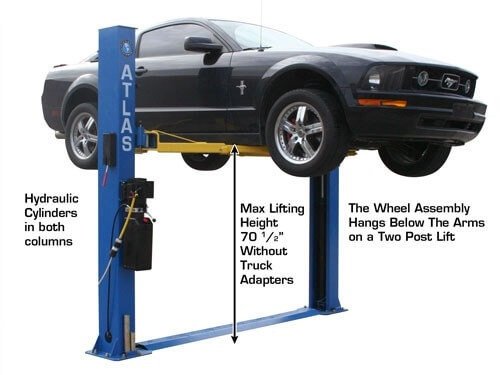

Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 Lbs
Model: BP8000
Key Specifications
8000 lbs
Capacity
Sec
Rise Time
Power
86.5”
Max Rise
$3199.00
– Ships in 2-3 Business Days
Fitment Check
132”
Narrow Bay Compatible
”
Standard Garage Depth
”
Depth @ 3000 PSI
108”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
73
/100
The Verdict:
The Atlas BP8000 is a 8,000-lb entry baseplate two-post lift for cars and lighter trucks. It’s a baseplate two-post — the columns tie together at the floor, so it stands lower and suits low-ceiling garages, with symmetric arms. Runs on a 220V single-phase circuit. Compare it with the 9KBP.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work

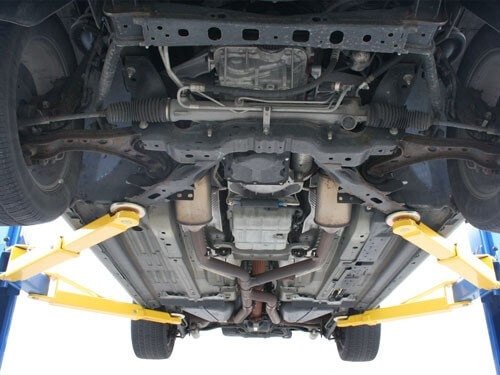

- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

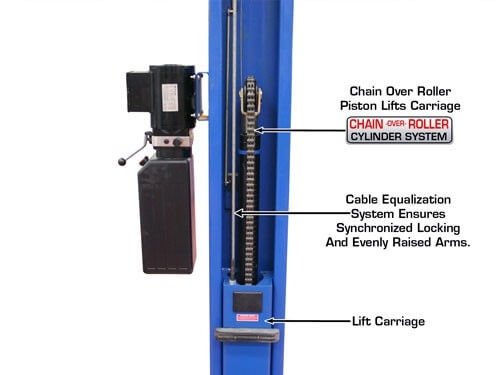

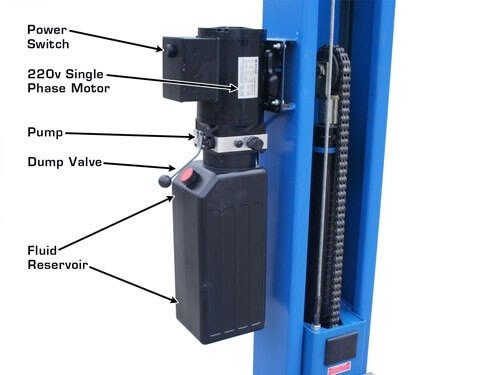

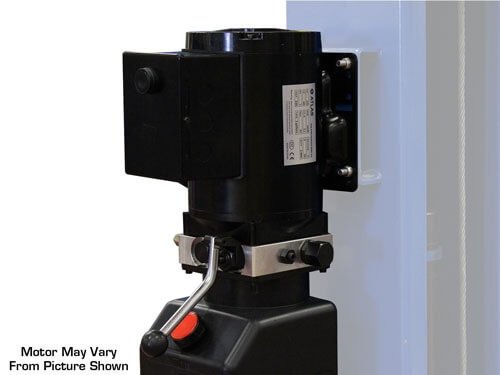

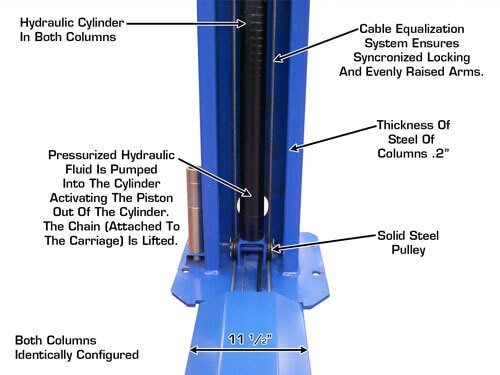

A 220-volt single-phase power unit drives both carriages in sync via equalized cables; the baseplate routes the equalization across the floor, keeping the lift low.
Safety Lock System

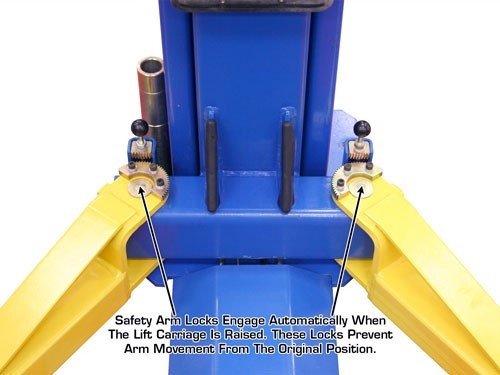

Multi-position mechanical safety locks hold the vehicle on steel stops through the full rise.
Structural Integrity

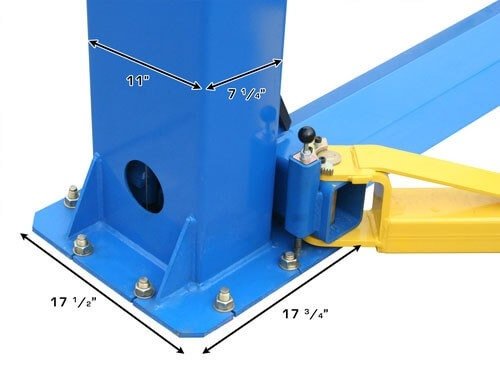

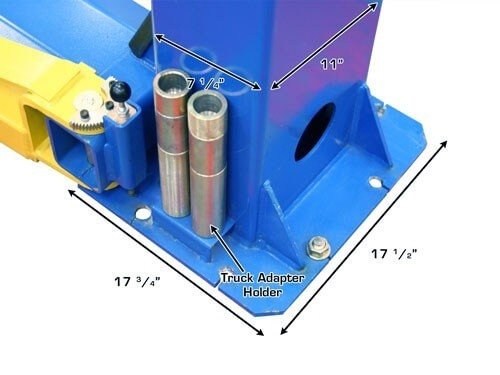

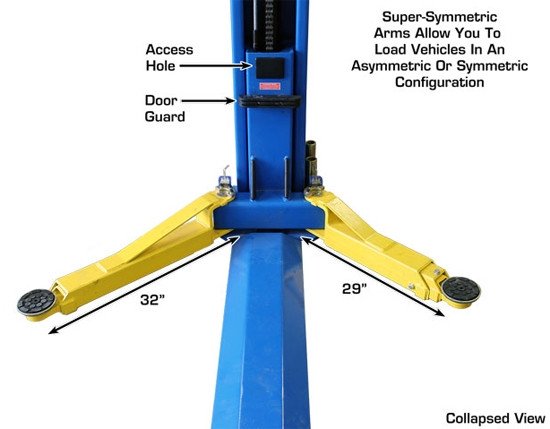

Baseplate two-post rated 8,000-lb, with symmetric arms. The floor-level cross-member keeps overall height down for low-ceiling garages.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 8000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 132” | Measure from garage door to back wall |

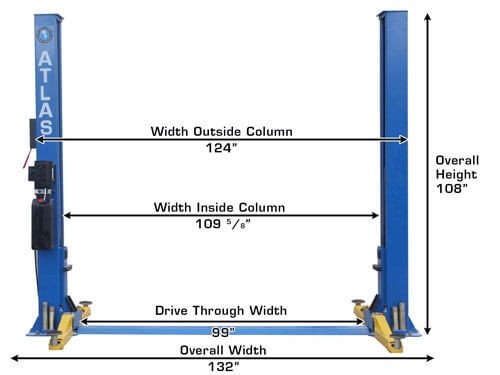

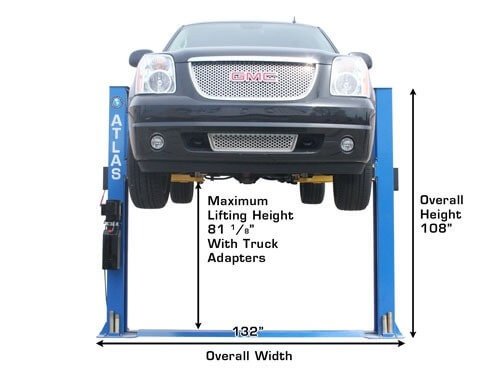

Overall Width | 132” | Fits in standard single car bay |

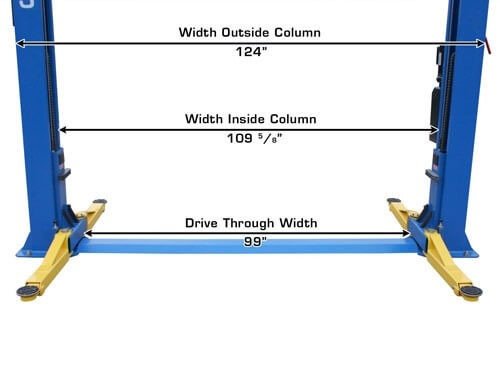

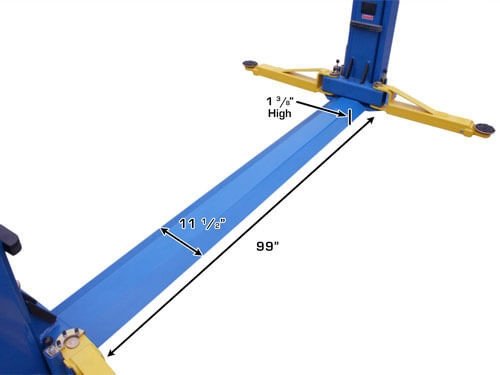

Drive-Through Width | 99” | Restrictive – tight for wide vehicles |

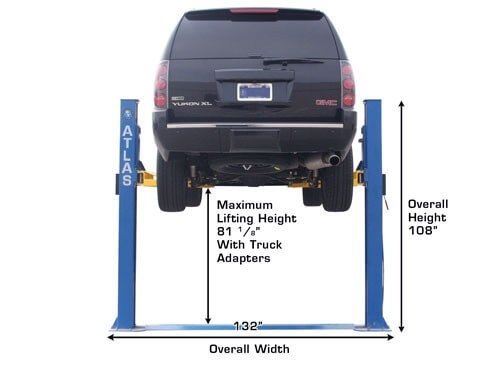

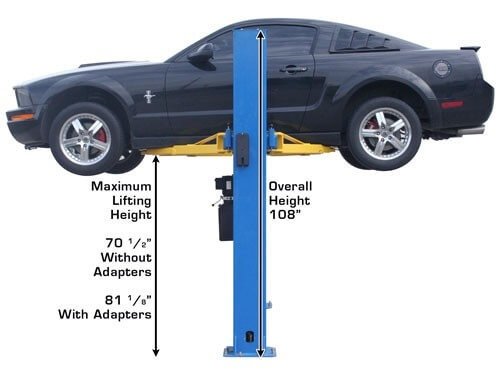

Max Rise Height | 86.5” | For car stacking calculations |

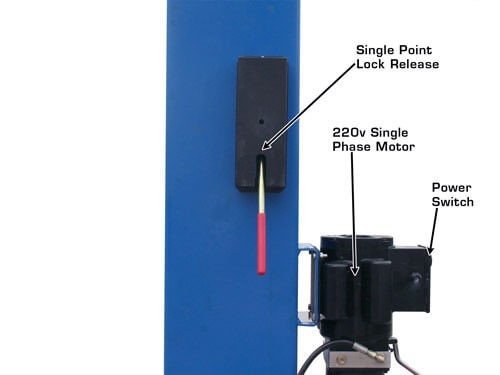

Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | ” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
