Atlas® 9KBP Floor Base-Plate 2 Post Lift 9,000 Lbs

Model: 9KBP

Key Specifications

9000 lbs

Capacity

Sec

Rise Time

Power

81”

Max Rise

🔧 Professional installation available — find a certified installer near you

$2699.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

2”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

”

Depth @ 3000 PSI

Min. Ceiling

111.5”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

75

/100

The Verdict:

The Atlas 9KBP is a 9,000-lb value-priced baseplate two-post lift. It’s a baseplate two-post — the columns tie together at the floor, so it stands lower and suits low-ceiling garages, with symmetric/asymmetric arms. Runs on a 220V single-phase circuit. Compare it with the BP-10000.

  • Who Should Buy It:
  • Professional mechanics and shop owners
  • Serious DIYers who do suspension, brake, and exhaust work
  • Anyone who needs full undercarriage access
  • Users willing to drill anchor holes into concrete
  • Who Should Skip It:
  • Anyone who cannot drill into their concrete floor
  • Users with concrete less than 4″ thick or with major cracks
  • People who want a simple, no-install solution
  • ⚠️ Lab Note:
Concrete quality is critical. Do not install if your floor has major cracks, is less than 4″ thick, or has not fully cured (28 days minimum).

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

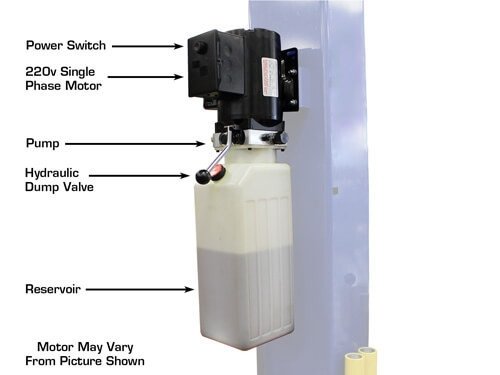

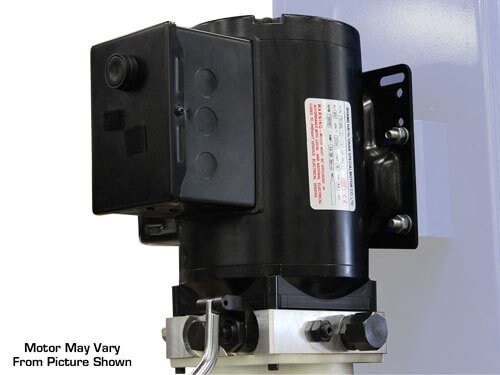

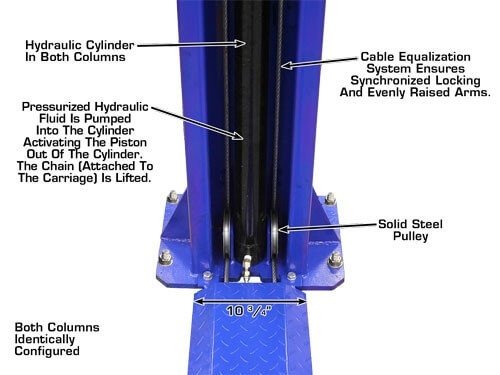

A 220-volt single-phase power unit drives both carriages in sync via equalized cables; the baseplate routes the equalization across the floor, keeping the lift low.

Safety Lock System

Multi-position mechanical safety locks hold the vehicle on steel stops through the full rise.

Structural Integrity

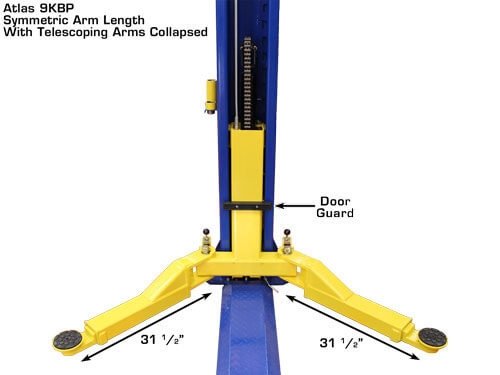

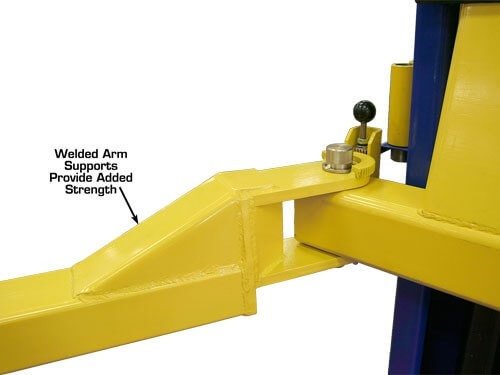

Baseplate two-post rated 9,000-lb, with symmetric/asymmetric arms. The floor-level cross-member keeps overall height down for low-ceiling garages.

The "Squeeze" Factor

This is the most critical section for the XH-9KBPX.

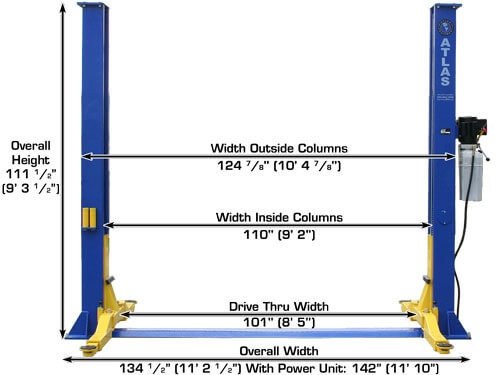

DRIVE-THROUGH WIDTH 101.00"
CLEARANCE HEIGHT 112"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 8.5" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Before it arrives

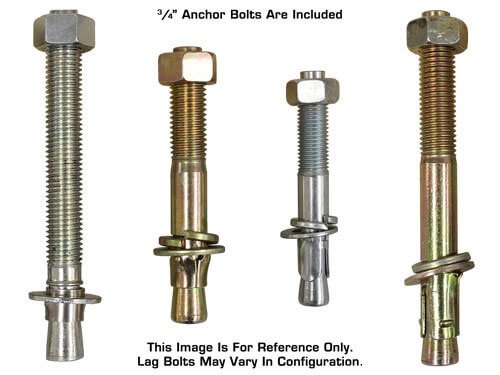

It anchors into the slab — plan for at least four inches of reinforced, cured concrete and a 220V circuit. Compare options in our best 2-post lifts guide.

Atlas ® ($2,699) vs. Challenger VLE10 ($5,733)

Save $3,033.56 with the Atlas

FeatureATLAS ®CHALLENGER VLE10
Lifting Capacity 9,000 lbs 10,000 lbs
Power Not specified 208V / 230V

The Lab Take:

The Atlas offers solid value and will handle most home garage needs. You will save $3,033.56 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the Challenger.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

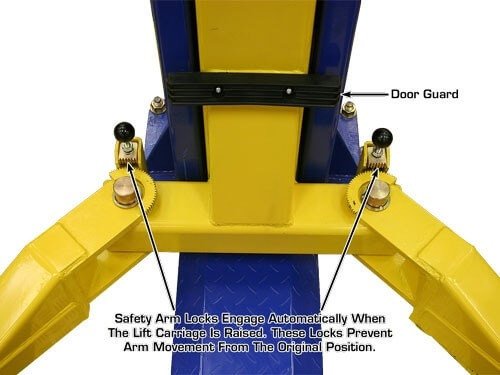

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

9000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

2”

Measure from garage door to back wall

Overall Width

2”

Fits in standard single car bay

Drive-Through Width

101”

Restrictive – tight for wide vehicles

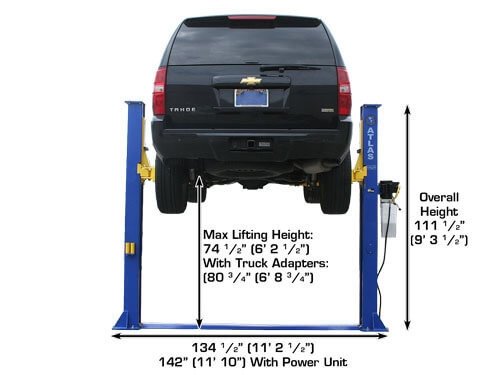

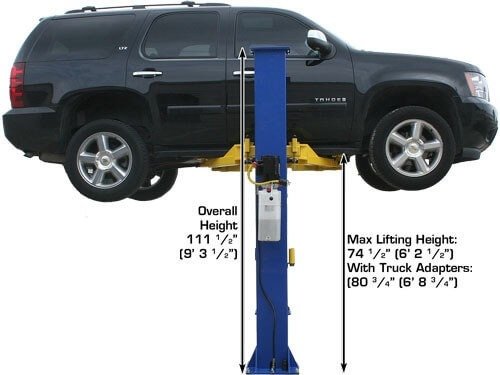

Max Rise Height

81”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

3000PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide
