Atlas® BP-10000 Floor Baseplate 2 Post Car Lift 10,000 Lbs
Model: BP-10000
Key Specifications
10000 lbs
Capacity
Sec
Rise Time
Power
8”
Max Rise
$3899.00
– Ships in 2-3 Business Days
Fitment Check
8”
Narrow Bay Compatible
”
Standard Garage Depth
”
Depth @ 3000 PSI
111.88”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
79
/100
The Verdict:
The Atlas BP-10000 is a 10,000-lb baseplate two-post lift — and its trick is height, or the lack of it. Because a baseplate ties the columns together at the floor instead of overhead, the whole lift stands just 111⅞ inches (about 9’4″), so it fits garages that can’t take an overhead lift. Super-symmetric 2- and 3-stage arms handle everything from cars to trucks, and it lifts to 77⅜ inches (86⅜ with adapters) on a 220V circuit. For a low-ceiling shop that still wants a full 10,000-lb two-post, it’s one of the best values going. Prefer an overhead design? Compare the OH-10X; want 9,000 lb for less, see the 9KBP.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access

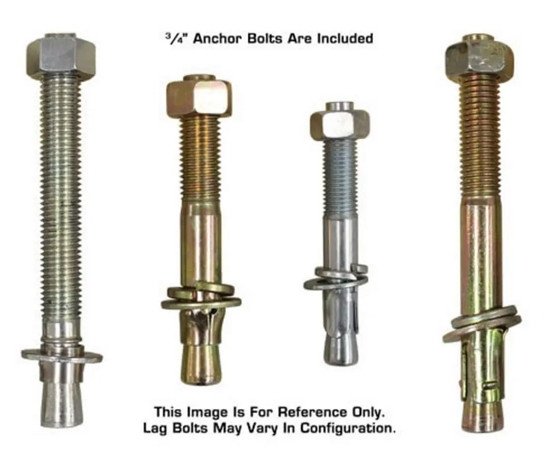

- Users willing to drill anchor holes into concrete
- Commercial shops servicing trucks and fleet vehicles
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

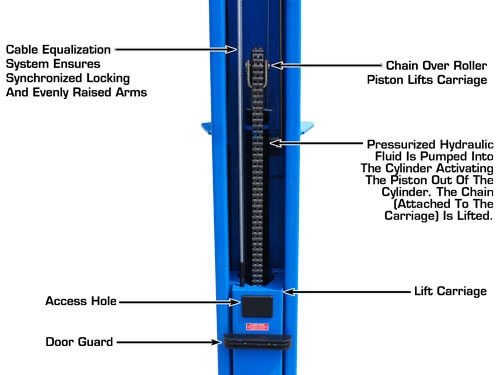

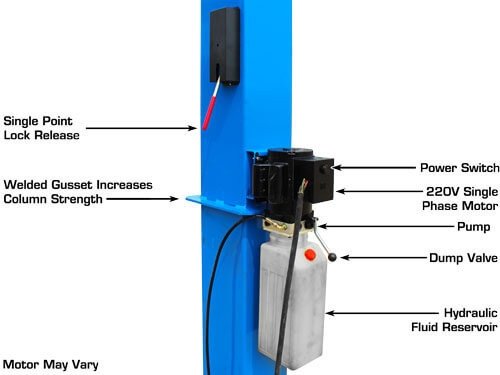

A 220-volt single-phase power unit drives the BP-10000, with equalized cables synchronizing the carriages. The baseplate routes the equalization across the floor rather than overhead, which is what keeps the lift low.
Safety Lock System

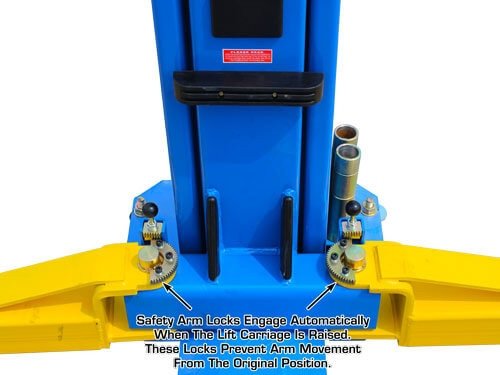

Multi-position mechanical safety locks hold the vehicle on steel stops through the rise, backed by a 5-year structural warranty.
Structural Integrity

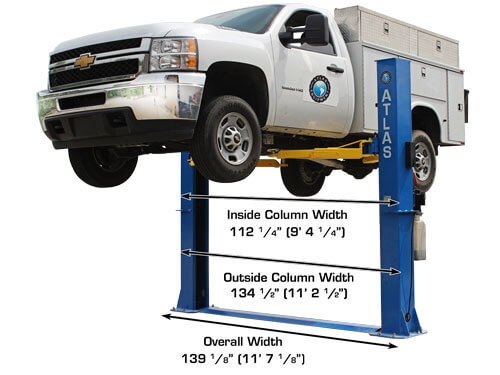

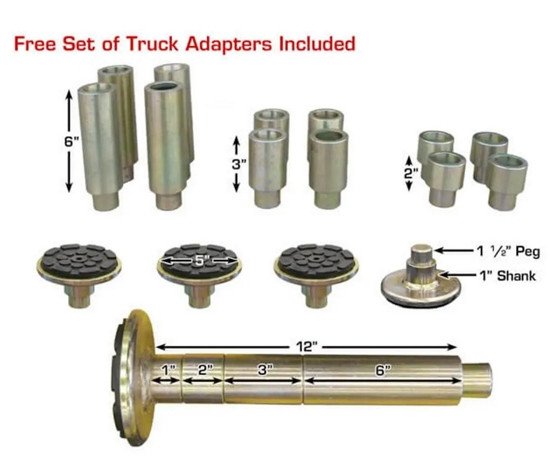

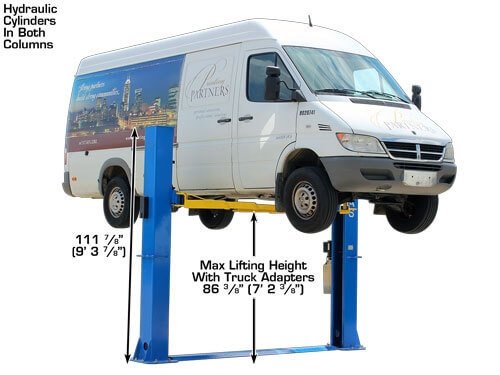

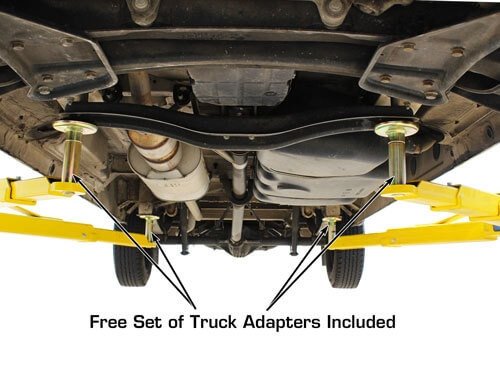

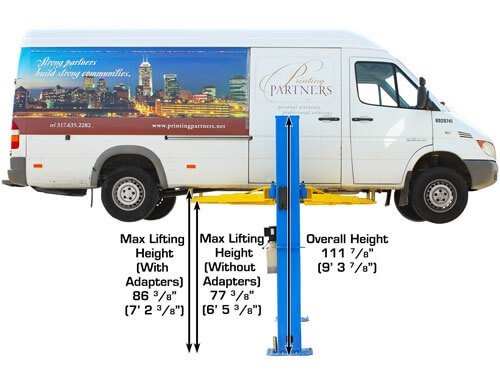

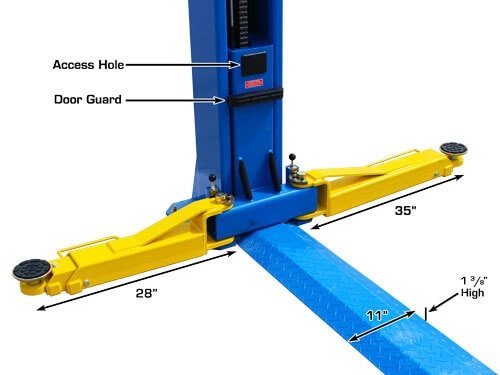

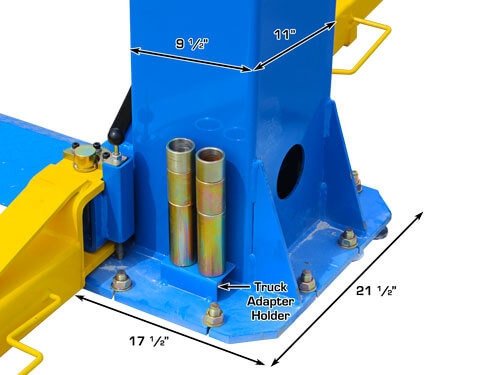

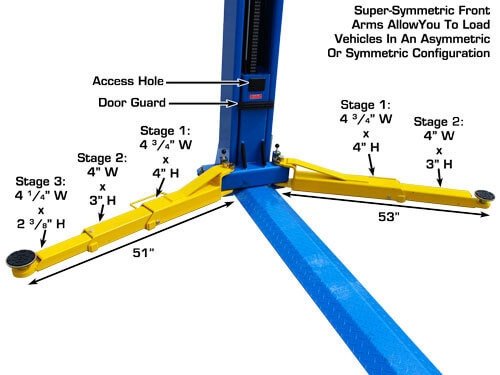

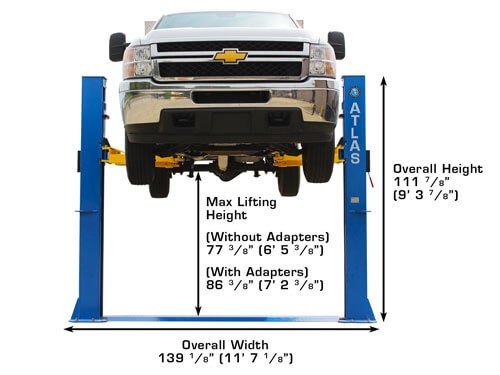

Baseplate two-post standing just 111⅞ inches overall for low-ceiling garages, 134½ inches outside-column to outside-column, with super-symmetric 2- and 3-stage arms. Rated 10,000 lb; lifts to 77⅜ inches (86⅜ with adapters).
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 10000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 8” | Measure from garage door to back wall |
Overall Width | 8” | Fits in standard single car bay |
Drive-Through Width | 101” | Restrictive – tight for wide vehicles |
Max Rise Height | 8” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | ” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
