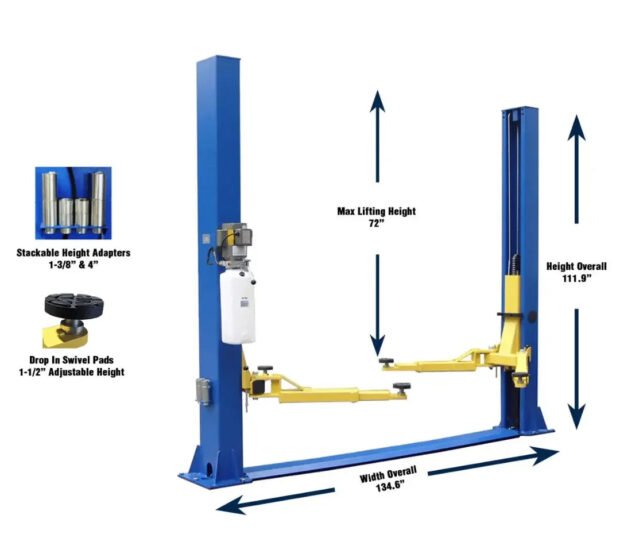

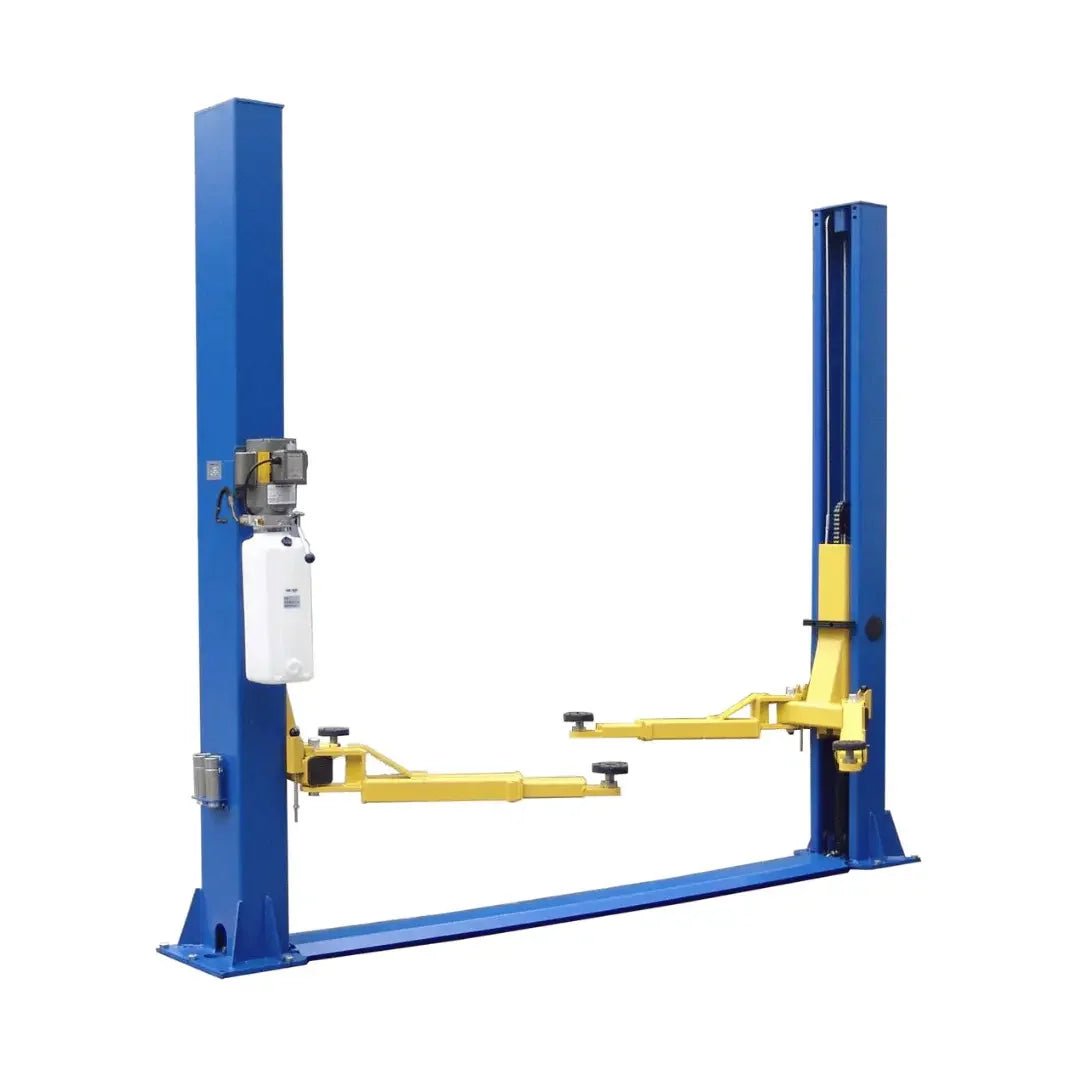

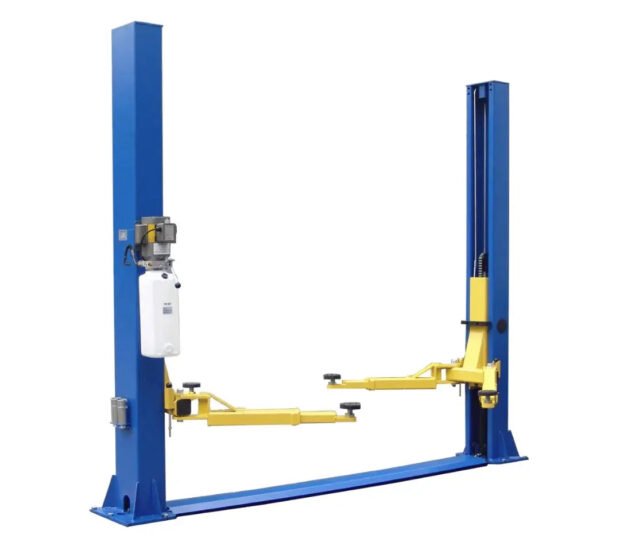

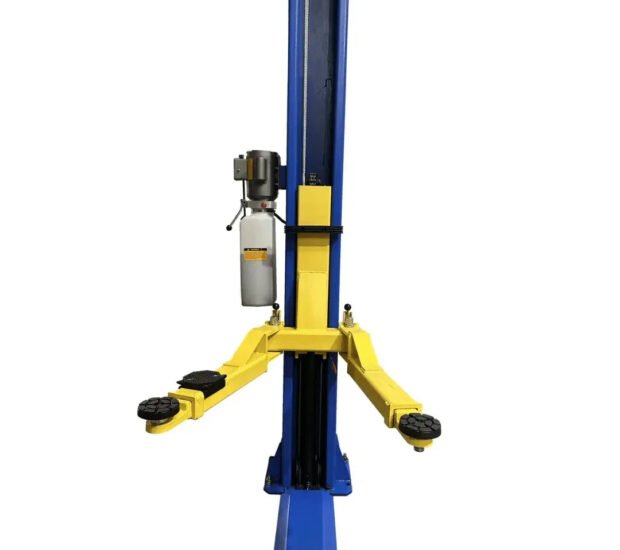

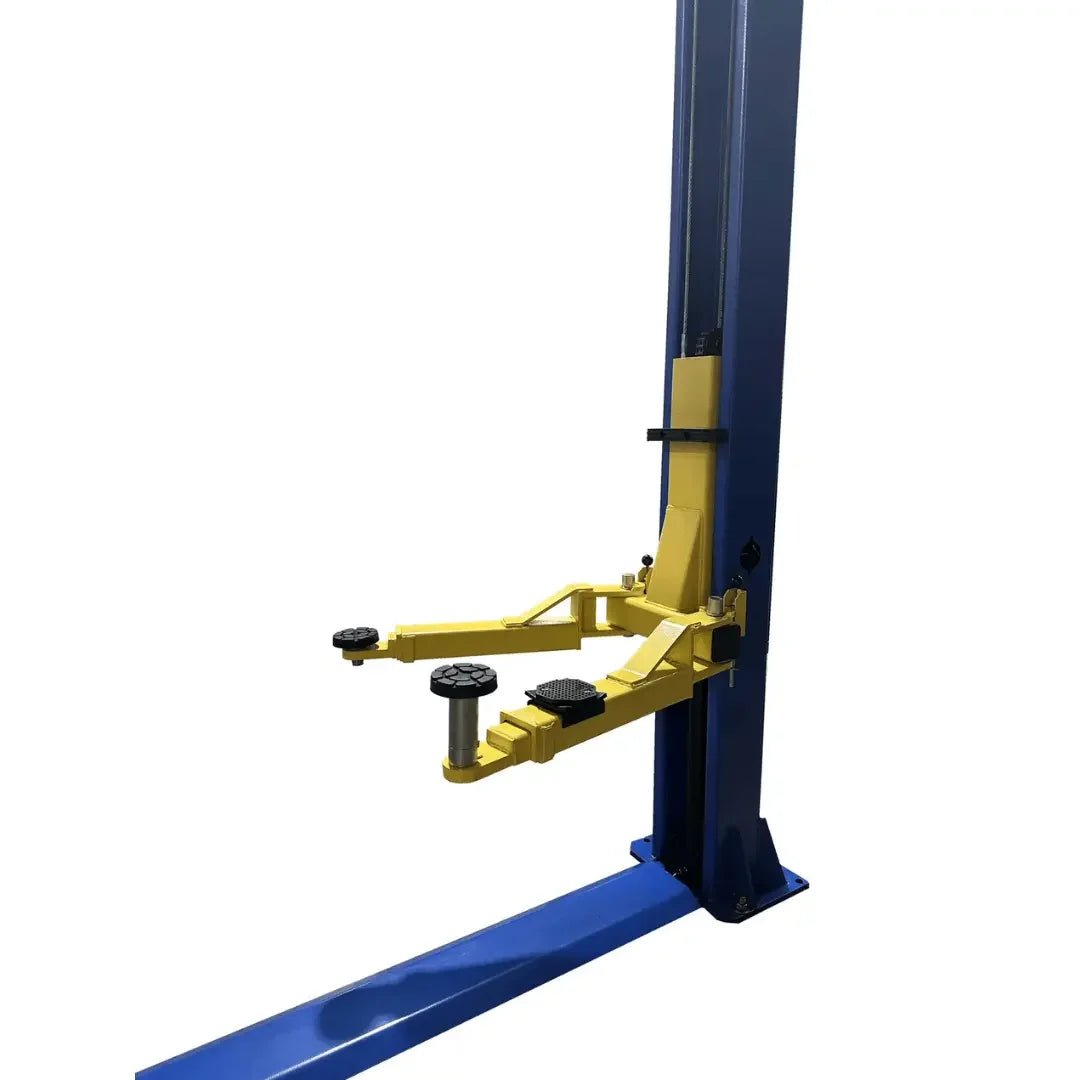

Valor VP9KFX 9,000 lb 2 Post Floor Plate – Symmetric

Model: VP9KFX

Key Specifications

9000 lbs

Capacity

Sec

Rise Time

220V

Power

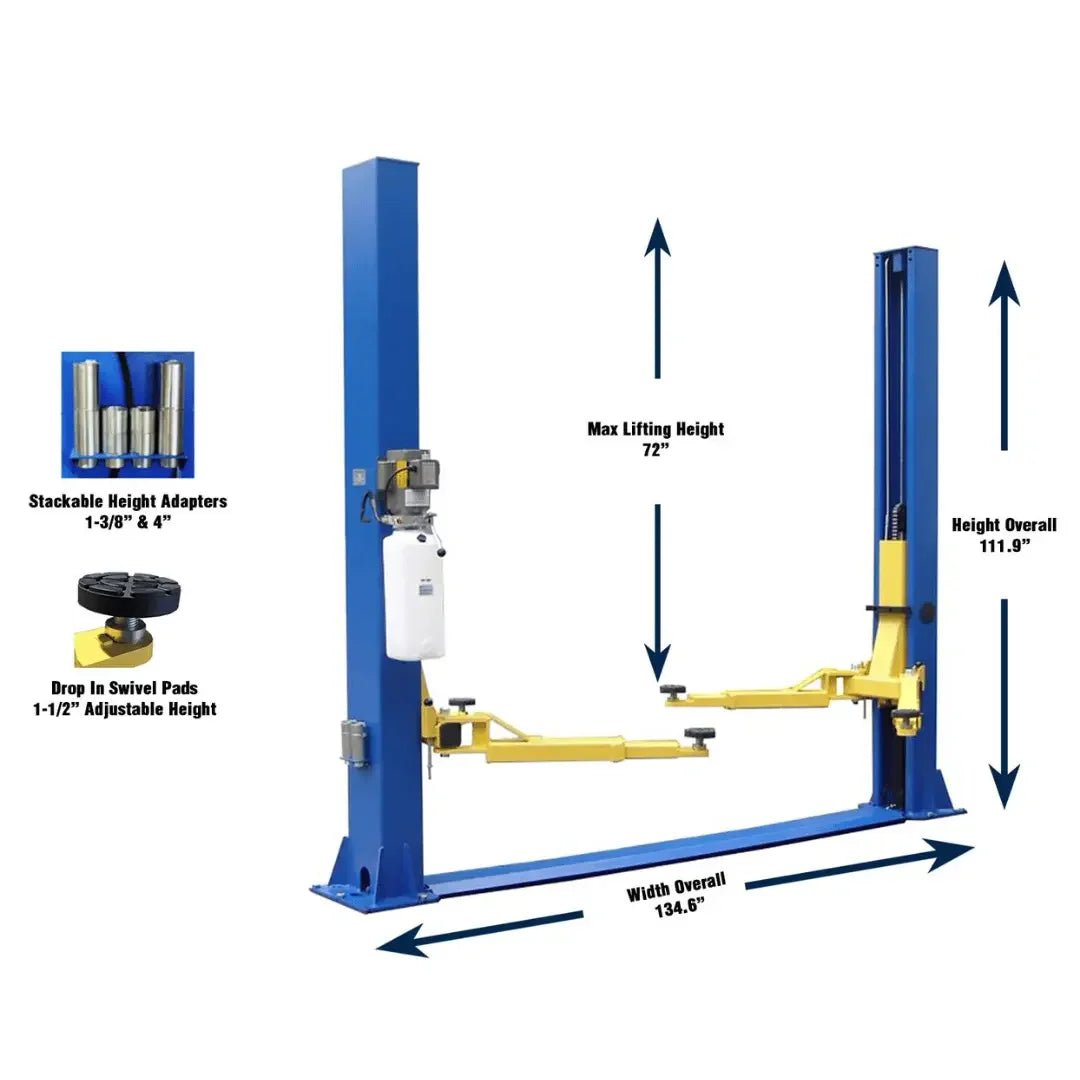

72”

Max Rise

🔧 Professional installation available — find a certified installer near you

$2420.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

”

Depth @ 3000 PSI

Min. Ceiling

111.88”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

75

/100

The Verdict:

The Valor VP9KFX is a 9,000-lb floorplate symmetric two-post — Valor is Tuxedo’s value line, the same style of lift at a lower price, and we ship it directly. It’s a floorplate two-post — columns tied at the floor, so it stands lower for low-ceiling garages, with symmetric arms, on a 220V single-phase circuit. Compare it with the VP9KF-TUX and Tuxedo TP9KF-TUX.

  • Who Should Buy It:
  • Low-ceiling garages that can’t take an overhead lift
  • Home shops that still want a full two-post
  • Budget-focused DIYers
  • Who Should Skip It:
  • Anyone who wants a completely clear floor (a shallow plate crosses the bay)
  • Garages without a 220V circuit
  • ⚠️ Lab Note:
The floorplate keeps overall height low, but a shallow cover plate runs across the bay floor — fine for most, worth knowing.

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

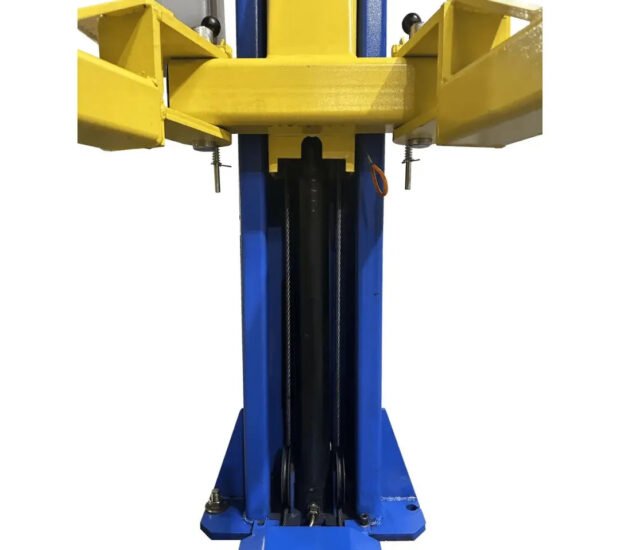

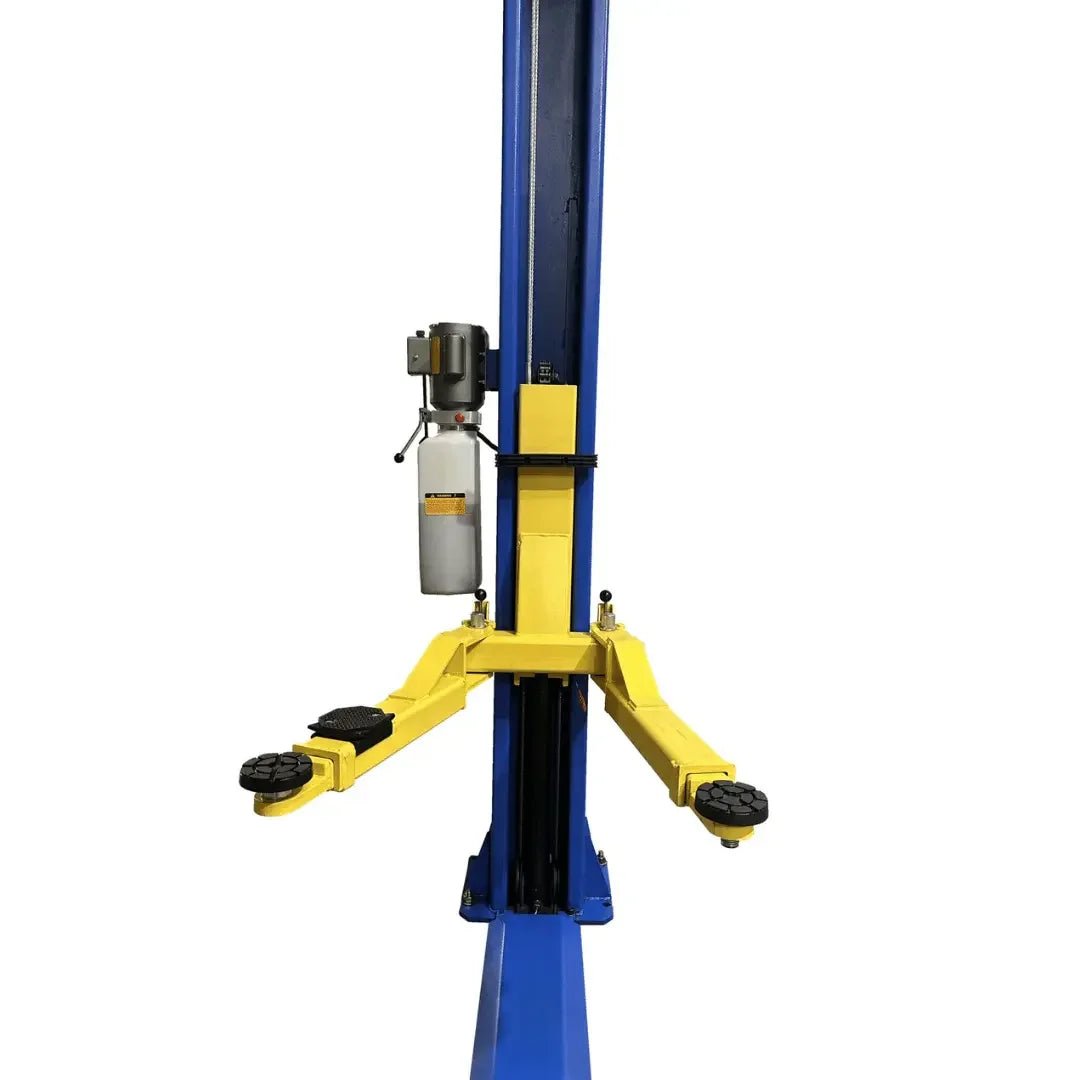

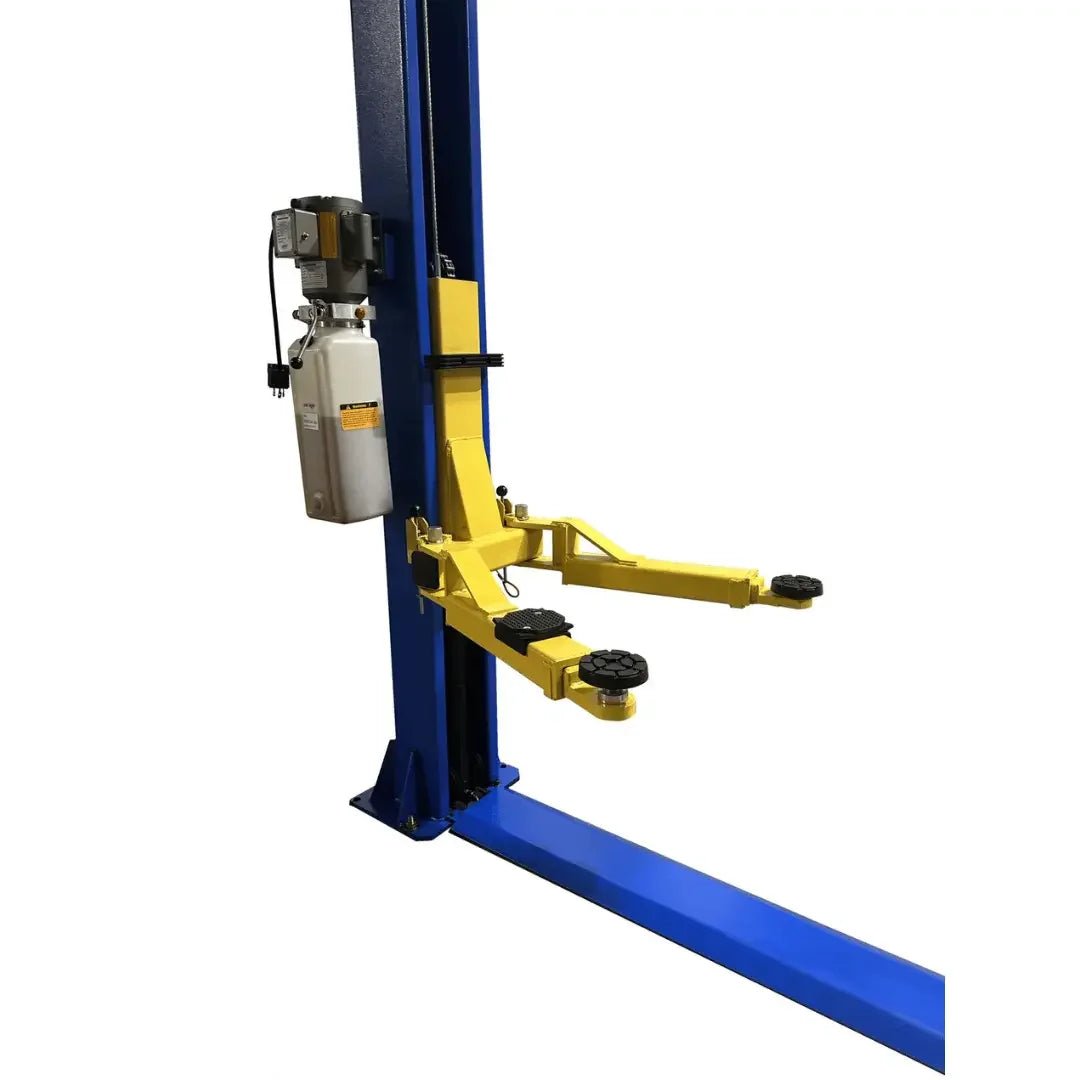

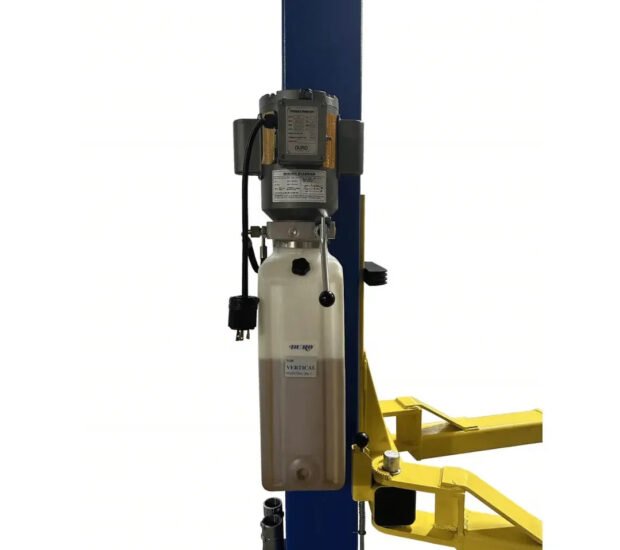

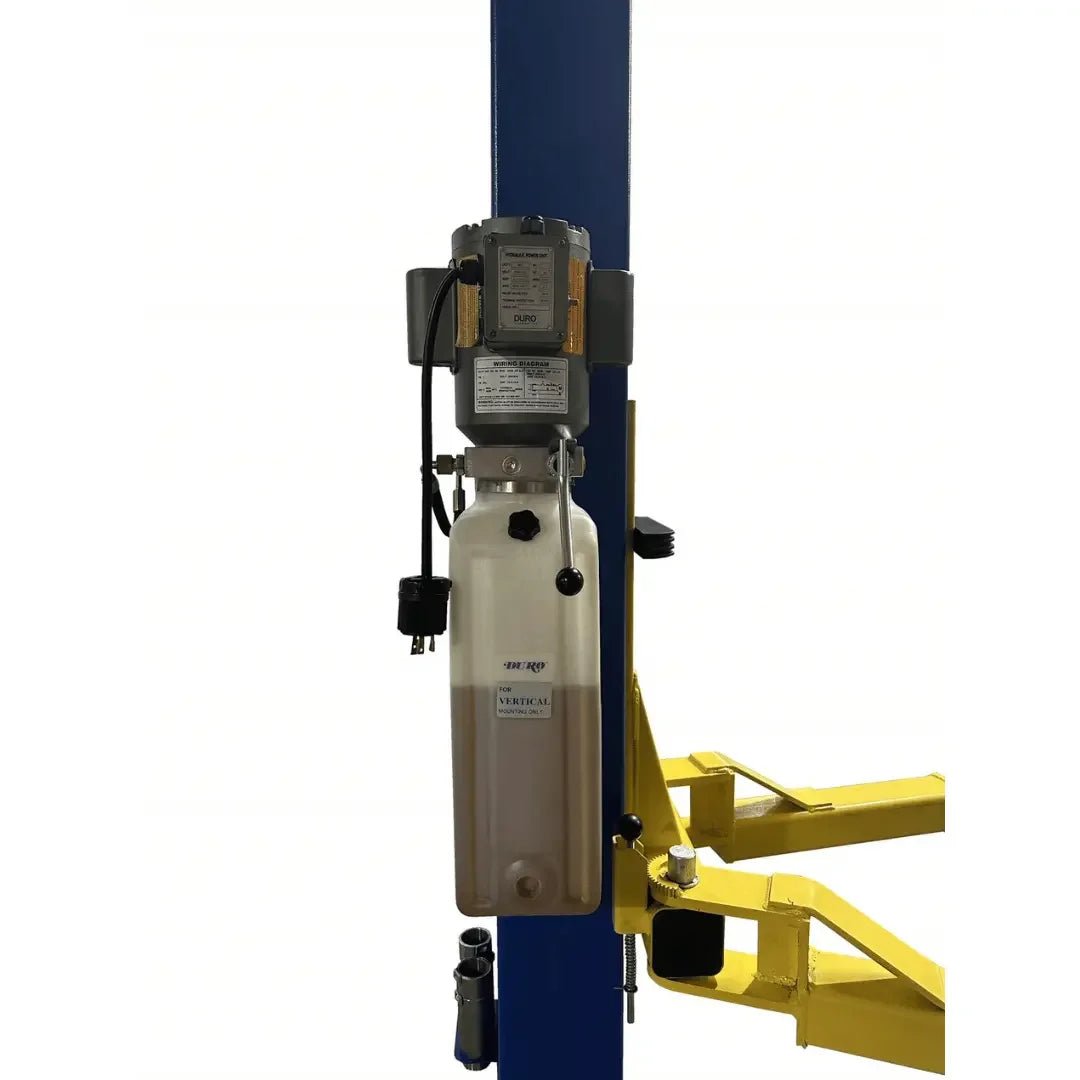

A 220V single-phase power unit drives both carriages via equalized cables; the floorplate keeps overall height down for low-ceiling garages.

Safety Lock System

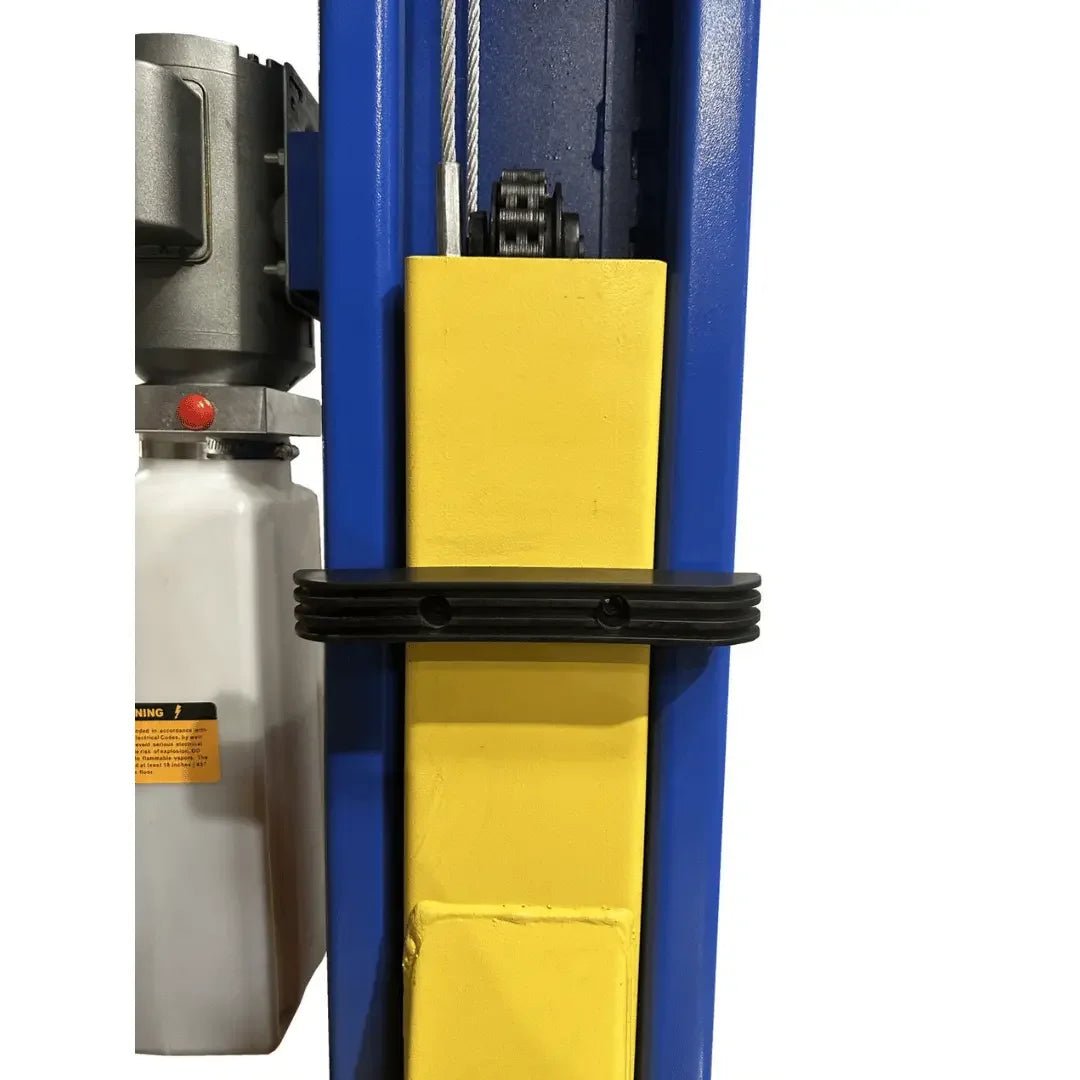

Automatic mechanical safety locks hold the vehicle on steel stops through the rise, released from a single point.

Structural Integrity

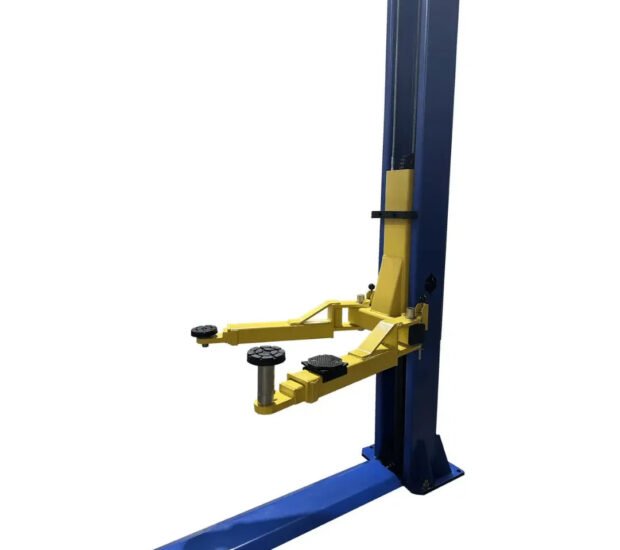

Floorplate two-post rated 9,000-lb with symmetric arms — built low for tight ceilings.

The "Squeeze" Factor

This is the most critical section for the VP9KFX.

DRIVE-THROUGH WIDTH 110.38"
CLEARANCE HEIGHT 112"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 13.1" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Low-ceiling friendly

The floorplate build fits lower ceilings — still measure yours — and anchors into at least four inches of cured concrete. See our best 2-post lifts guide.

Tuxedo Valor ($2,420) vs. Challenger VLE10 ($5,733)

Save $3,312.56 with the Tuxedo

FeatureTUXEDO VALORCHALLENGER VLE10
Lifting Capacity 9,000 lbs 10,000 lbs
Power 220V 208V / 230V

The Lab Take:

The Tuxedo offers solid value and will handle most home garage needs. You will save $3,312.56 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the Challenger.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

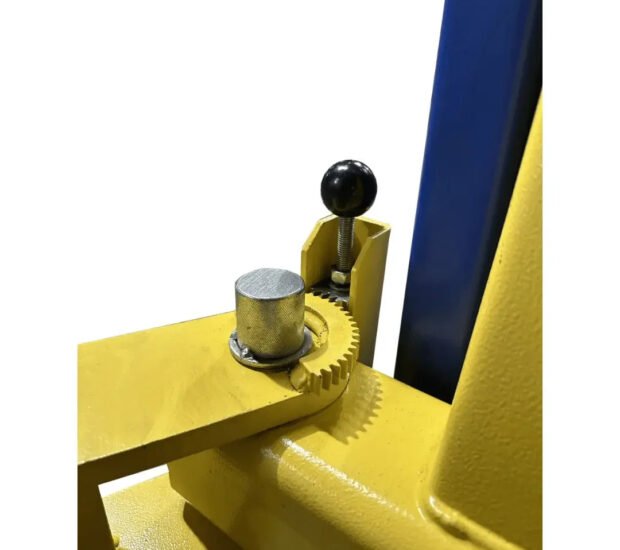

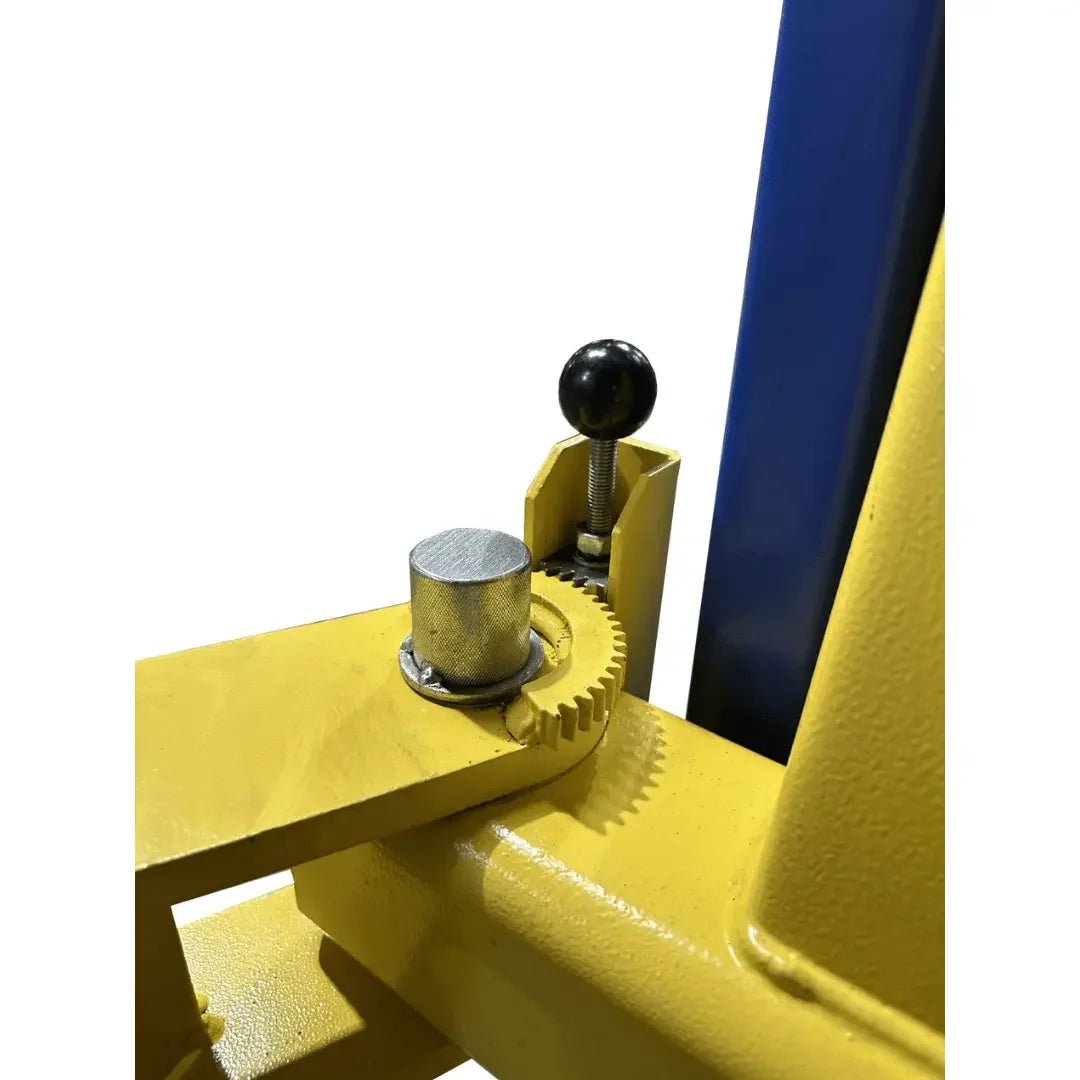

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

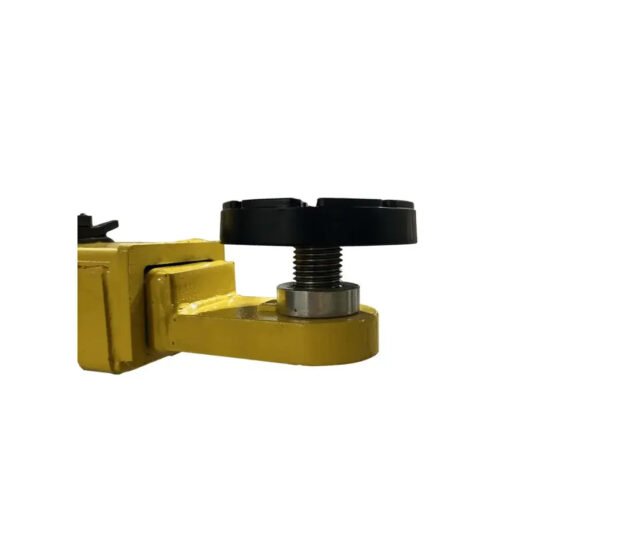

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

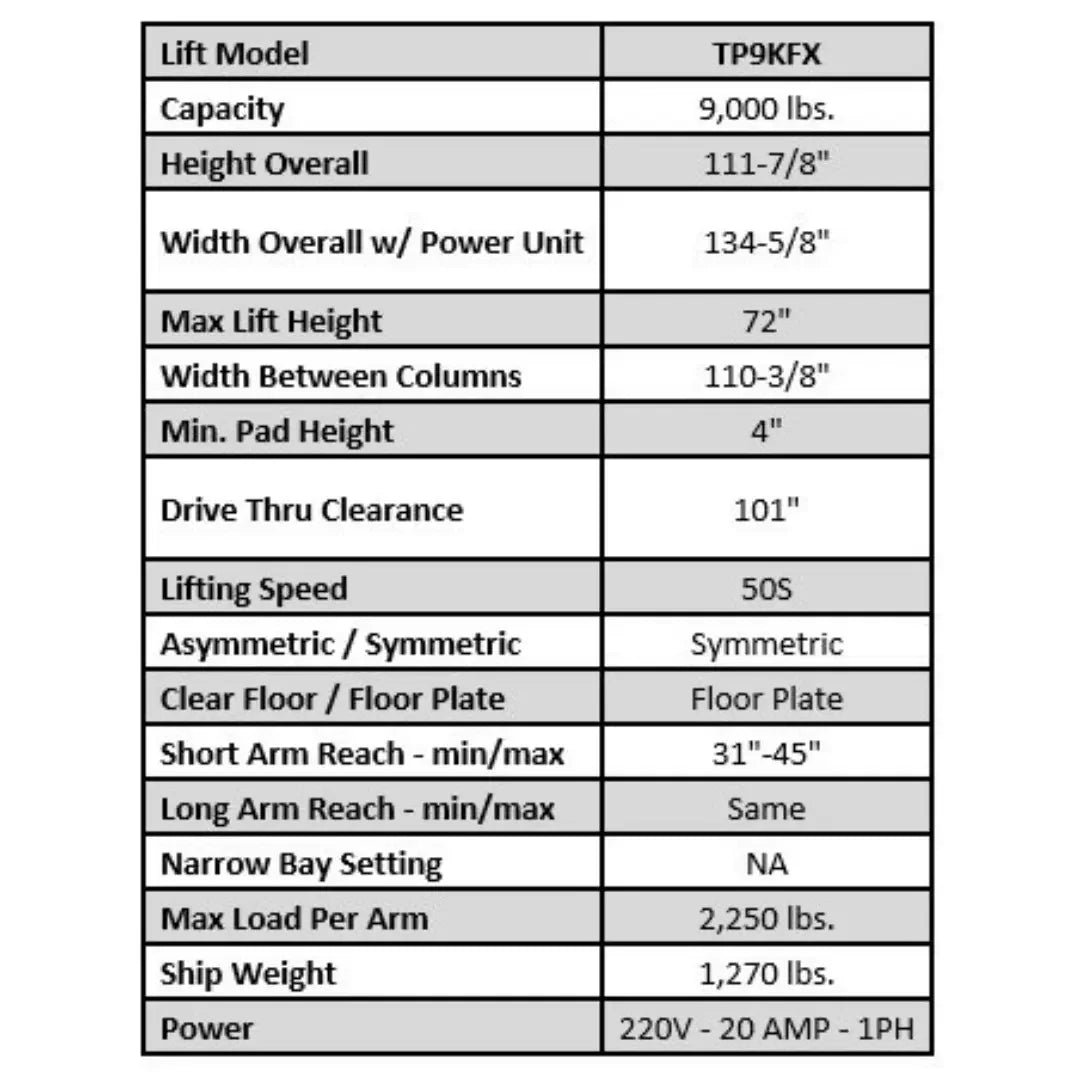

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

9000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

”

Measure from garage door to back wall

Overall Width

”

Fits in standard single car bay

Drive-Through Width

110.38”

Restrictive – tight for wide vehicles

Max Rise Height

72”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide

Customer Builds

Real installations from real garages

Customer Install #1

Customer Install #2

Customer Install #3
