Tuxedo 2-Post Electric/Hydraulic Clear Floor Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KAC-TUX
Model: TP9KAC-TUX
Key Specifications
9000 lbs
Capacity
50 Sec
Rise Time
220V
Power
72”
Max Rise
$2890.00
– Ships in 2-3 Business Days
Fitment Check
”
Narrow Bay Compatible
”
Standard Garage Depth
”
Depth @ 3000 PSI
72”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
77
/100
The Verdict:
The Tuxedo TP9KAC-TUX is Tuxedo’s standard-package 9,000-lb clearfloor asymmetric two-post — the same open-floor, door-clearing arm setup as the TP9KACX in Tuxedo’s core trim. Symmetric or a lower floorplate might suit you instead: see the TP9KSCX and TP9KF-TUX. Runs on a 220V single-phase circuit and ships directly from us.
- Home and pro shops that want an open, clear bay floor
- DIYers doing suspension, brake, and exhaust work (full stand-up access)
- Anyone who wants a shop-grade two-post at a home-shop price
- Low-ceiling garages — a floorplate model fits lower
- Anyone who can’t run a 220V circuit
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time
A 220V single-phase power unit raises the asymmetric carriages on equalized cables, with the clearfloor layout leaving the bay open between the columns.
Safety Lock System

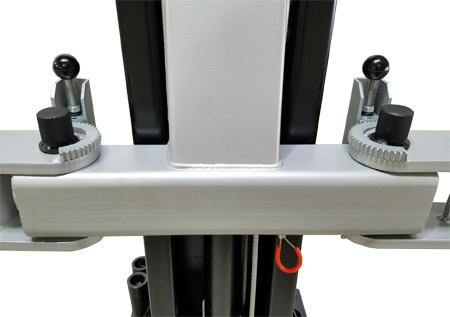

Automatic mechanical safety locks hold the vehicle on steel stops through the rise, released from a single point.
Structural Integrity
Clearfloor asymmetric two-post rated 9,000 lb, with the columns and arms set so doors clear the posts on load and unload.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 9000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | ” | Measure from garage door to back wall |
Overall Width | ” | Fits in standard single car bay |
Drive-Through Width | 93.7” | Restrictive – tight for wide vehicles |
Max Rise Height | 72” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 50 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | ” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
