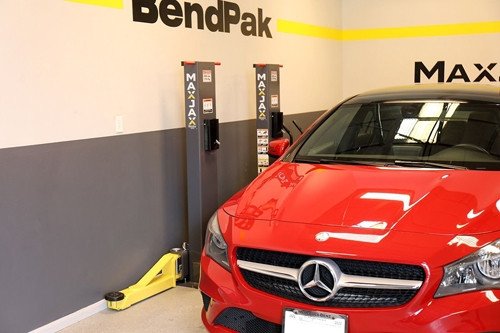

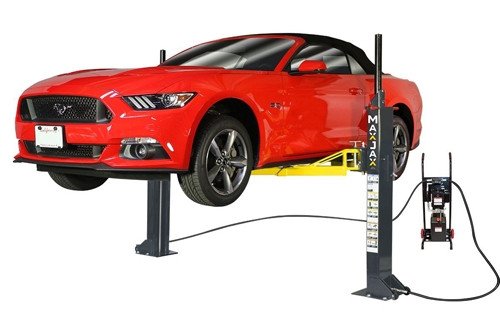

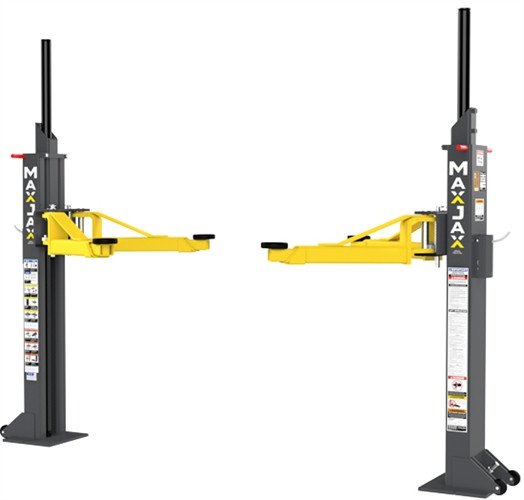

MaxJax® M7K Portable Two Post Garage Lift – Standard Package
Model: M7K-01
Key Specifications
7000 lbs
Capacity
45 Sec
Rise Time
110-220 VAC / 50-60 Hz. / 1 Ph. / 15 Amps
Power
47.25”
Max Rise
$5195.00
– Ships in 2-3 Business Days
Fitment Check
”
Narrow Bay Compatible
”
Standard Garage Depth
4”
Depth @ 3000 PSI
42.25”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
79
/100
The Verdict:
The MaxJax M7K-01 is the Standard package of the M7K portable two-post — a genuine 7,000-lb two-post lift that gives full undercarriage access, then unbolts and stores away when you need the garage back. As the entry package it’s the lowest-cost way into the M7K. All packages share the same lift and roughly 45 inches of rise; they differ by the adapters and accessories included, so match the package to the vehicles you service. Compare the Deluxe M7K-02 and 110V Ultimate.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work

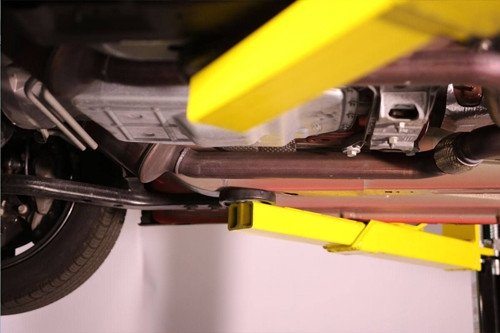

- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

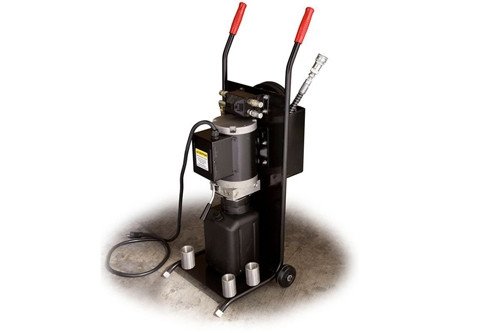

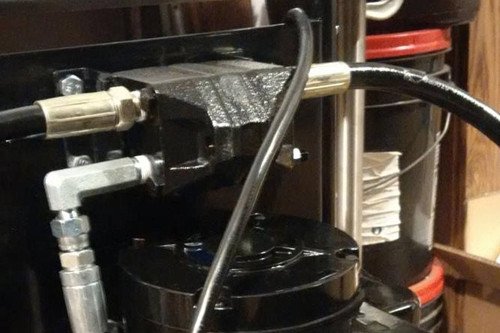

A 110V or 220V electric-hydraulic power unit raises the two independent columns in sync; the compact design is what lets the M7K come back out when you’re done.
Safety Lock System

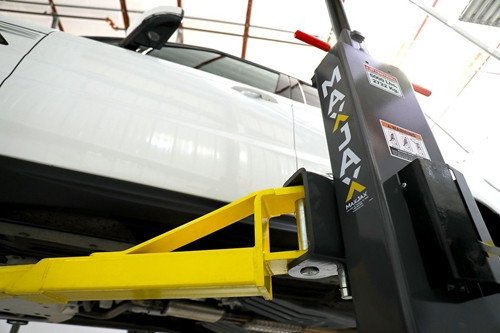

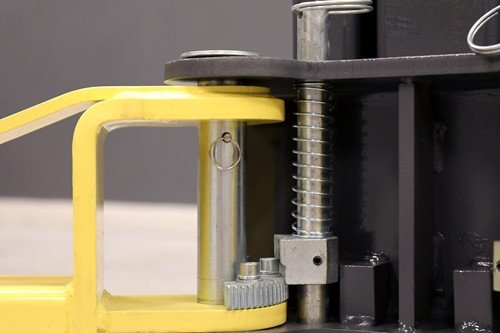

Automatic mechanical safety locks hold the vehicle on steel stops through the rise — a true two-post lock system in a portable frame.
Structural Integrity

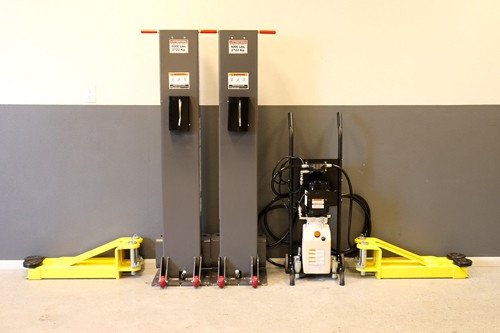

Portable two-post rated 7,000 lb with about 45 inches (3.75 ft) of rise — it anchors into the slab like a full two-post but unbolts and stores away when not in use.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 7000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | ” | Measure from garage door to back wall |
Overall Width | ” | Fits in standard single car bay |
Drive-Through Width | 74” | Restrictive – tight for wide vehicles |
Max Rise Height | 47.25” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 45 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
