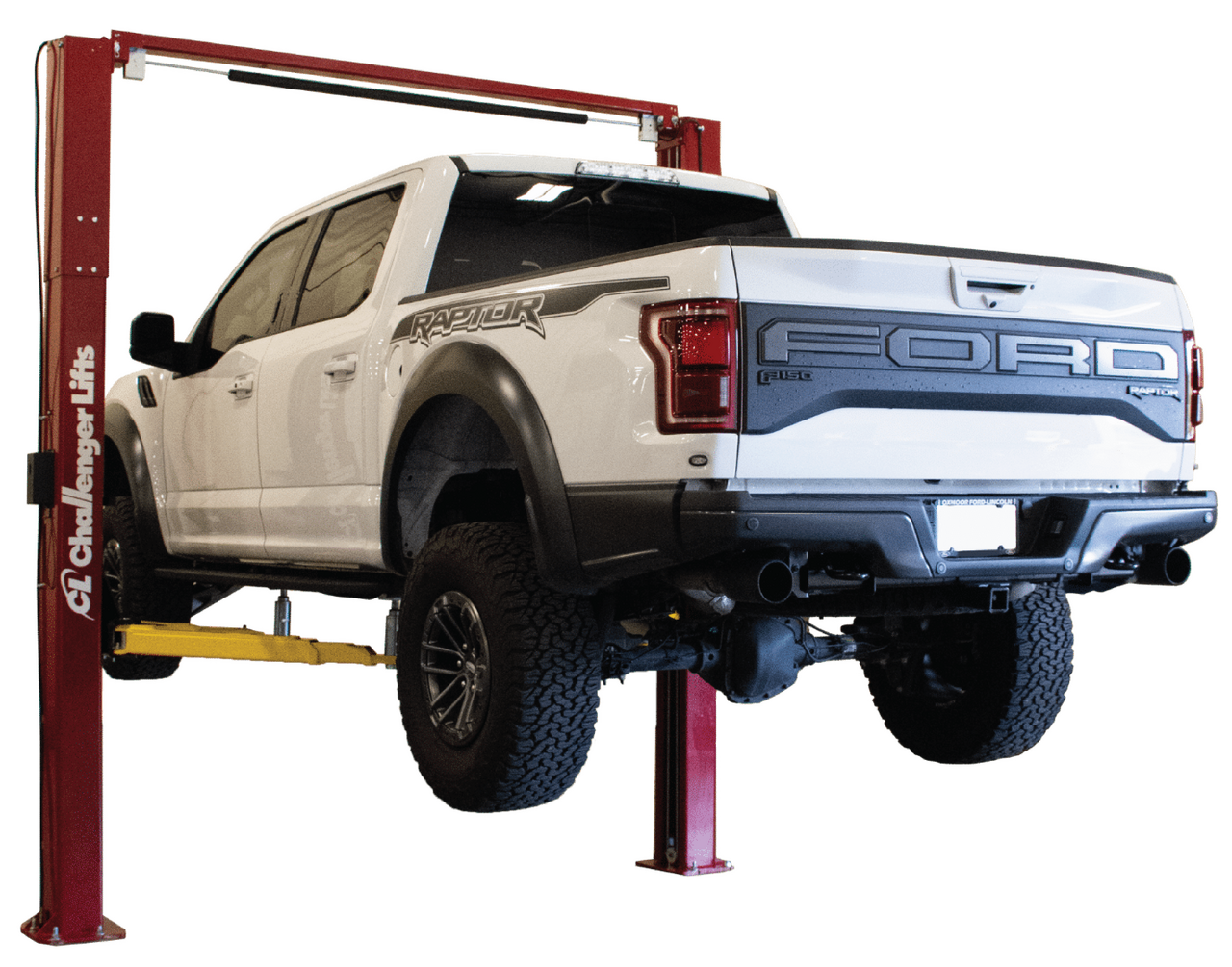

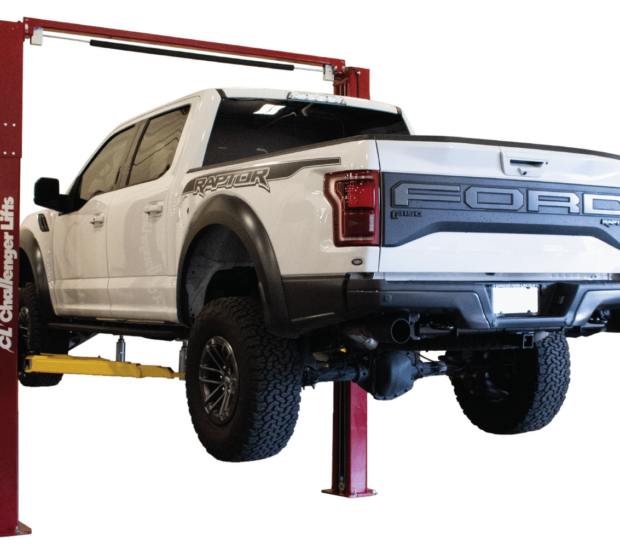

Challenger VLE10 Versymmetric® ALI 2 Post Car Lift 10,000 Lbs
Model: VLE10
Key Specifications
10000 lbs
Capacity
44 Sec
Rise Time
208V / 230V
Power
74.75”
Max Rise
$5732.56
– Ships in 2-3 Business Days
Fitment Check
131.625”
Narrow Bay Compatible
”
Standard Garage Depth
4”
Depth @ 3000 PSI
98.375”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
81
/100
The Verdict:

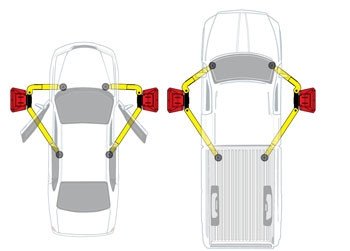

The Challenger VLE10 is the value entry into Challenger’s commercial-grade two-post range — an ALI lift with Versymmetric® arms (3-stage front, 2-stage rear) that work in both symmetric and asymmetric positions from a single bay. Rated 10,000 lb, it rises 74.75 inches on a 208–230V single-phase motor and stands 143.9 inches overall (an extended-height option reaches 167.9″). For adjustable-width columns and Challenger’s directSPOT arms, step up to the CL10AV3.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Commercial shops servicing trucks and fleet vehicles
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

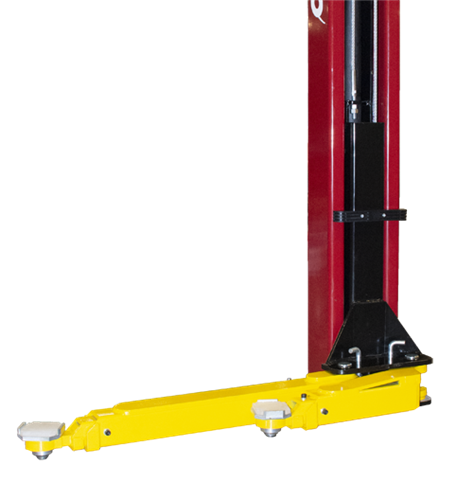

A 2HP, 208–230V single-phase power unit drives the VLE10, with the Versymmetric arm set — 3-stage front and 2-stage rear — configurable symmetric or asymmetric.
Safety Lock System
ALI/ETL certified to the ANSI safety standard, with automatic mechanical locks holding the vehicle on steel stops through the rise.
Structural Integrity
Versymmetric two-post rated 10,000 lb, 74.75-inch rise, 143.875-inch overall height (167.875 extended), 110.25 inches between columns, 98.375-inch drive-through.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 10000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 131.625” | Measure from garage door to back wall |
Overall Width | 131.625” | Fits in standard single car bay |
Drive-Through Width | 98.375” | Restrictive – tight for wide vehicles |
Max Rise Height | 74.75” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 44 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3500PSI | Must be fully cured (28 days minimum) |
