BendPak Low-Rise Pad Car Lift, 10,000-Lb. Capacity, Model# LR-10000
Model: LR-10000
Key Specifications
10000 lbs
Capacity
35 Sec
Rise Time
115/208-230
Power
24”
Max Rise
$5595.00
– Ships in 2-3 Business Days
Fitment Check
85”
Narrow Bay Compatible
82.65”
Standard Garage Depth
4.25”
Depth @ 3000 PSI
23”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
71
/100
The Verdict:

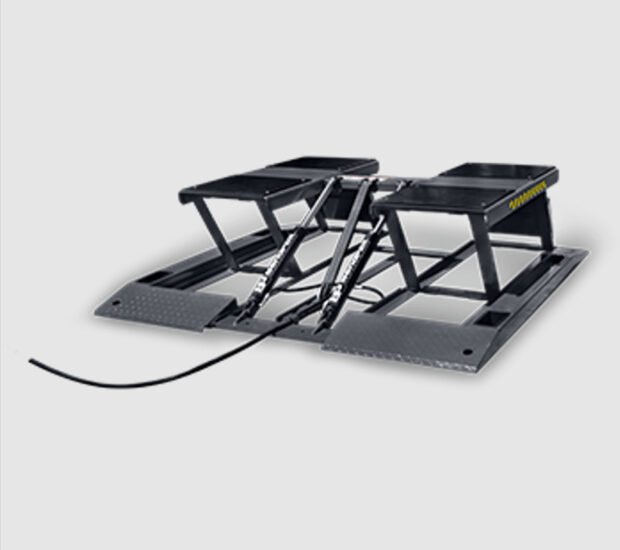

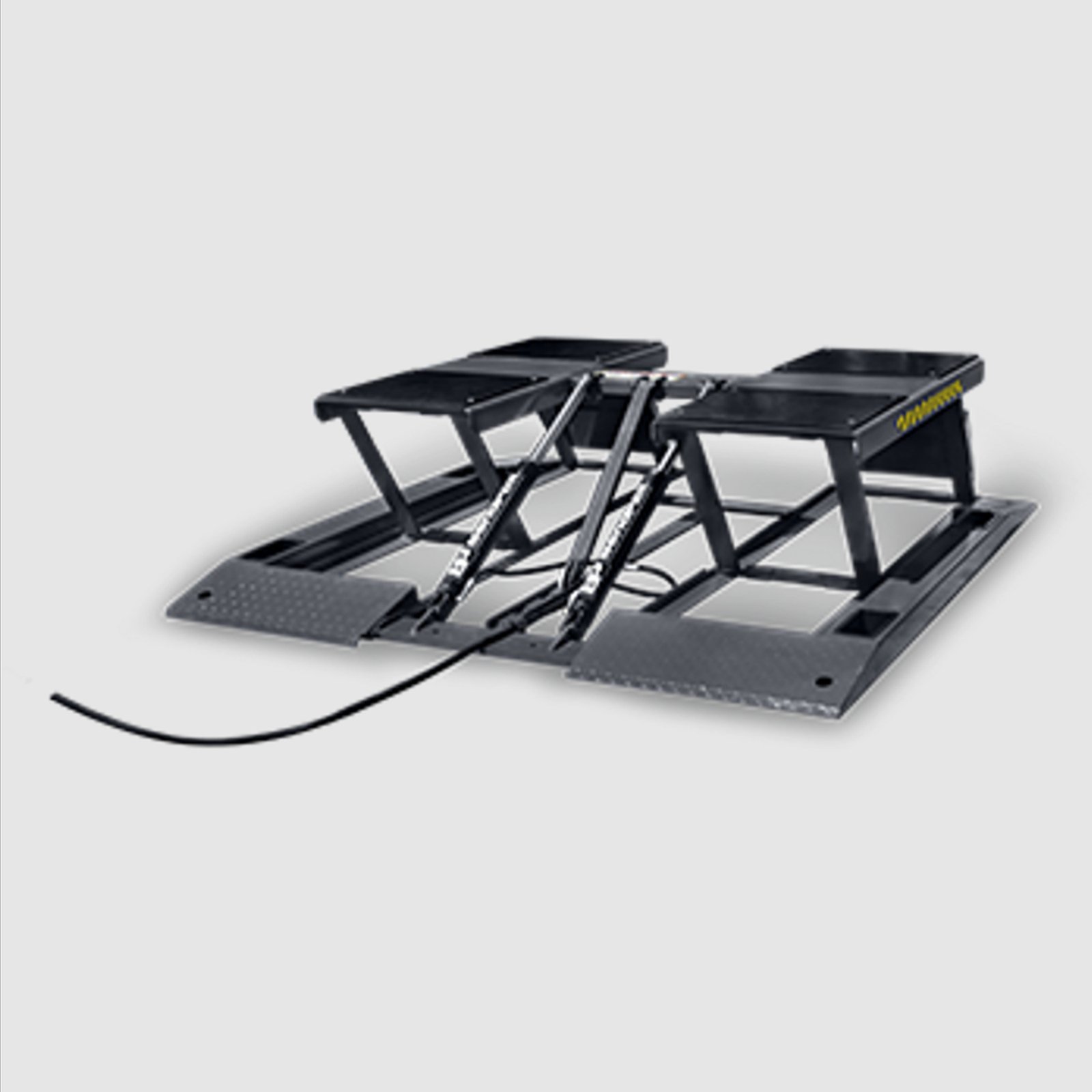

The BendPak LR-10000 is a 10,000-lb low-rise pad lift — a pair of drive-on pads that raise a vehicle about 23 inches (32 with the stacking blocks) for wheel, brake, and general service at a comfortable seated height. Collapsed to just 4.5 inches it sits nearly flush and stores easily, and its 10,000-lb capacity comfortably covers full-size trucks. It’s ALI-certified and runs on a 208–230V single-phase circuit. This isn’t a stand-up lift — for full undercarriage access you’d want a two-post — but for fast wheels-off work in a shop that needs the floor back afterward, a low-rise pad like this is hard to beat.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access
- Users willing to drill anchor holes into concrete
- Commercial shops servicing trucks and fleet vehicles
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

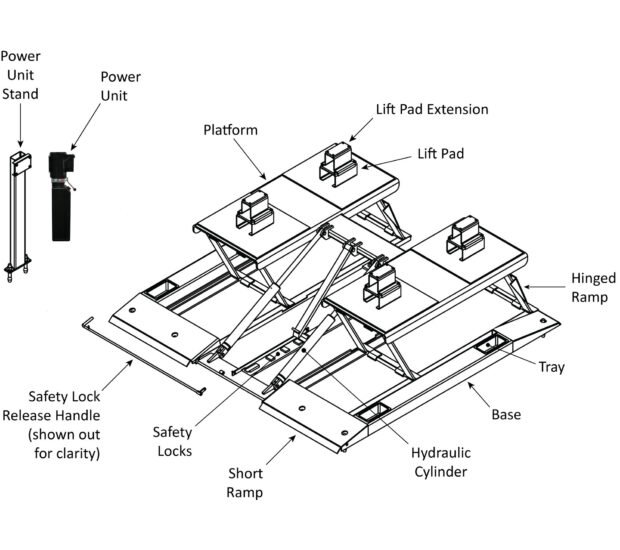

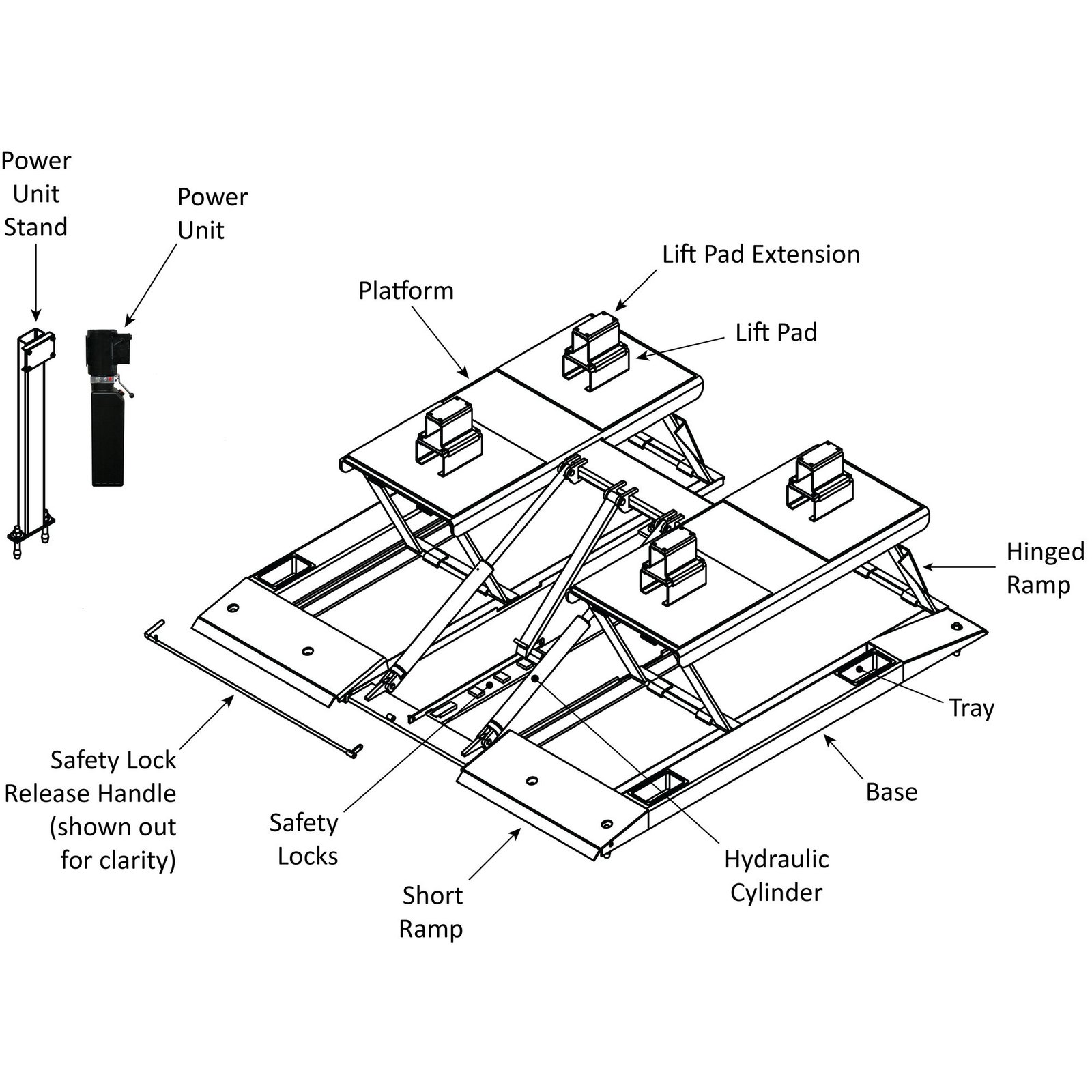

A 208–230V single-phase power unit raises both pads together, and the low-profile scissor mechanism collapses to 4.5 inches so a vehicle can drive straight on.
Safety Lock System

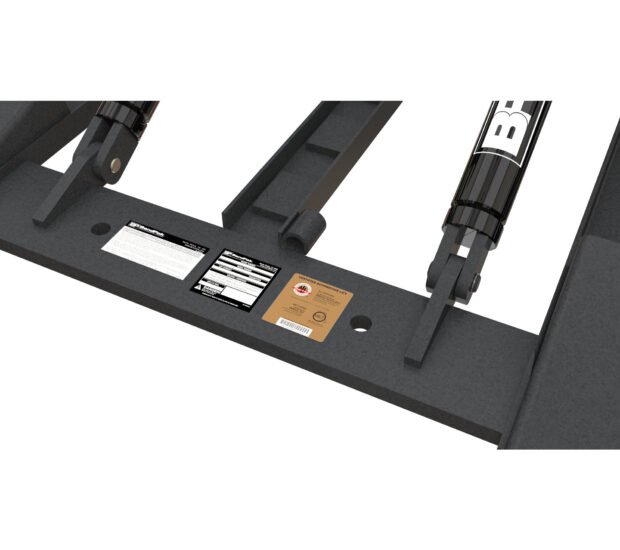

ALI-certified, with mechanical safety locks holding the pads at height rather than relying on hydraulic pressure.
Structural Integrity
Low-rise, drive-on pad design rated 10,000 lb, raising to 23 inches (32 inches with the included stacking blocks) and collapsing to 4.5 inches for near-flush storage.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 10000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 85” | Measure from garage door to back wall |
Overall Width | 85” | Fits in standard single car bay |
Drive-Through Width | 65” | Restrictive – tight for wide vehicles |
Max Rise Height | 24” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 35 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4.25” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
