Atlas® Platinum PVL-9BP ALI Certified Base-Plate 2 Post Lift 9,000 Lbs
Model: PVL-9BP
Key Specifications
9000 lbs
Capacity
Sec
Rise Time
Power
4”
Max Rise
$5499.00
– Ships in 2-3 Business Days
Fitment Check
8”
Narrow Bay Compatible
”
Standard Garage Depth
4”
Depth @ 3000 PSI
74”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
81
/100
The Verdict:
The Atlas PVL-9BP is a 9,000-lb ALI-certified baseplate two-post from Atlas’s Platinum line — low-ceiling friendly. It’s a baseplate two-post — the columns tie together at the floor, so it stands lower and suits low-ceiling garages, with symmetric arms. It carries ALI certification — third-party testing to the ANSI safety standard, the credential that most separates shop-grade from bargain. Runs on a 220V single-phase circuit. Compare it with the PVL-10.
- Professional mechanics and shop owners
- Serious DIYers who do suspension, brake, and exhaust work
- Anyone who needs full undercarriage access

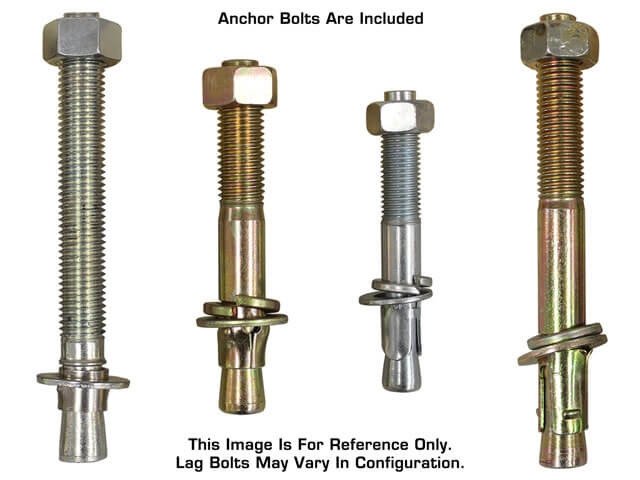

- Users willing to drill anchor holes into concrete
- Anyone who cannot drill into their concrete floor
- Users with concrete less than 4″ thick or with major cracks
- People who want a simple, no-install solution
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

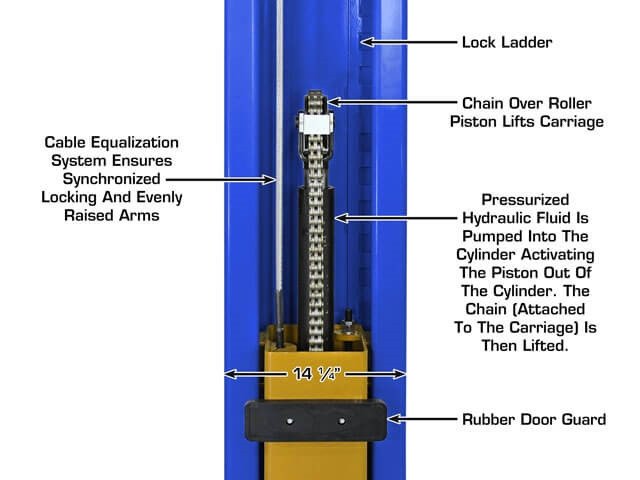

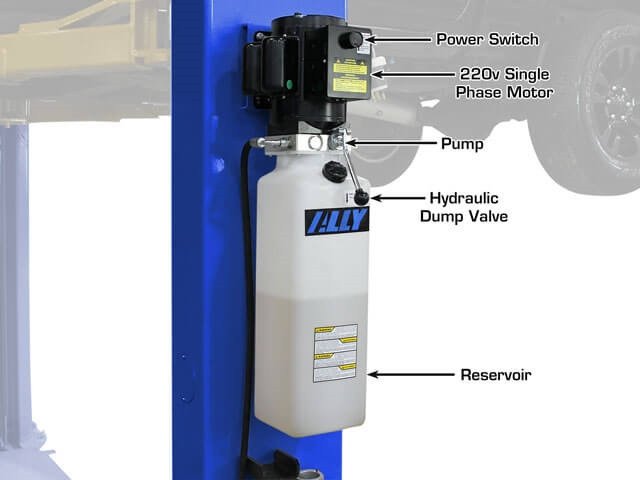

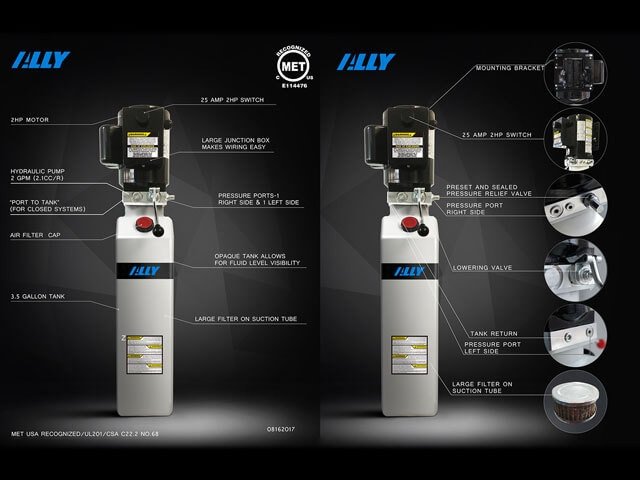

A 220-volt single-phase power unit drives both carriages in sync via equalized cables; the baseplate routes the equalization across the floor, keeping the lift low.
Safety Lock System

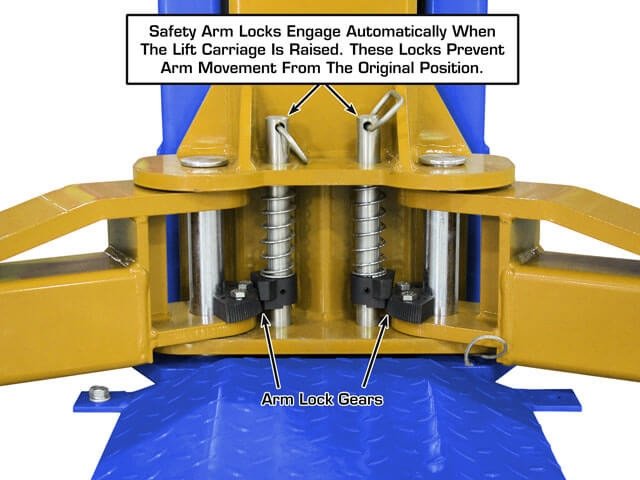

Multi-position mechanical safety locks hold the vehicle on steel stops through the full rise.
Structural Integrity

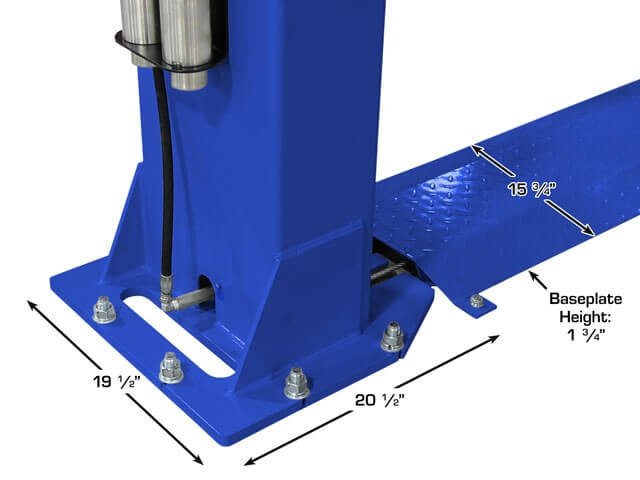

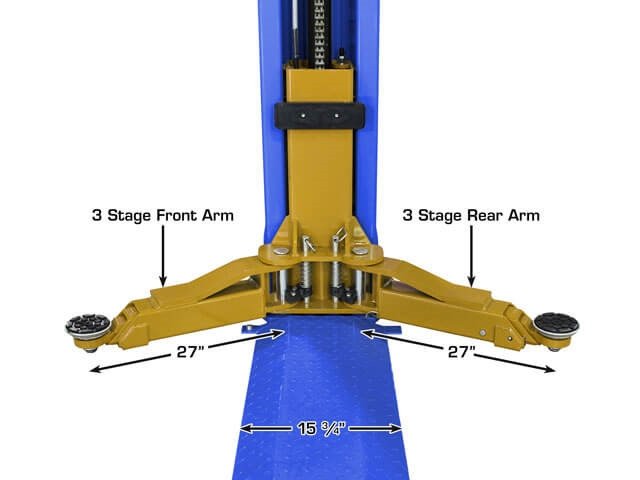

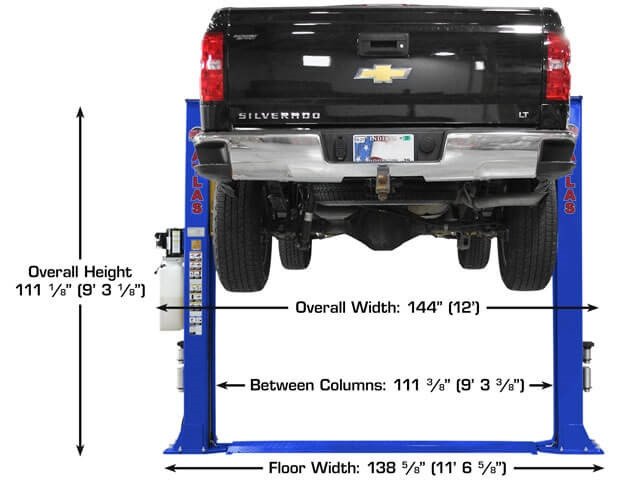

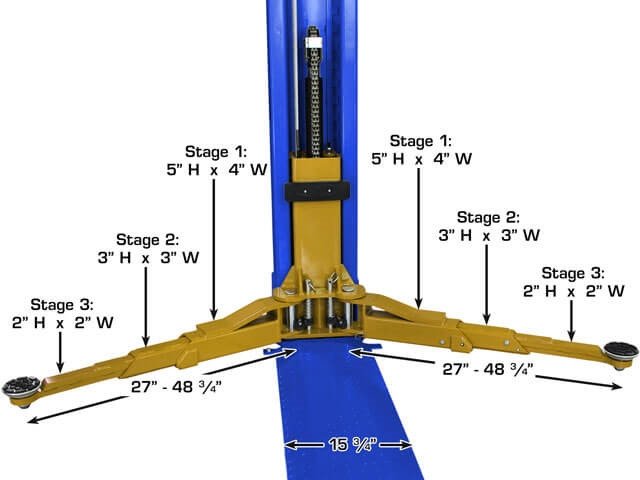

Baseplate two-post rated 9,000-lb, with symmetric arms. The floor-level cross-member keeps overall height down for low-ceiling garages.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 9000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 8” | Measure from garage door to back wall |
Overall Width | 8” | Fits in standard single car bay |

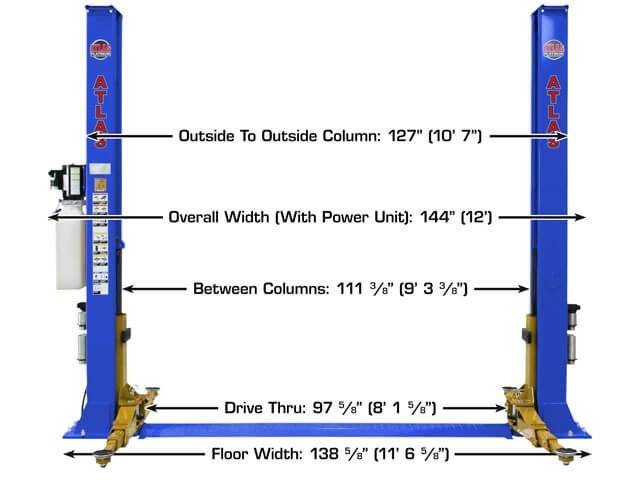

Drive-Through Width | 97” | Restrictive – tight for wide vehicles |
Max Rise Height | 4” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
