Atlas® Garage Pro 9000 Service/Parking 4 Post Lift 9,000 Lbs

Model: Garage Pro 9000

Key Specifications

9000 lbs

Capacity

Sec

Rise Time

110V

Power

”

Max Rise

🔧 Professional installation available — find a certified installer near you

$5199.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

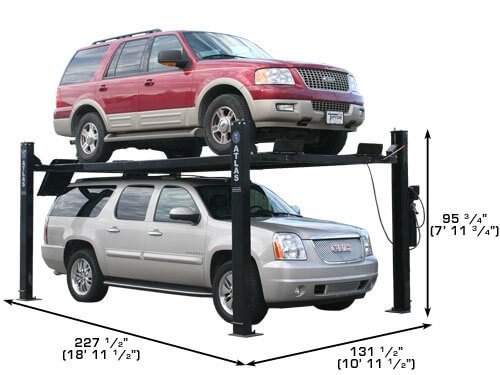

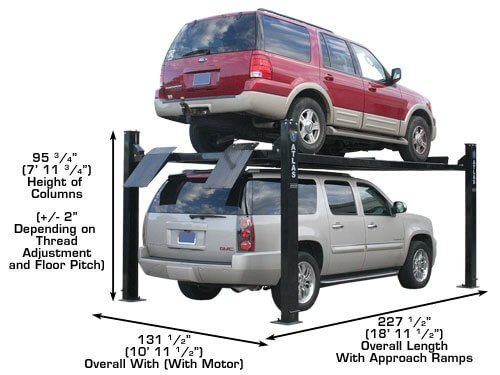

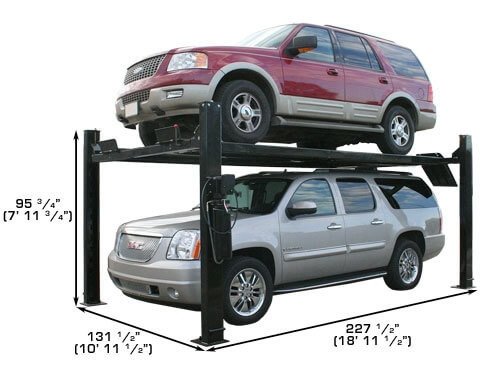

Total Width

131.5”

Narrow Bay Compatible

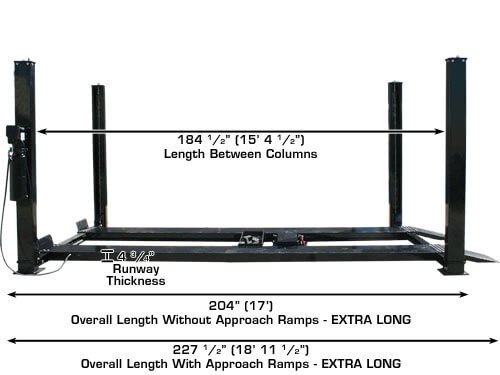

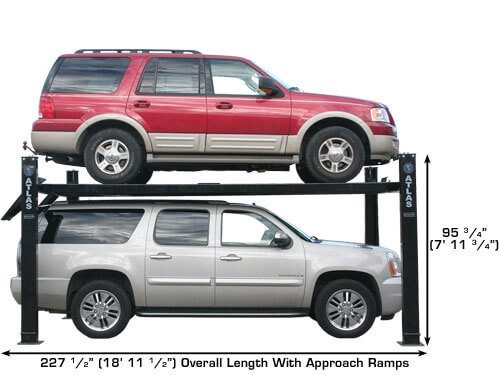

Total Length

227.5”

Standard Garage Depth

Min. Concrete

”

Depth @ 3000 PSI

Min. Ceiling

80”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

78

/100

The Verdict:

The Atlas Garage Pro 9000 is a 9,000-lb four-post service-and-parking lift. It’s a four-post service-and-storage lift — drive-on runways, no arms to set, stable enough to store a vehicle on, with a service-and-parking layout. Runs on a 220V single-phase circuit. Compare it with the Apex 9.

  • Who Should Buy It:
  • Homeowners wanting to double their garage parking capacity
  • Car collectors who need to stack vehicles for storage
  • DIY enthusiasts who perform oil changes and basic maintenance
  • Anyone who wants the safest, easiest-to-use lift type
  • Owners of full-size trucks and SUVs
  • Who Should Skip It:
  • Users who need to do wheel-off suspension work (unless you buy bridge jacks)
  • Anyone without at least 4″ of cured concrete
  • Owners of extra-wide vehicles like Ford Raptors or duallys
  • ⚠️ Lab Note:
While 4-post lifts are free-standing, we recommend anchoring to the floor for maximum stability, especially in seismic zones.

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

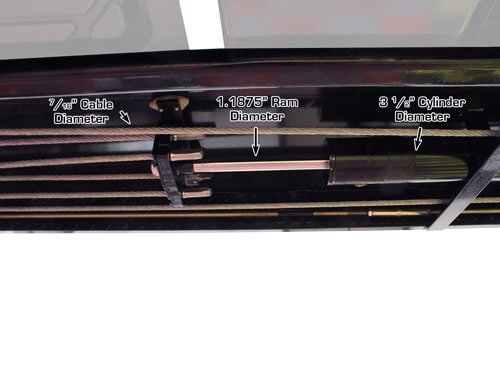

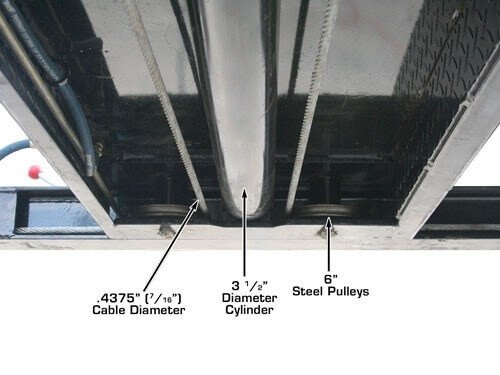

A 220-volt single-phase power unit raises both runways together on equalized cables — drive-on, with no arms to position.

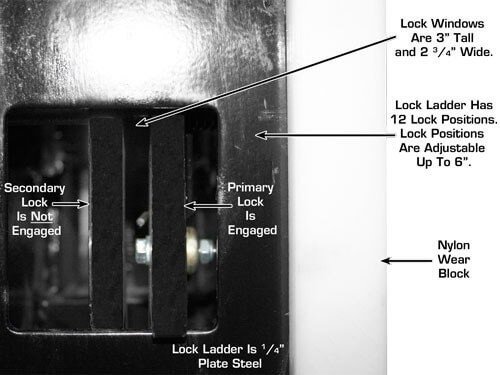

Safety Lock System

Multiple mechanical lock positions hold the runways on steel stops at height for secure long-term storage.

Structural Integrity

Four-post drive-on design rated 9,000-lb for service and storage, carried on the columns rather than slab anchors.

The "Squeeze" Factor

This is the most critical section for the XH-PRO9000.

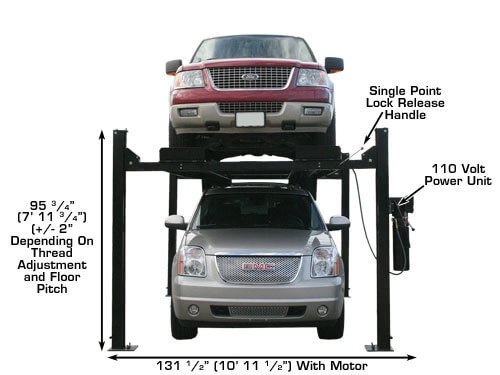

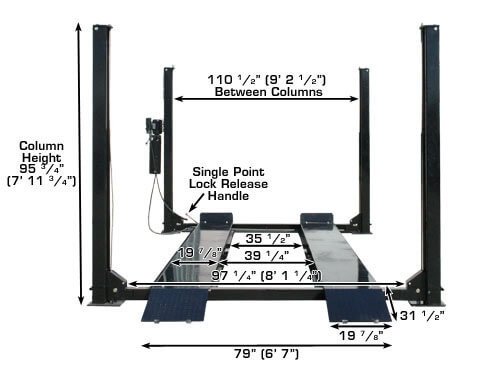

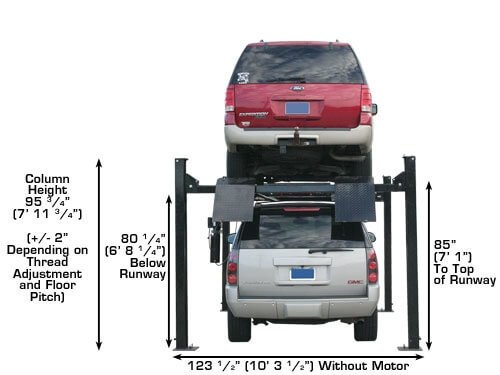

DRIVE-THROUGH WIDTH 110.50"

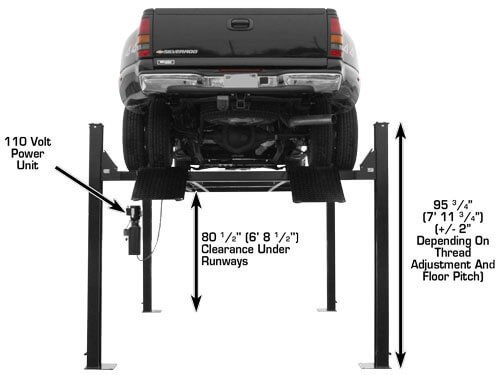

CLEARANCE HEIGHT 80"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 13.2" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Fit & setup

Freestanding on flat concrete; confirm the footprint and, for storage, the ceiling height. Compare in our best 4-post lifts guide or all 4-post lifts.

Atlas ® ($5,199) vs. BendPak 12K ($22,295)

Save $17,096.00 with the Atlas

FeatureATLAS ®BENDPAK 12K
Lock Spacing Not specified 3.976 in
Lifting Capacity 9,000 lbs 12,000 lbs
Power 110V 220V

The Lab Take:

The Atlas offers solid value and will handle most home garage needs. You will save $17,096.00 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the BendPak.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

Wipe down the inside of the columns. Dust mixed with grease turns into a grinding paste that wears out your slider blocks. Check for debris around the runways and base plates.

Monthly

Check Cable Tension. You will hear the locks “clicking” as the lift goes up. If one corner clicks later than the others, that cable is loose. Tighten the nut on top of that specific column to level it out. Inspect the safety locks for proper engagement.

Yearly

Inspect the hydraulic hoses for dry rot or cracks. Grease the pulleys (sheaves) if they do not have sealed bearings. Check all bolts and fasteners for tightness. Verify hydraulic fluid levels and condition.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

9000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

131.5”

Measure from garage door to back wall

Overall Width

131.5”

Fits in standard single car bay

Drive-Through Width

110.5”

Restrictive – tight for wide vehicles

Max Rise Height

”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

3000PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide

Customer Builds

Real installations from real garages

Customer Install #1

Customer Install #2

Customer Install #3
