Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 Lbs

Model: 9OHSC-SS

Key Specifications

9000 lbs

Capacity

Sec

Rise Time

Power

4”

Max Rise

🔧 Professional installation available — find a certified installer near you

$3299.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

2”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

”

Depth @ 3000 PSI

Min. Ceiling

142”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

76

/100

The Verdict:

The Atlas 9OHSC-SS is a 9,000-lb symmetric overhead two-post lift. It’s an overhead (clearfloor) two-post — the shutoff beam runs across the top, so plan for the ceiling, with symmetric arms. Runs on a 220V single-phase circuit. Compare it with the 9KOH.

  • Who Should Buy It:
  • Professional mechanics and shop owners
  • Serious DIYers who do suspension, brake, and exhaust work

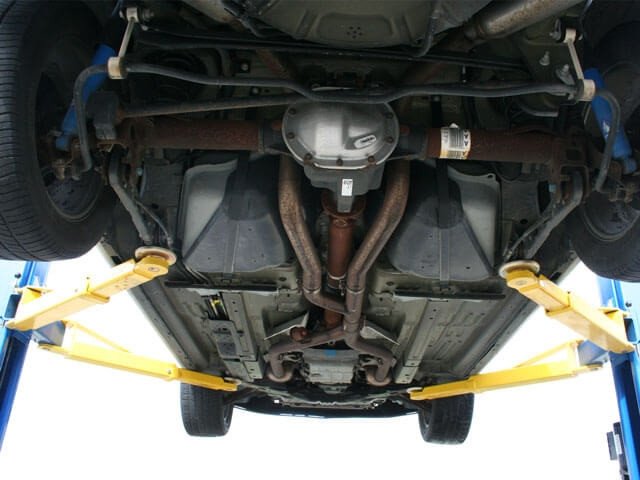

  • Anyone who needs full undercarriage access
  • Users willing to drill anchor holes into concrete
  • Who Should Skip It:
  • Anyone who cannot drill into their concrete floor
  • Users with concrete less than 4″ thick or with major cracks
  • People who want a simple, no-install solution
  • ⚠️ Lab Note:
Concrete quality is critical. Do not install if your floor has major cracks, is less than 4″ thick, or has not fully cured (28 days minimum).

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

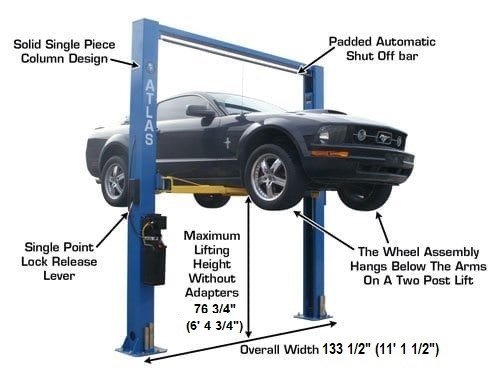

A 220-volt single-phase power unit raises both carriages together on equalized cables, with an overhead shutoff bar at the top of the columns.

Safety Lock System

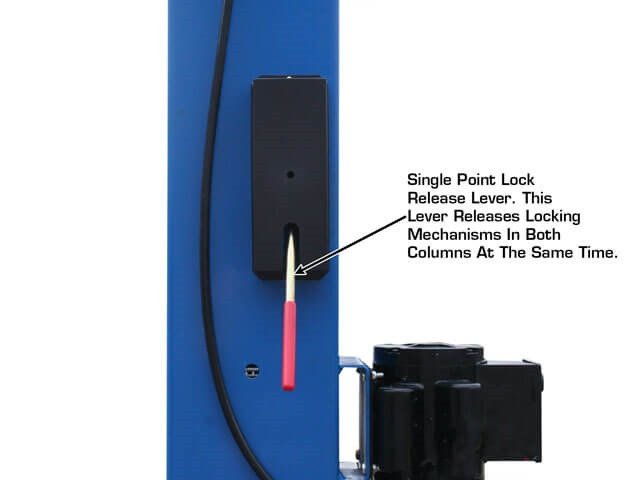

Automatic carriage locks engage at intervals and hold the vehicle on mechanical stops rather than hydraulic pressure.

Structural Integrity

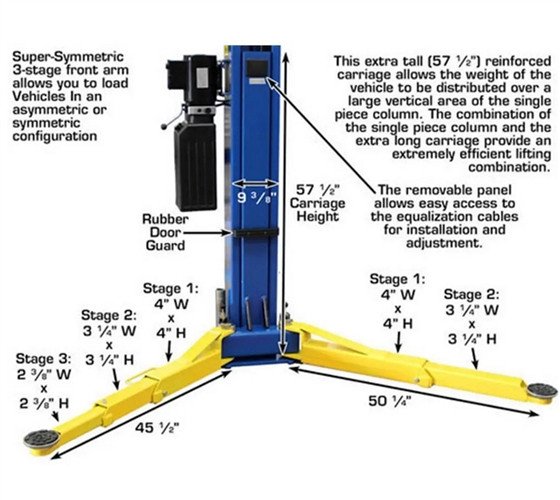

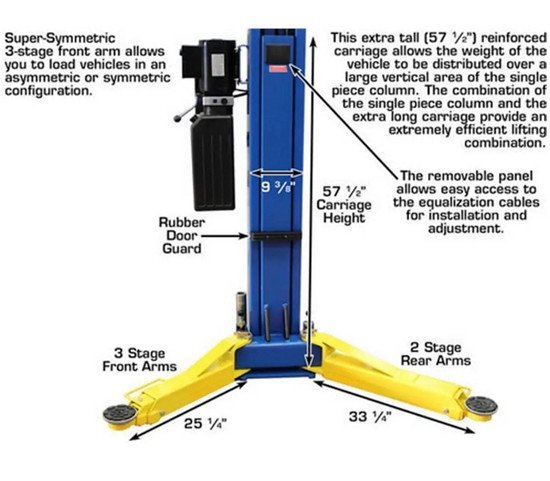

Overhead (clearfloor) two-post rated 9,000-lb, with symmetric arms and an open floor between the columns.

The "Squeeze" Factor

This is the most critical section for the ATTD-9OHSC-SS.

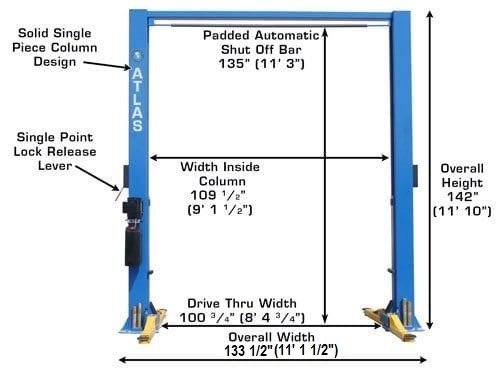

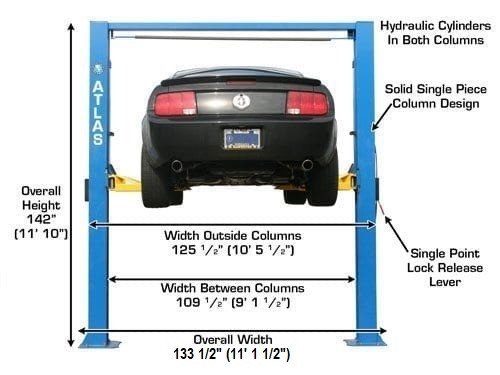

DRIVE-THROUGH WIDTH 100.00"

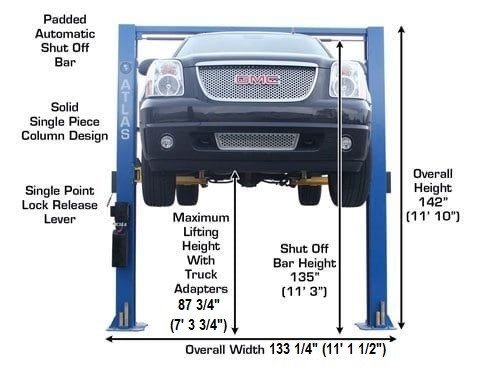

CLEARANCE HEIGHT 142"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 8.0" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Mind the ceiling

Measure your ceiling against the lift plus the vehicle, and anchor into at least four inches of cured concrete. See our best 2-post lifts guide.

Atlas ® ($3,299) vs. Challenger VLE10 ($5,733)

Save $2,433.56 with the Atlas

FeatureATLAS ®CHALLENGER VLE10
Lifting Capacity 9,000 lbs 10,000 lbs
Power Not specified 208V / 230V

The Lab Take:

The Atlas offers solid value and will handle most home garage needs. You will save $2,433.56 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the Challenger.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

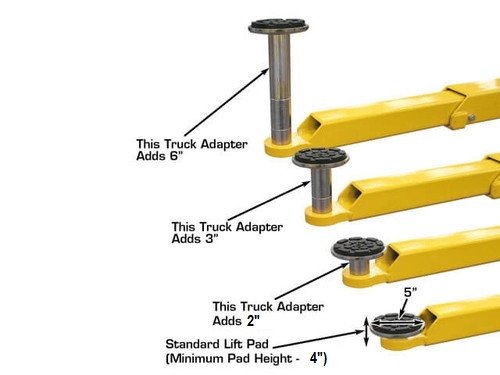

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

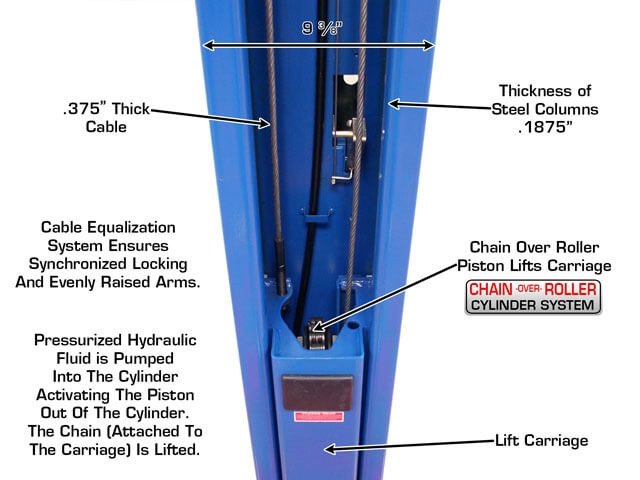

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

9000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

2”

Measure from garage door to back wall

Overall Width

2”

Fits in standard single car bay

Drive-Through Width

100”

Restrictive – tight for wide vehicles

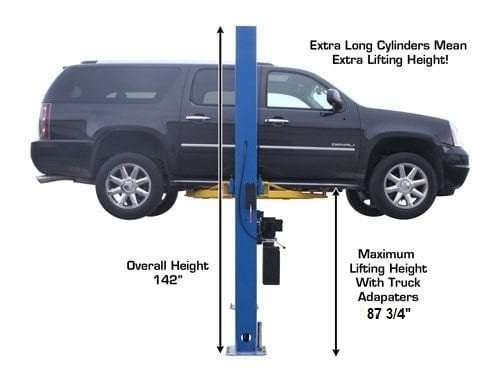

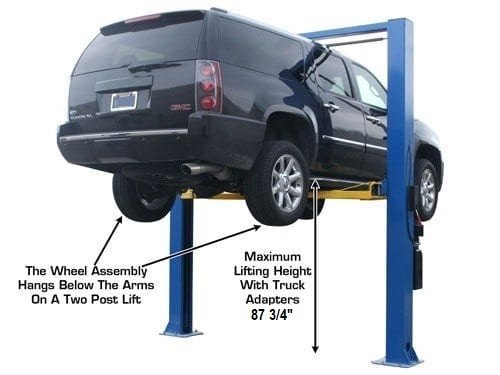

Max Rise Height

4”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

3000PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide
