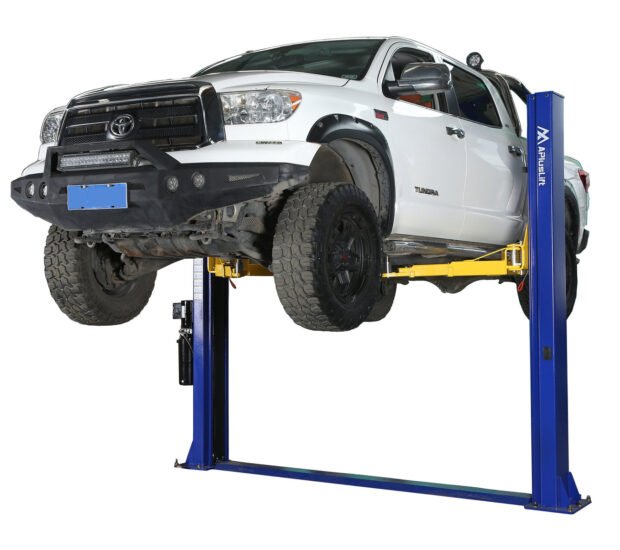

APlusLift 10,000LB 2-Post Floor Plate Heavy Duty Car Lift with 3 Year Warranty

Model: HW-10KBP-A

Key Specifications

10000 lbs

Capacity

50 Sec

Rise Time

220V

Power

81”

Max Rise

🔧 Professional installation available — find a certified installer near you

$2099.00

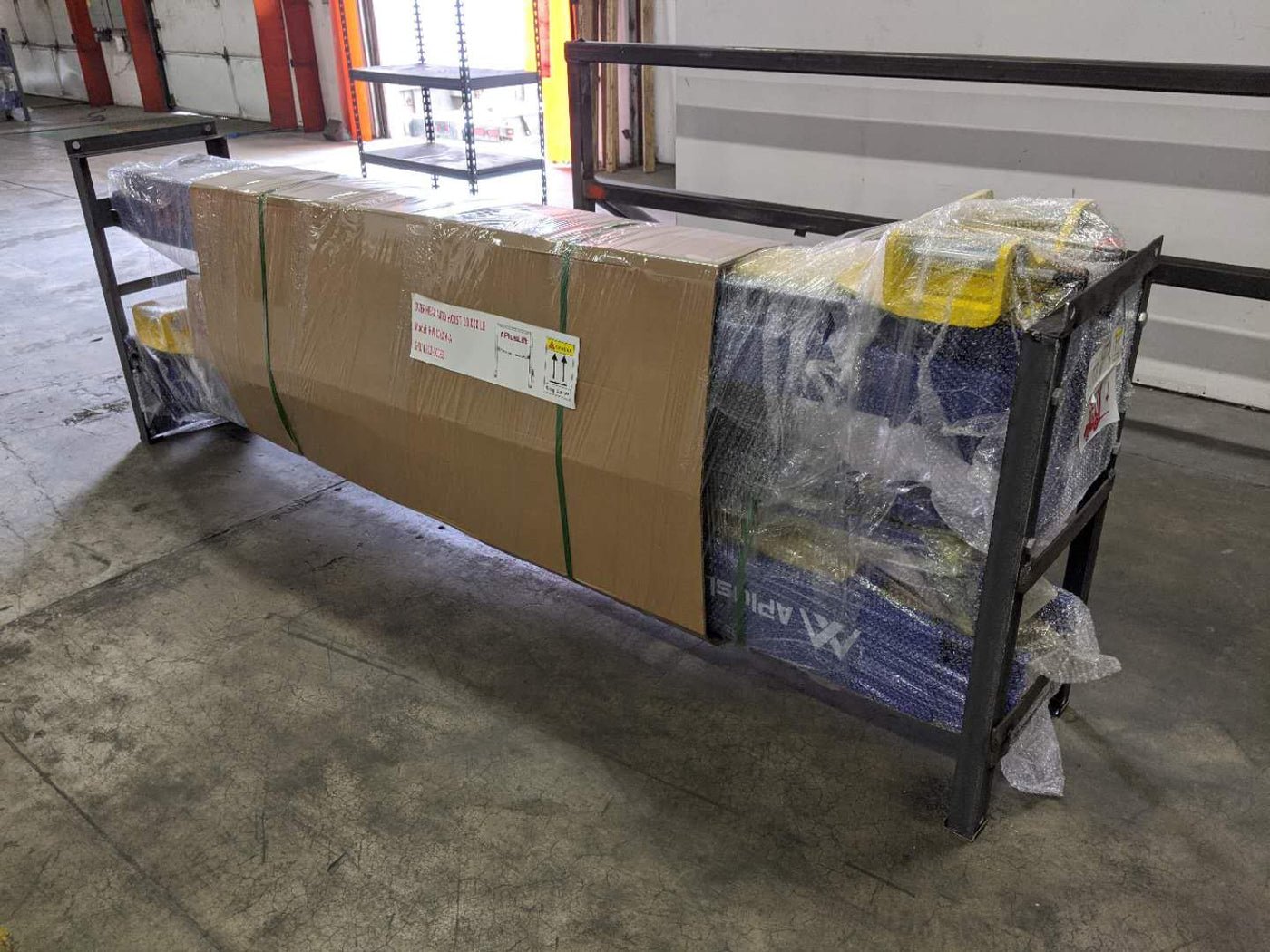

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

134.31”

Narrow Bay Compatible

Total Length

”

Standard Garage Depth

Min. Concrete

6”

Depth @ 3000 PSI

Min. Ceiling

113.62”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

78

/100

The Verdict:

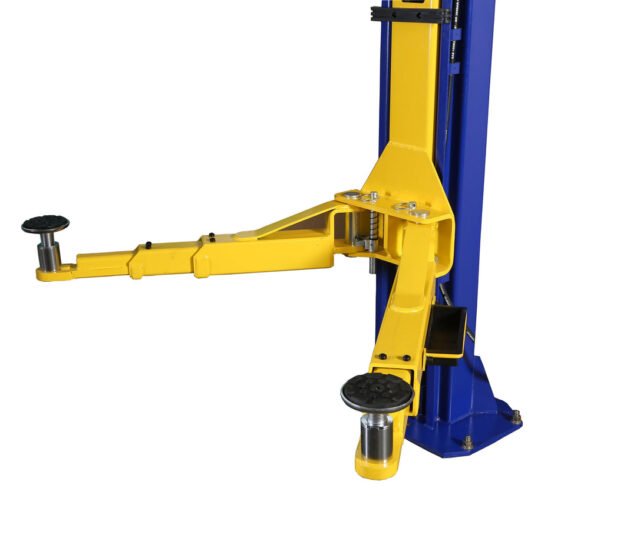

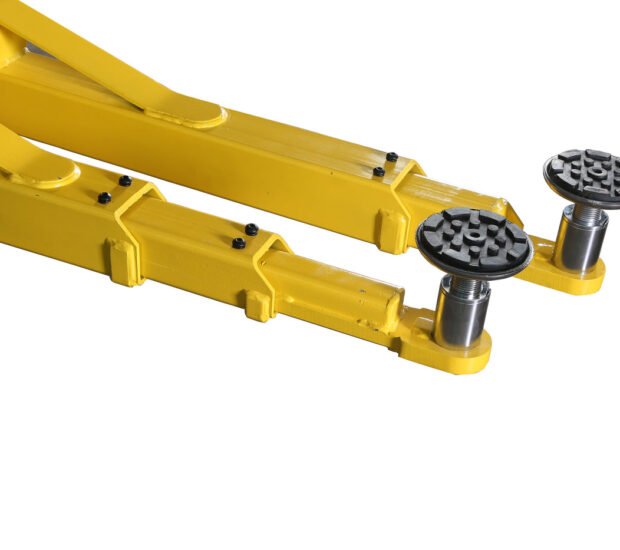

The APlusLift HW-10KBP-A is the baseplate version of APlusLift’s value 10,000-lb two-post — and at just 113⅝ inches overall it fits low-ceiling garages that can’t take an overhead lift. Combo arms work symmetric or asymmetric, it lifts to 81 inches with adapters, and it carries the same 3-year warranty. For an overhead build with a clear floor, compare the HW-10KOH-A.

  • Who Should Buy It:
  • Professional mechanics and shop owners
  • Serious DIYers who do suspension, brake, and exhaust work
  • Anyone who needs full undercarriage access
  • Users willing to drill anchor holes into concrete
  • Commercial shops servicing trucks and fleet vehicles
  • Who Should Skip It:
  • Anyone who cannot drill into their concrete floor
  • Users with concrete less than 4″ thick or with major cracks
  • People who want a simple, no-install solution
  • ⚠️ Lab Note:
Concrete quality is critical. Do not install if your floor has major cracks, is less than 4″ thick, or has not fully cured (28 days minimum).

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

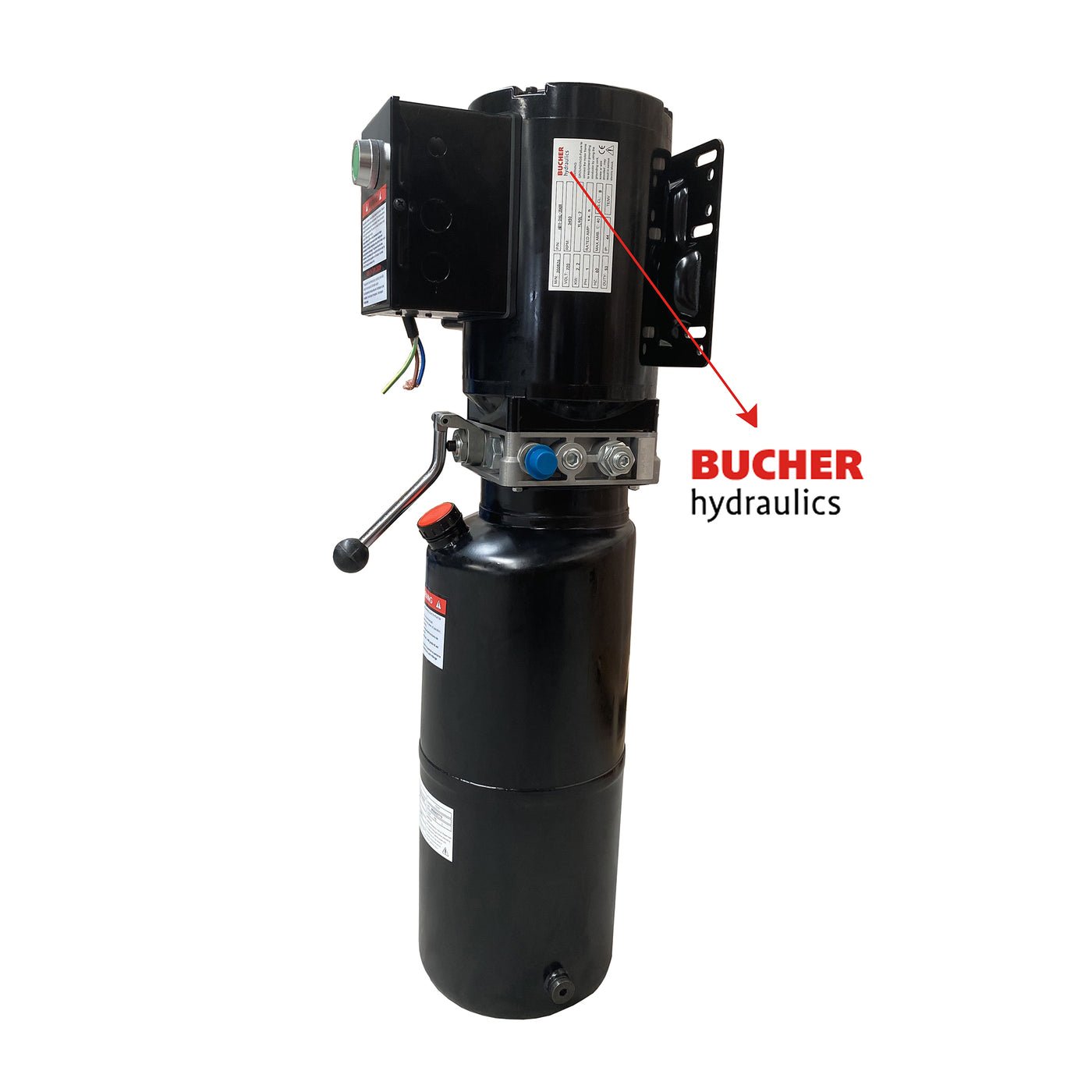

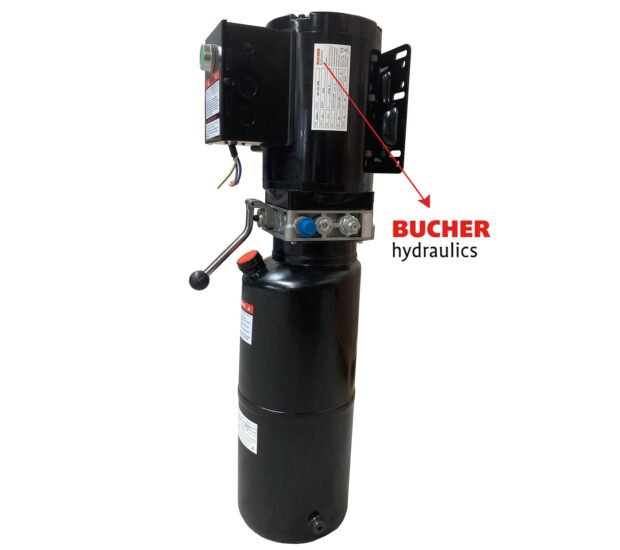

A 220V single-phase, 3 HP power unit drives the combo arms; the baseplate routes the equalization across the floor, keeping overall height to just 113⅝ inches.

Safety Lock System

Automatic mechanical safety locks hold the vehicle on steel stops through the rise, backed by a 3-year warranty.

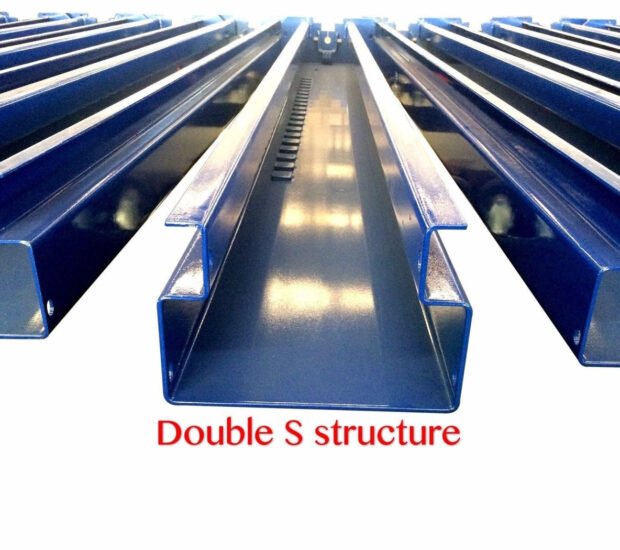

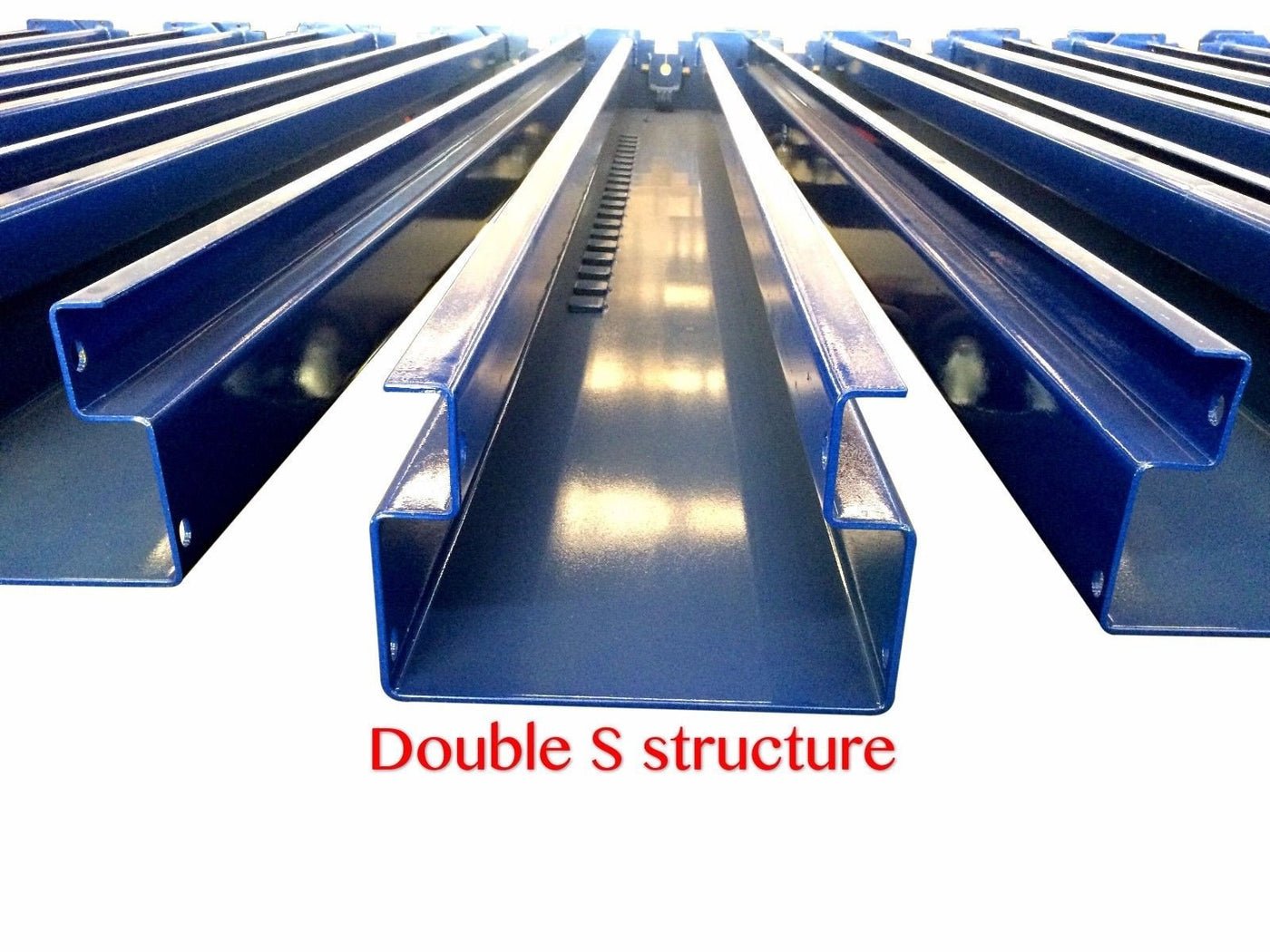

Structural Integrity

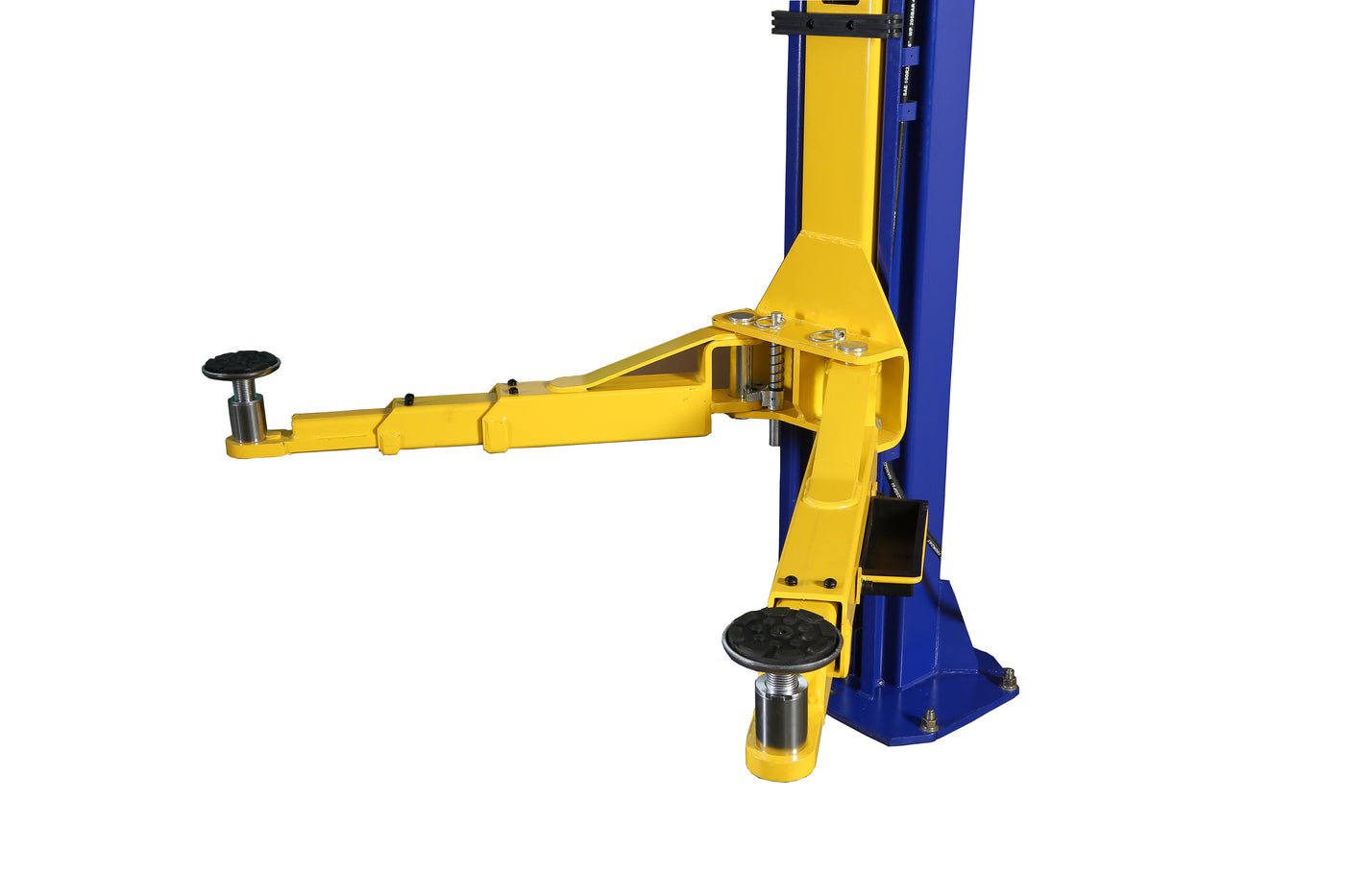

Baseplate two-post rated 10,000 lb, standing just 113⅝ inches overall for low ceilings, with combo symmetric/asymmetric arms and an 81-inch lift.

The "Squeeze" Factor

This is the most critical section for the HW-10KBP-A.

DRIVE-THROUGH WIDTH 100.00"
CLEARANCE HEIGHT 114"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: 8.0" per side
The Result:

It fits comfortably with plenty of clearance on each side.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Low-ceiling friendly

At 113⅝ inches it fits where overhead lifts won’t — still measure yours. Anchors into at least four inches of cured concrete. See our best 2-post lifts guide.

APlusLift 10 ($2,099) vs. Challenger VLE10 ($5,733)

Save $3,633.56 with the Plus

FeatureAPLUSLIFT 10CHALLENGER VLE10
Lifting Capacity 10,000 lbs 10,000 lbs
Power 220V 208V / 230V
Warranty 3 Year Warranty Not specified

The Lab Take:

The Plus offers solid value and will handle most home garage needs. You will save $3,633.56 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the Challenger.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

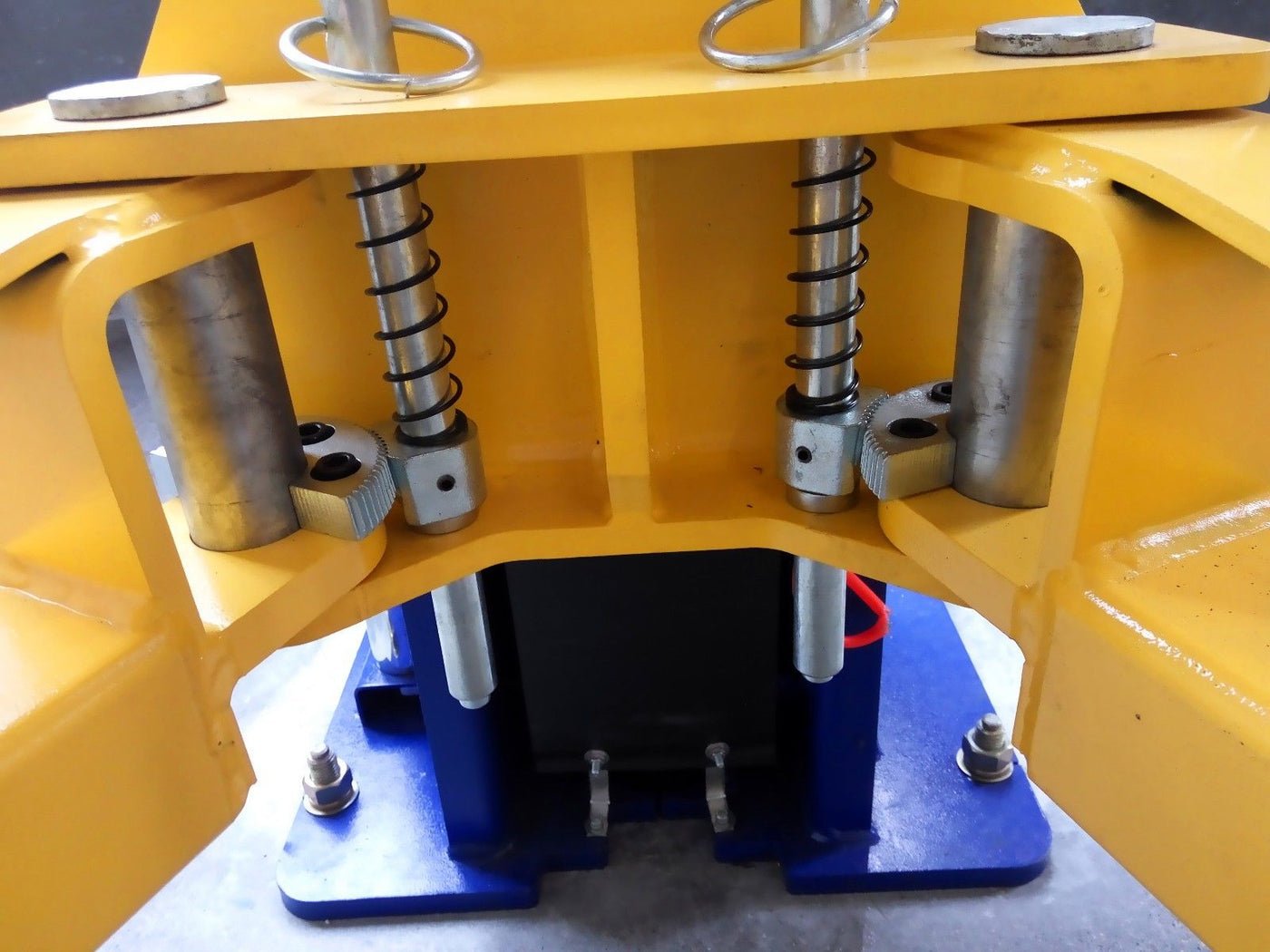

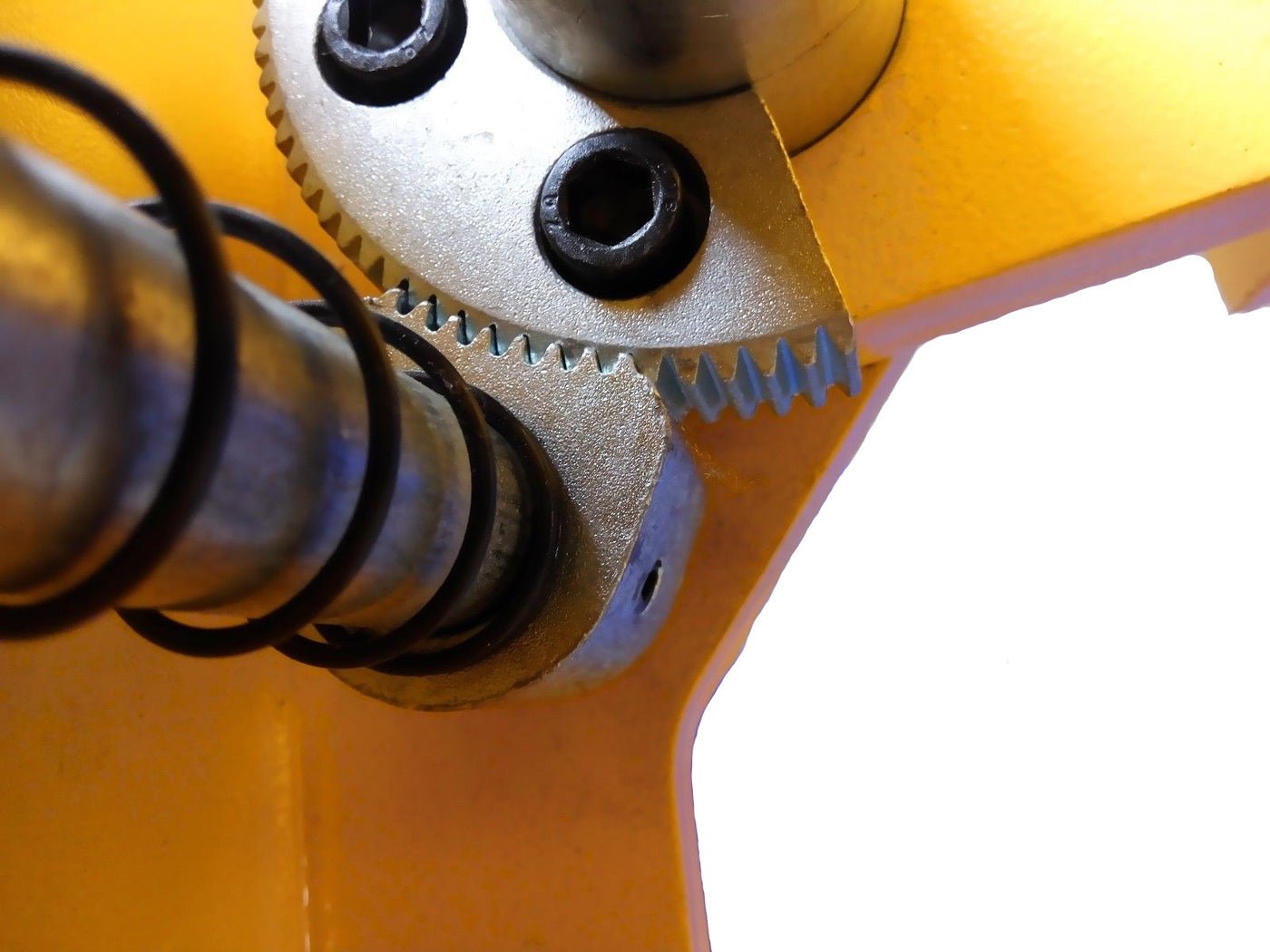

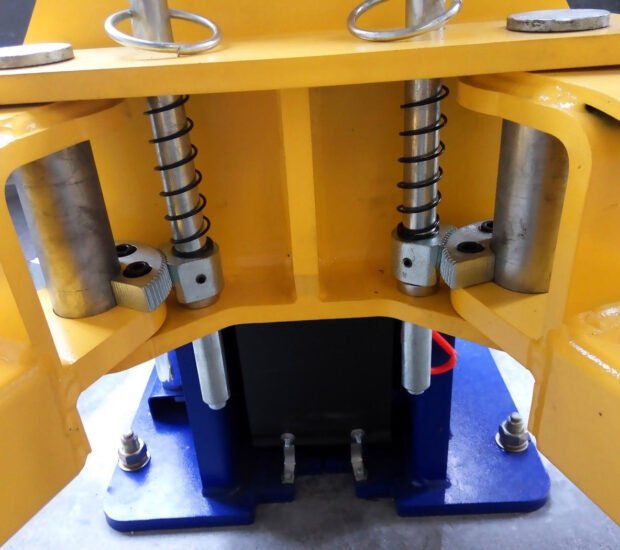

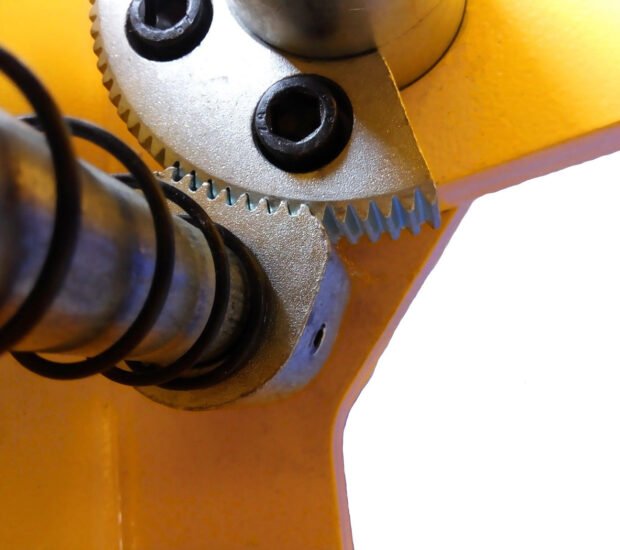

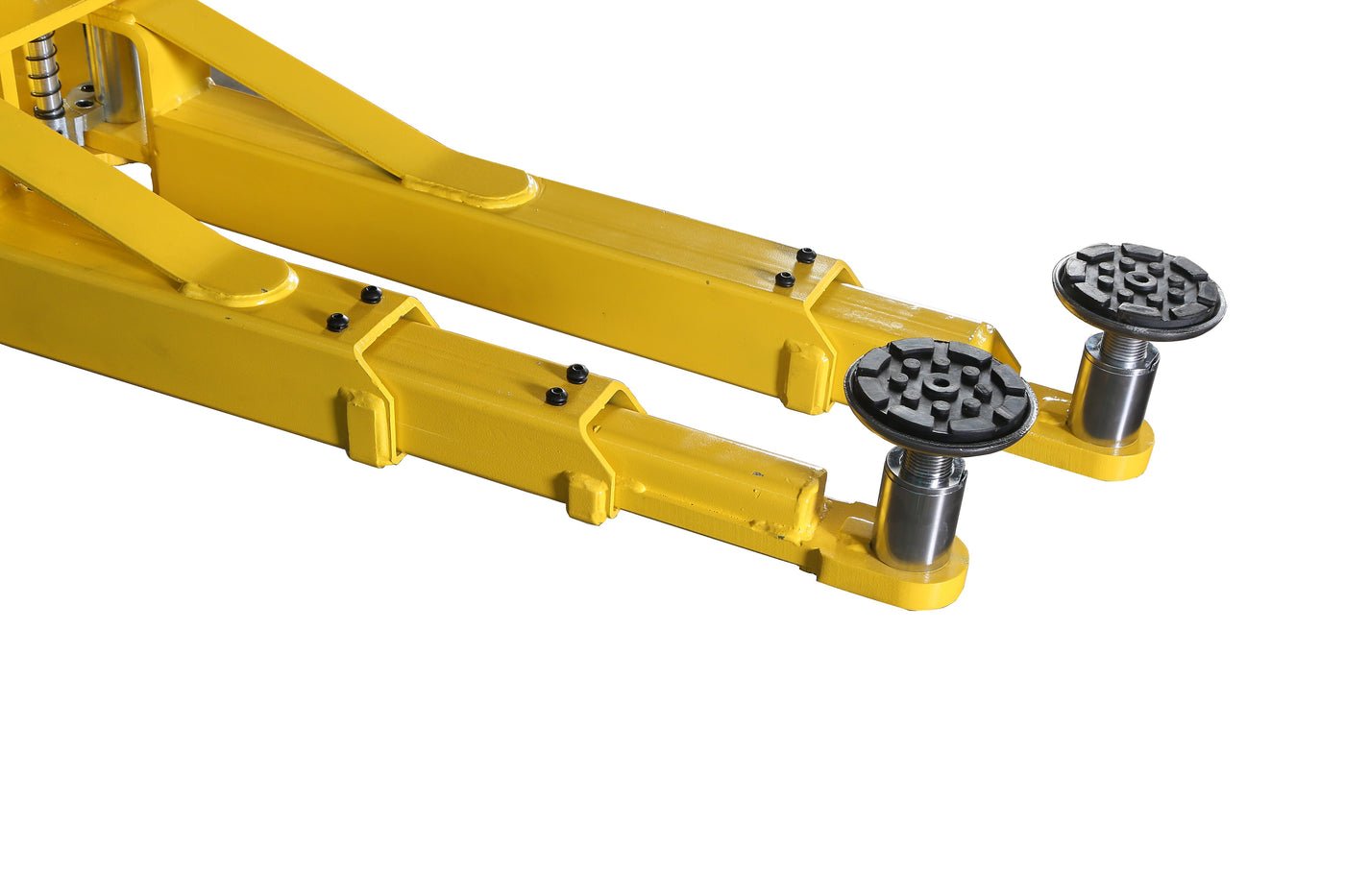

Check the Arm Restraints. When the lift is raised, the gears on the arms should lock so they cannot swing. If they slip, adjust the spring tension immediately. Inspect lifting pads for wear.

Monthly

Check the Equalizer Cables. These are the thin cables running across the floor (or overhead). They sync the two carriages. They should be tight like a guitar string. Lubricate the carriage slides.

Yearly

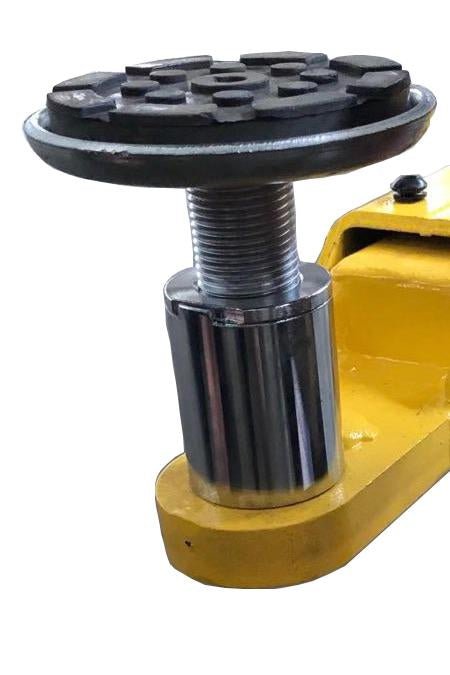

Inspect the rubber lifting pads. If the metal is showing through the rubber, replace the pads. Metal-on-metal contact can slip. Check hydraulic hoses, seals, and anchor bolts. Verify column alignment.

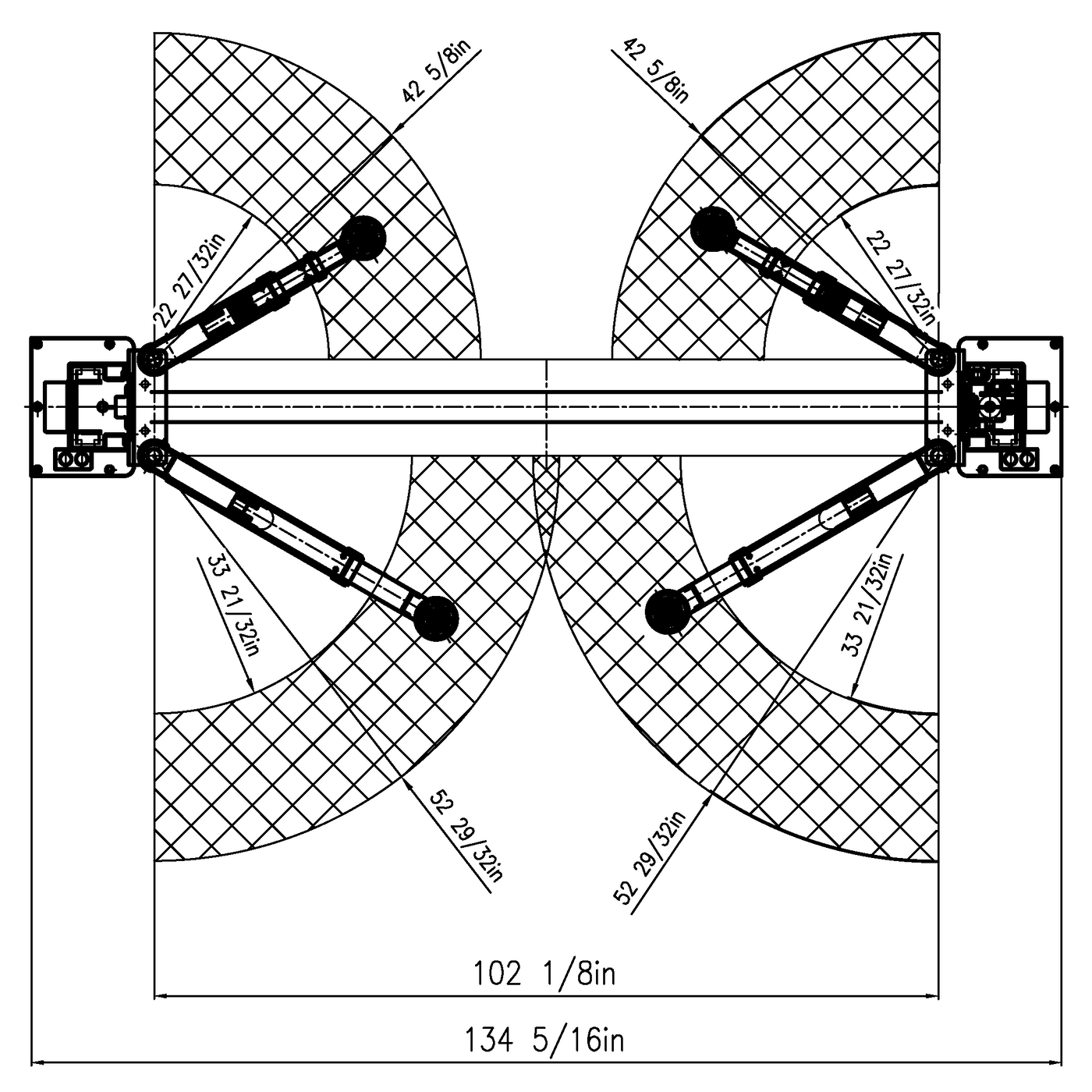

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

10000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

134.31”

Measure from garage door to back wall

Overall Width

134.31”

Fits in standard single car bay

Drive-Through Width

100”

Restrictive – tight for wide vehicles

Max Rise Height

81”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

50 Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

6” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide

Customer Builds

Real installations from real garages

Customer Install #1

Customer Install #2

Customer Install #3
