AMGO® Hydraulics 409-HP Parking & Service 4 Post Lift 9,000 Lbs
Model: 409-HP
Key Specifications
9000 lbs
Capacity
54 Sec
Rise Time
110V / 220V
Power
85”
Max Rise
$4645.00
– Ships in 2-3 Business Days
Fitment Check
126.25”
Narrow Bay Compatible
”
Standard Garage Depth
4”
Depth @ 3000 PSI
94.62”
For SUV parking below
Product Description:
The Lab Verdict
Executive Summary
78
/100
The Verdict:

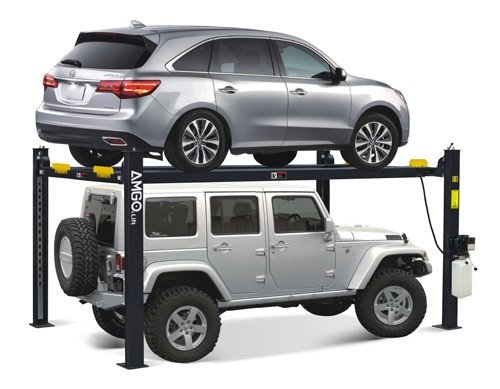

The AMGO 409-HP is a 9,000-lb four-post parking-and-service lift — and it lifts high (88 inches) with wide 42-inch runways, so it works as both a service lift and a comfortable second parking space. It runs on a standard 110V outlet, and at 238 inches long (with ramps) it fits cars, SUVs, and light trucks. Drive-on with no arms to set, and stable enough to store a vehicle on.
- Homeowners wanting to double their garage parking capacity
- Car collectors who need to stack vehicles for storage
- DIY enthusiasts who perform oil changes and basic maintenance
- Anyone who wants the safest, easiest-to-use lift type
- Owners of full-size trucks and SUVs
- Users who need to do wheel-off suspension work (unless you buy bridge jacks)
- Anyone without at least 4″ of cured concrete
Engineering Analysis
The “Deep Dive”
Hydraulics & Rise Time

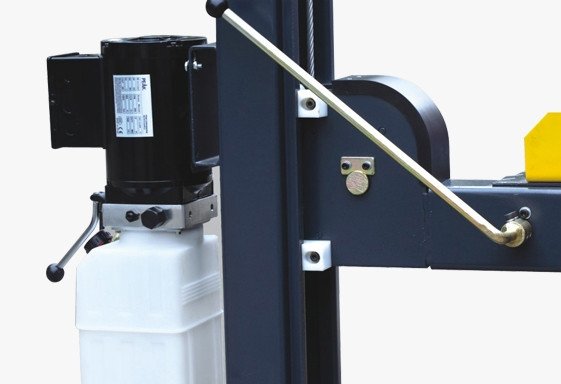

A 1.0HP, 110V power unit raises both wide runways together on equalized cables — no special wiring needed.

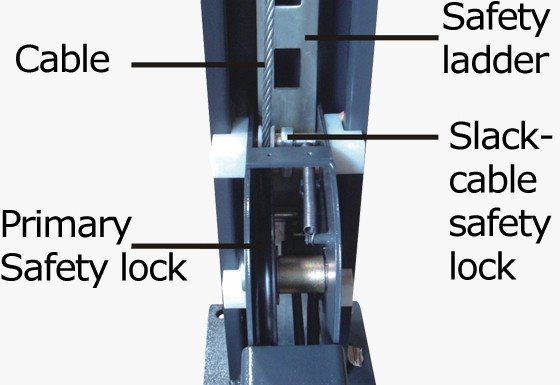

Safety Lock System
Multiple mechanical lock positions hold the runways on steel stops at height, backed by AMGO’s 5-3-2 warranty.
Structural Integrity
Four-post parking-and-service lift rated 9,000 lb, 88 1/16-inch lifting height, 96⅝-inch overall height, 109 5/16 inches wide, 238⅛ inches long with ramps, wide 42⅜-inch runways.
Complete Technical Specifications
Specification | Value | Note |
|---|---|---|
Lifting Capacity | 9000 Ibs | Good for: Light Duty Trucks, SUVs, Sedans |
Overall Length | 126.25” | Measure from garage door to back wall |
Overall Width | 126.25” | Fits in standard single car bay |
Drive-Through Width | 112.5984252” | Restrictive – tight for wide vehicles |
Max Rise Height | 85” | For car stacking calculations |
Motor | ” | Requires 30 Amp Breaker – NOT 110V compatible |
Rise Time | 54 Sec | Slower than 2-post lifts (30-40 sec) |
Concrete Req. | 4” Min Depth | Standard Residential Slab is usually 4″ |
Concrete PSI | 3000PSI | Must be fully cured (28 days minimum) |
Customer Builds
Real installations from real garages
