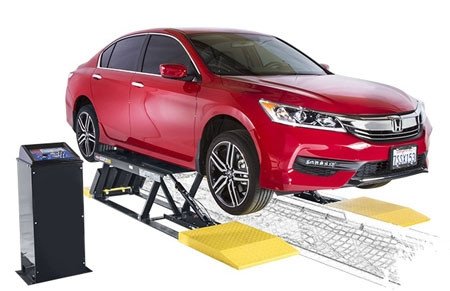

BendPak P9000LT Low-Rise, Open-Center Pit-Style ALI Lift 9,000 Lb.

Model: BENDPAKP-9000LT

Key Specifications

9000 lbs

Capacity

55 Sec

Rise Time

1.5 HP / 208-230 VAC / 60 Hz / 1 Ph

Power

27.00787402”

Max Rise

$6995.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

Total Width

”

Narrow Bay Compatible

Total Length

124.6”

Standard Garage Depth

Min. Concrete

4”

Depth @ 3000 PSI

Min. Ceiling

22.00787402”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

/100

The Verdict:

The BendPak BENDPAKP-9000LT is a 9,000-lb capacity scissor/low-rise lift designed for quick wheel service and alignment work. Scissor lifts require minimal ceiling height and are portable, making them perfect for home garages or mobile service operations.
  • Who Should Buy It:
  • Mobile mechanics and tire shops
  • Home users with low ceiling heights
  • Anyone doing primarily wheel and tire service
  • Users who need a portable lift solution
  • Who Should Skip It:
  • Users who need to do full undercarriage work
  • Anyone who needs to raise vehicles to standing height
  • Shops that service heavy trucks or commercial vehicles
  • ⚠️ Lab Note:
This unit requires a 220V/230V connection. Most homes do not have this outlet in the garage. You may need an electrician to install a dedicated circuit.

Engineering Analysis

The “Deep Dive”

Hydraulics & Rise Time

Driven by a heavy-duty electric-hydraulic power unit designed for reliability and longevity. The system utilizes high-pressure cylinders with integrated safety valves to prevent rapid descent, ensuring smooth operation and precise positioning at every locking height.

Safety Lock System

Engineered with a multi-position mechanical safety lock system that allows the lift to be parked securely at various working heights, relieving hydraulic pressure for long-term safety and stability.

Structural Integrity

Built to handle heavy-duty cycles, the frame is constructed from high-tensile, heavy-gauge steel. The entire structure is finished with a durable, weather-resistant powder coating that resists rust, chemicals, and chipping far better than standard paint. All cables, sheaves, and chains are rated to exceed the lift’s maximum capacity, ensuring a safety factor well above industry requirements.

The "Squeeze" Factor

This is the most critical section for the BendPakP-9000LT.

DRIVE-THROUGH WIDTH Check with manufacturer
CLEARANCE HEIGHT 22"

Drive-through width data is not available for this lift. Please verify fitment specifications with the manufacturer before purchasing.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Installation Reality: Simple Setup

Scissor lifts are among the easiest to install. Most are portable and do not require floor anchoring. Simply ensure your floor is level and you have adequate power supply.

BendPak P9000LT ($6,995) vs. AMGO ® ($5,655)

Why pay $1,340.00 more for the BendPak?

Feature BENDPAK P9000LT AMGO ®
Lifting Capacity 9,000 lbs 7,000 lbs
Power 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph 2.0HP

The Lab Take:

If this is for a commercial shop where liability is key, or if you are parking a $100k car underneath, buy the BendPak. The build quality and brand reputation justify the premium.

If you are storing a daily driver and budget is tight, the AMGO will get the job done, but expect some compromises on fit and finish.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

Inspect the hydraulic cylinder for leaks. Check that all safety locks engage properly. Wipe down the platform and check for debris in the scissor mechanism.

Monthly

Lubricate pivot points. Check fluid levels. Inspect hydraulic lines for wear or damage. Test safety features and limit switches.

Yearly

Full hydraulic system inspection. Replace hydraulic fluid if discolored. Check all pivot pins for wear. Inspect platform surface for damage or warping.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

9000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

Overall Length

”

Measure from garage door to back wall

Overall Width

”

Fits in standard single car bay

Drive-Through Width

”

Restrictive – tight for wide vehicles

Max Rise Height

27.00787402”

For car stacking calculations

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

55 Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

4” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

3000PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide
