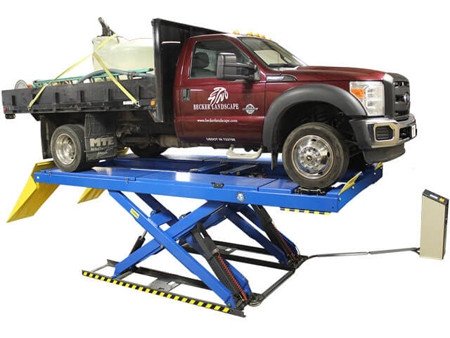

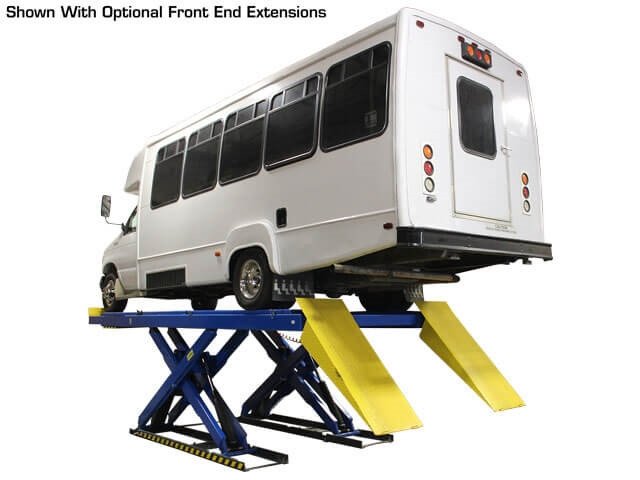

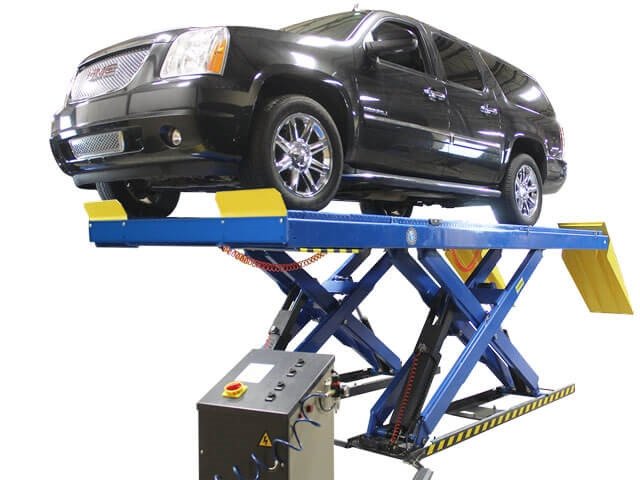

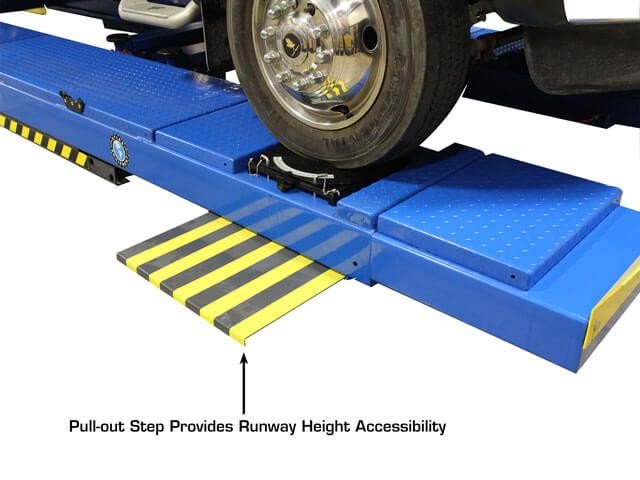

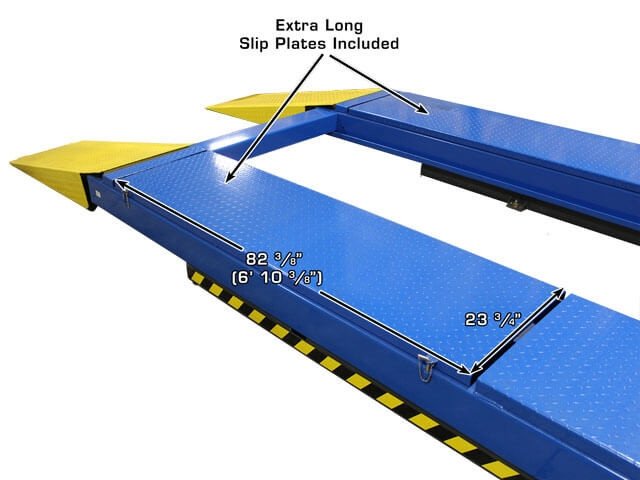

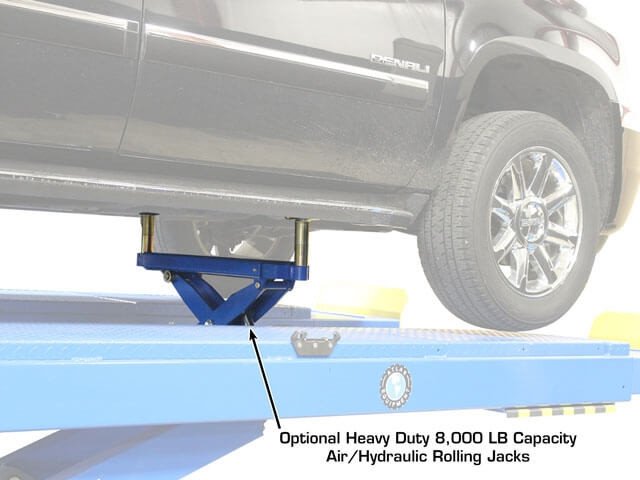

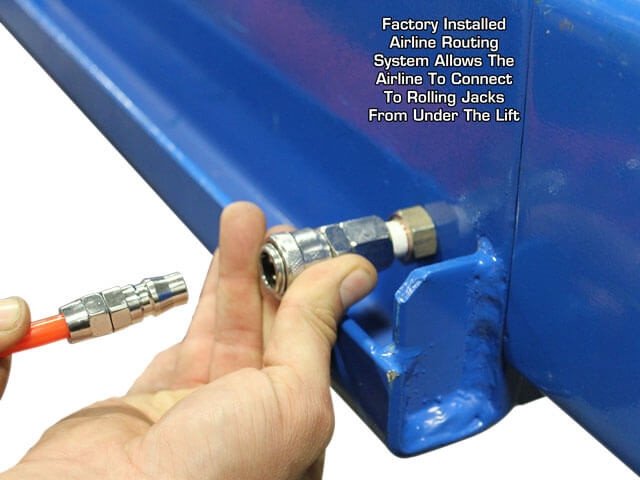

Atlas® PX16A Ex-Long Alignment Scissor Lift 16,000 Lbs

Model: ATPK-PX16A-CF

Key Specifications

16000 lbs

Capacity

Sec

Rise Time

4 HP 220 volt +/- 5% (209-231volts) 1 phase30 amp breaker is required.

Power

”

Max Rise

$21499.00

  • Free Freight Shipping (Lower 48)

instock

– Ships in 2-3 Business Days

  • Verified Concrete Specs Included
  • Official Warranty

Fitment Check

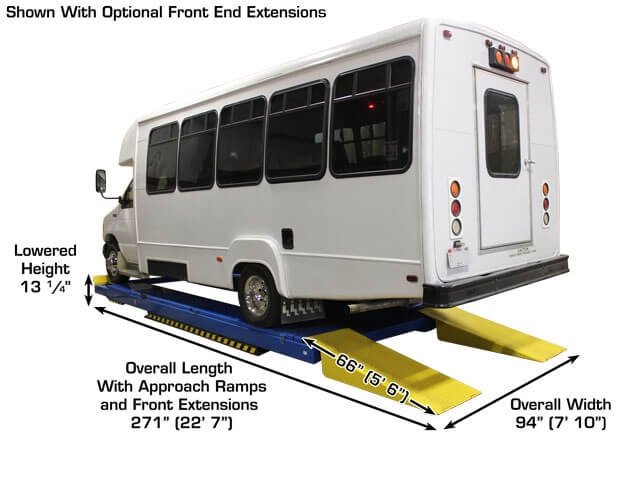

Total Width

94”

Narrow Bay Compatible

Total Length

6656”

Standard Garage Depth

Min. Concrete

4”

Depth @ 3000 PSI

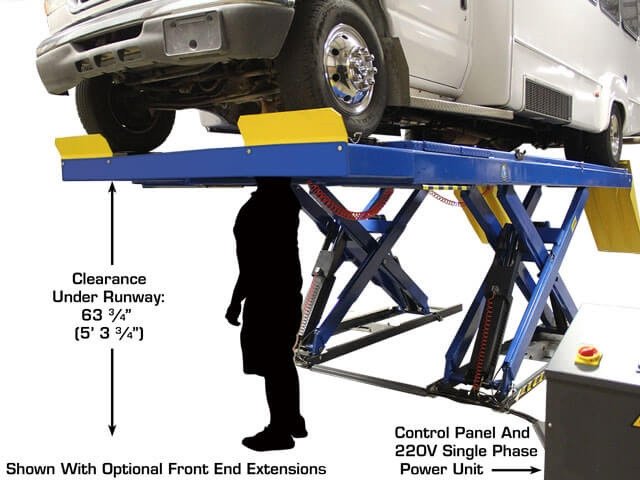

Min. Ceiling

71”

For SUV parking below

Product Description:

The Lab Verdict

Executive Summary

/100

The Verdict:

The Atlas ATPK-PX16A-CF is a 16,000-lb capacity scissor/low-rise lift designed for quick wheel service and alignment work. Scissor lifts require minimal ceiling height and are portable, making them perfect for home garages or mobile service operations.
  • Who Should Buy It:
  • Mobile mechanics and tire shops
  • Home users with low ceiling heights
  • Anyone doing primarily wheel and tire service
  • Users who need a portable lift solution
  • Who Should Skip It:
  • Users who need to do full undercarriage work
  • Anyone who needs to raise vehicles to standing height
  • Shops that service heavy trucks or commercial vehicles
  • ⚠️ Lab Note:
This unit requires a 220V/230V connection. Most homes do not have this outlet in the garage. You may need an electrician to install a dedicated circuit.

Engineering Analysis

The “Deep Dive”

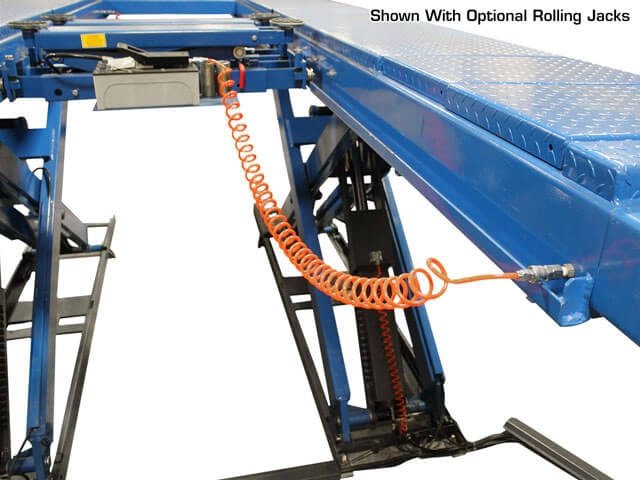

Hydraulics & Rise Time

Driven by a heavy-duty electric-hydraulic power unit designed for reliability and longevity. The system utilizes high-pressure cylinders with integrated safety valves to prevent rapid descent, ensuring smooth operation and precise positioning at every locking height.

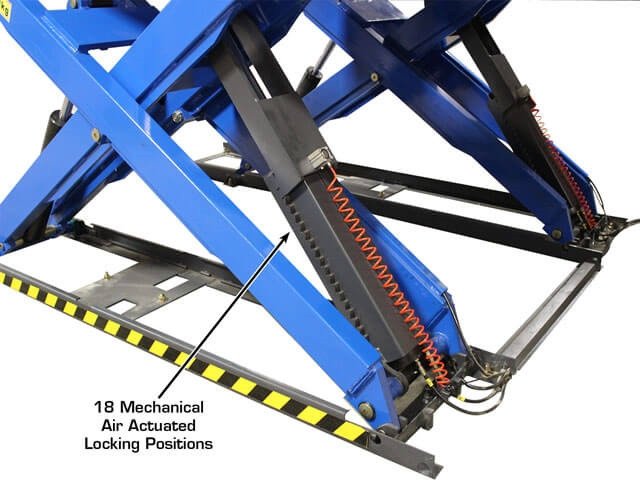

Safety Lock System

Engineered with a multi-position mechanical safety lock system that allows the lift to be parked securely at various working heights, relieving hydraulic pressure for long-term safety and stability.

Structural Integrity

Built to handle heavy-duty cycles, the frame is constructed from high-tensile, heavy-gauge steel. The entire structure is finished with a durable, weather-resistant powder coating that resists rust, chemicals, and chipping far better than standard paint. All cables, sheaves, and chains are rated to exceed the lift’s maximum capacity, ensuring a safety factor well above industry requirements.

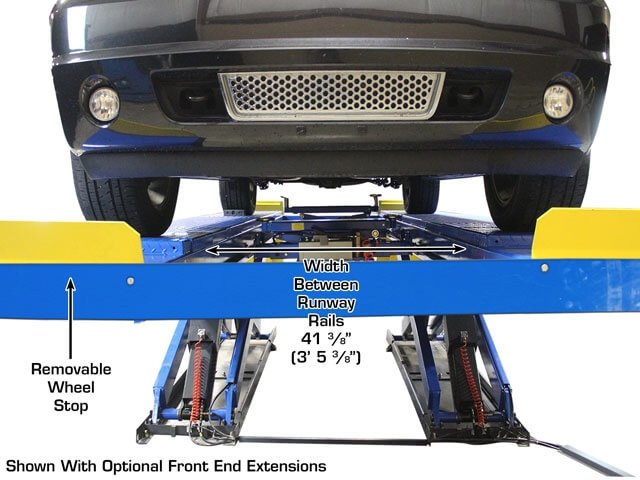

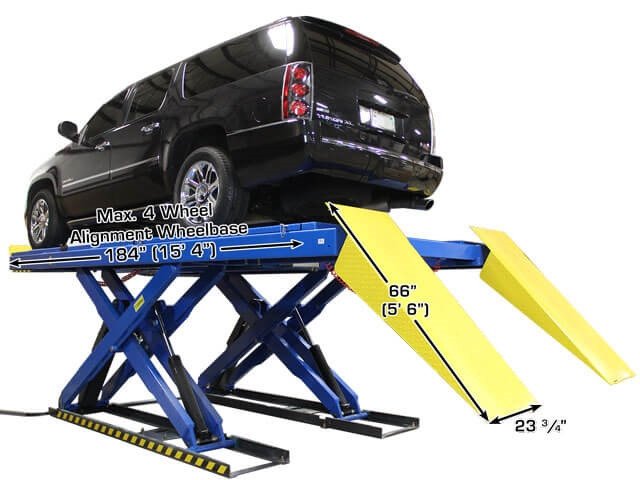

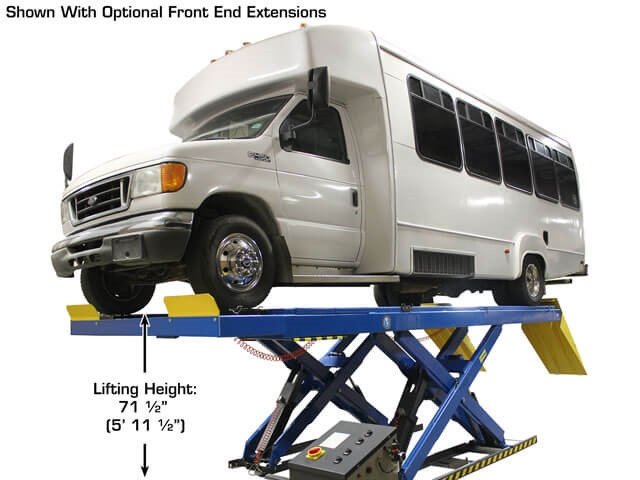

The "Squeeze" Factor

This is the most critical section for the ATPK-PX16A-CF.

DRIVE-THROUGH WIDTH 74.00"
CLEARANCE HEIGHT 71"

Let's do the math on a real-world scenario: 2023 Chevrolet Corvette.

Corvette Width (Mirrors Out): ~84"
Clearance: -5.1" per side
The Result:

It does not fit. This vehicle is too wide for this lift.

Ceiling Math

To stack two cars, you need:

Car A Height + Car B Height + 10" (Runway + Clearance)

Example: 2020 Mustang (55") + 1969 Camaro (51") + 10" = 116 inches (9.6 feet)

If your ceiling is 9 feet (108"), you CANNOT stack these two cars with this lift. You would need a "Low Profile" modification or shorter cars.

Installation Reality: Simple Setup

Scissor lifts are among the easiest to install. Most are portable and do not require floor anchoring. Simply ensure your floor is level and you have adequate power supply.

Atlas ® ($21,499) vs. BendPak Open ($7,395)

Why pay $14,104.00 more for the Atlas?

Feature ATLAS ® BENDPAK OPEN
Lifting Capacity 16,000 lbs 9,000 lbs
Power 4 HP 220 volt +/- 5% (209-231volts) 1 phase30 amp breaker is required. 110/220

The Lab Take:

The Atlas offers solid value and will handle most home garage needs. You will save -$14,104.00 compared to the premium option.

If you want the peace of mind that comes with a name brand, better warranty support, and higher resale value, consider upgrading to the BendPak.

Year 1 Maintenance Schedule

Owning a lift is like owning a car. You can’t just install it and ignore it.

Weekly

Inspect the hydraulic cylinder for leaks. Check that all safety locks engage properly. Wipe down the platform and check for debris in the scissor mechanism.

Monthly

Lubricate pivot points. Check fluid levels. Inspect hydraulic lines for wear or damage. Test safety features and limit switches.

Yearly

Full hydraulic system inspection. Replace hydraulic fluid if discolored. Check all pivot pins for wear. Inspect platform surface for damage or warping.

Complete Technical Specifications

Specification

Value

Note

Lifting Capacity

16000 Ibs

Good for: Light Duty Trucks, SUVs, Sedans

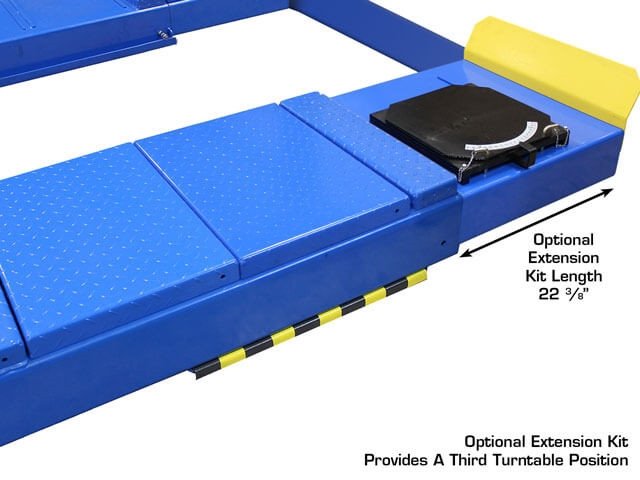

Overall Length

94”

Measure from garage door to back wall

Overall Width

94”

Fits in standard single car bay

Drive-Through Width

74”

Restrictive – tight for wide vehicles

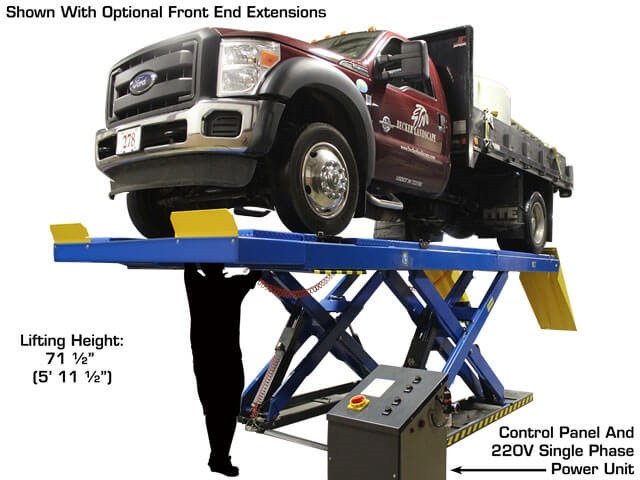

Max Rise Height

”

For car stacking calculations

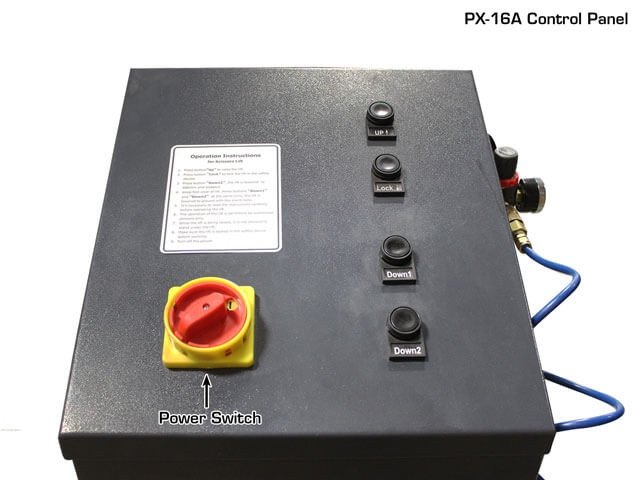

Motor

”

Requires 30 Amp Breaker – NOT 110V compatible

Rise Time

Sec

Slower than 2-post lifts (30-40 sec)

Concrete Req.

4” Min Depth

Standard Residential Slab is usually 4″

Concrete PSI

PSI

Must be fully cured (28 days minimum)

Download Full Spec Sheet (PDF)

Complete dimensions & anchor placement

Installation Manual (PDF)

Step-by-step assembly guide

Customer Builds

Real installations from real garages

Customer Install #1

Customer Install #2

Customer Install #3
